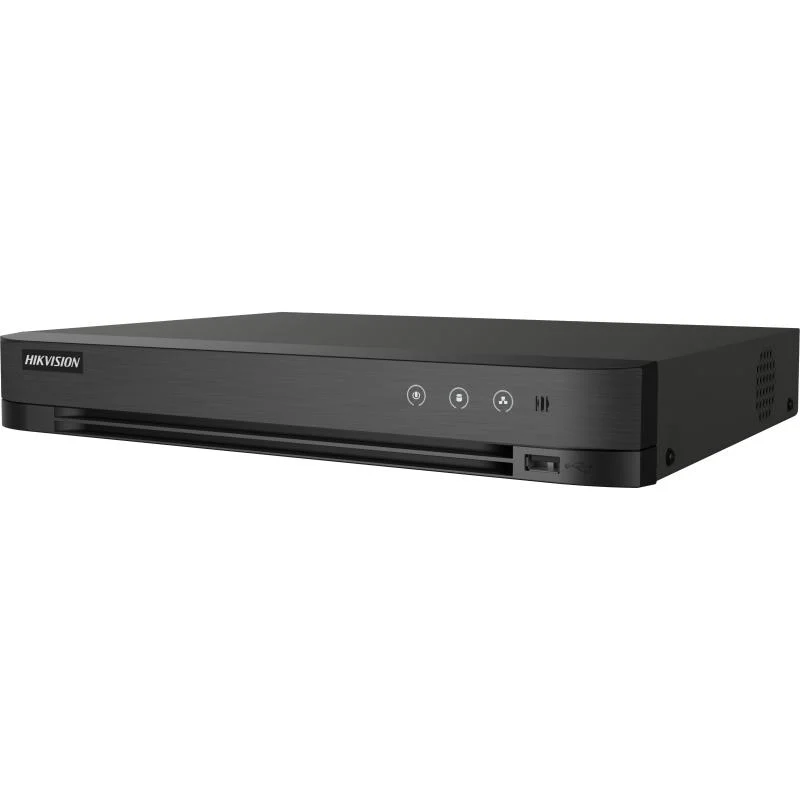

Hikvision iDS-7208HQHI-M1/XT AcuSense DVR

Hikvision iDS-7208HQHI-M1/XT AcuSense DVR provides advanced intelligent surveillance with deep learning features and efficient compression. This versatile 1U recorder suits medium-sized installations needing accurate detection, facial recognition options, and seamless remote access.

Hikvision iDS-7208HQHI-M1/XT AcuSense DVR Use Cases

The Hikvision iDS-7208HQHI-M1/XT AcuSense DVR excels in varied settings. Larger homes use it for perimeter and interior coverage. Retail stores deploy it across sales areas, entrances, and storage. Offices apply it to workspaces, receptions, and parking zones. Small factories install it for production floors and loading areas.

Eight analog channels deliver comprehensive monitoring. Users cover multiple critical points effectively. Medium businesses benefit from enhanced security features.

Hybrid design facilitates mixed camera systems. Installers integrate legacy analog with modern IP cameras. This supports cost-effective expansions.

Two-way audio over coaxial enables direct communication. Staff interact with visitors or deter intruders instantly.

Hikvision iDS-7208HQHI-M1/XT AcuSense DVR Compatibility

The Hikvision iDS-7208HQHI-M1/XT AcuSense DVR supports five signal types. It handles HDTVI, AHD, HDCVI, CVBS analog cameras, and IP cameras up to 6 MP.

Default configuration adds four IP channels. Enhanced mode expands to twelve channels.

All analog channels transmit audio via coaxial cables. Compatible cameras provide clear sound without extra wiring.

Remote access integrates with the Hik-Connect app. Users view live feeds and playback on mobile devices from anywhere.

Wi-Fi connectivity works through USB dongle. This option fits locations without Ethernet.

Hikvision iDS-7208HQHI-M1/XT AcuSense DVR Key Advantages

Motion Detection 2.0 applies deep learning across all channels. It classifies humans and vehicles precisely. False alarms from environmental factors reduce greatly.

Choose between 2-channel facial recognition or 4-channel perimeter protection. Facial libraries hold up to 16 groups.

AcuSearch technology speeds event retrieval on four channels.

H.265 Pro+ compression extends recording duration. Users maximize storage on single drives.

The 1U chassis fits standard racks. HDMI and VGA outputs support simultaneous connection.

Technical Specifications

Video and Audio

• Analog Video Input: 8-ch BNC (1.0 Vp-p, 75 Ω), supports coaxitron
• HDTVI Input: Up to 5 MP@20 fps, 4 MP@30 fps, 1080p@30 fps, 720p@30 fps
• AHD/HDCVI Input: Similar high resolutions supported
• CVBS Input: PAL/NTSC
• IP Video Input: 4-ch default (up to 12-ch enhanced), up to 6 MP
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution: Up to 3K lite/5 MP lite
• Audio Input: 1-ch RCA (up to 8-ch optional) + 8-ch via coaxial
• Audio Output: 1-ch RCA
• Two-Way Audio: Supported

Recording and Playback

• Recording Frame Rate: Up to 12 fps for 3K/5 MP lite
• Synchronous Playback: 8-ch
• Smart Search: Human/vehicle and face events

Smart Functions

• Motion Detection 2.0: All analog channels (human/vehicle)
• Facial Recognition: 2-ch comparison
• Perimeter Protection: Up to 4-ch (alternative mode)

Network

• Network Interface: 1 × RJ45 10/100 Mbps
• Total Bandwidth: 96 Mbps
• Remote Connections: Up to 64 users
• Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, HTTPS, ONVIF

Storage

• SATA Interface: 1 × SATA
• Capacity: Up to 10 TB per disk

Interface

• Video Output: 1-ch HDMI + 1-ch VGA (simultaneous) + 1-ch CVBS
• USB Interface: 2 × USB 2.0

General

• Power Supply: 12 VDC, 1.5 A
• Consumption: ≤ 18 W (without HDD)
• Working Temperature: -10 °C to +55 °C
• Dimensions (W × D × H): 319 × 236 × 48 mm
• Weight: ≤ 1.78 kg (without HDD)

Trust and Support

Threeways Gadget Hub stocks authentic Hikvision products from official distributors. Every unit includes the complete manufacturer warranty. Our Nairobi specialists provide installation advice, configuration assistance, and dedicated after-sales support. Nationwide delivery reaches customers quickly. Explore our main website for service information.
