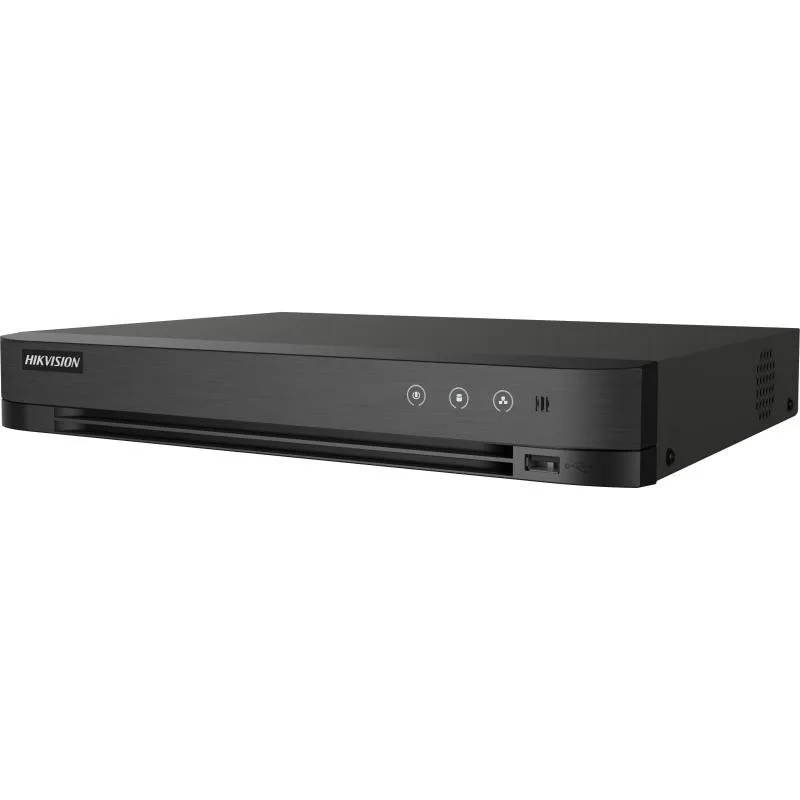

Hikvision iDS-7208HQHI-M1/FA AcuSense DVR

Hikvision iDS-7208HQHI-M1/FA AcuSense DVR
Hikvision iDS-7208HQHI-M1/FA AcuSense DVR offers advanced intelligent surveillance with facial recognition and deep learning detection. This robust 1U recorder suits medium installations requiring precise alerts, face matching capabilities, and optimized storage efficiency.

Hikvision iDS-7208HQHI-M1/FA AcuSense DVR Use Cases
The Hikvision iDS-7208HQHI-M1/FA AcuSense DVR thrives in access-sensitive environments. Residential complexes use it for gate and entrance monitoring. Commercial offices deploy it across lobbies, hallways, and parking areas. Retail outlets apply it to customer service desks and entry points. Educational institutions install it in administrative blocks and perimeters.
Eight analog channels ensure solid coverage. Users protect multiple zones comprehensively. Medium sites gain enhanced intelligence without complexity.
Hybrid functionality supports diverse camera mixes. Installers integrate existing analog with IP cameras smoothly. This enables phased upgrades economically.
Facial recognition strengthens identity verification. Users manage authorized personnel lists effectively.

Hikvision iDS-7208HQHI-M1/FA AcuSense DVR Compatibility
The Hikvision iDS-7208HQHI-M1/FA AcuSense DVR accommodates five signal inputs. It processes HDTVI, AHD, HDCVI, CVBS analog cameras, and IP cameras up to 6 MP.
Default adds two IP channels. Enhanced mode expands to twelve channels.
All analog channels support audio over coaxial cables. Compatible cameras deliver integrated sound transmission.
Remote access connects via the Hik-Connect app. Users monitor live views and recordings remotely.
Wi-Fi integration works with compatible USB dongles. This suits wireless network setups.

Hikvision iDS-7208HQHI-M1/FA AcuSense DVR Key Advantages
AcuSense Motion Detection 2.0 classifies humans and vehicles across channels. It minimizes false alarms from non-threat movements.
Facial recognition performs picture comparison on one channel. It supports stranger alerts and access control.
Face libraries store up to 500 pictures in 16 groups. Management remains straightforward.
Perimeter protection offers line crossing and intrusion detection. Choose between face or perimeter modes.
H.265 Pro+ compression reduces storage demands. Users extend recording times significantly.
The 1U form factor fits standard enclosures. HDMI and VGA outputs enable simultaneous display.
Smart search accelerates event location by face or object.

Technical Specifications
Video and Audio

Analog Video Input: 8-ch BNC (1.0 Vp-p, 75 Ω), supports coaxitron
HDTVI Input: Up to 5 MP@20 fps, 4 MP@30 fps, 3K lite, 1080p@30 fps, 720p@30 fps
AHD/HDCVI Input: Similar resolutions supported
CVBS Input: PAL/NTSC
IP Video Input: 2-ch default (up to 12-ch enhanced), up to 6 MP
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: Up to 3K lite/5 MP lite/4 MP lite
Audio Input: 1-ch RCA (up to 8-ch optional) + 8-ch via coaxial
Audio Output: 1-ch RCA
Two-Way Audio: Supported via RCA

Recording and Playback

Recording Frame Rate: Up to 12 fps for 3K/5 MP lite
Synchronous Playback: 8-ch
Smart Search: By face/human/vehicle

Smart Functions

Motion Detection 2.0: All analog channels (human/vehicle)
Facial Recognition: 1-ch picture comparison
Face Picture Library: Up to 16 libraries, 500 pictures total
Perimeter Protection: Up to 4-ch (mutually exclusive with facial)

Network

Network Interface: 1 × RJ45 10/100 Mbps
Total Bandwidth: 96 Mbps
Remote Connections: Up to 64 users
Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, HTTPS, ONVIF

Storage

SATA Interface: 1 × SATA
Capacity: Up to 10 TB per disk

Interface

Video Output: 1-ch HDMI + 1-ch VGA (simultaneous) + 1-ch CVBS
USB Interface: Front 1 × USB 2.0, Rear 1 × USB 2.0

General

Power Supply: 12 VDC, 1.5 A
Consumption: ≤ 18 W (without HDD)
Working Temperature: -10 °C to +55 °C
Dimensions (W × D × H): 315 × 242 × 45 mm
Weight: ≤ 1.78 kg (without HDD)

Trust and Support
Threeways Gadget Hub provides only genuine Hikvision products from authorized distributors. Each unit includes the official manufacturer warranty. Our Nairobi team delivers expert installation guidance, system configuration, and reliable after-sales support. Nationwide delivery ensures quick service. Visit our main website for full details.
