Hikvision DS-PS1-R Wired Sounder

Hikvision DS-PS1-R Wired Sounder

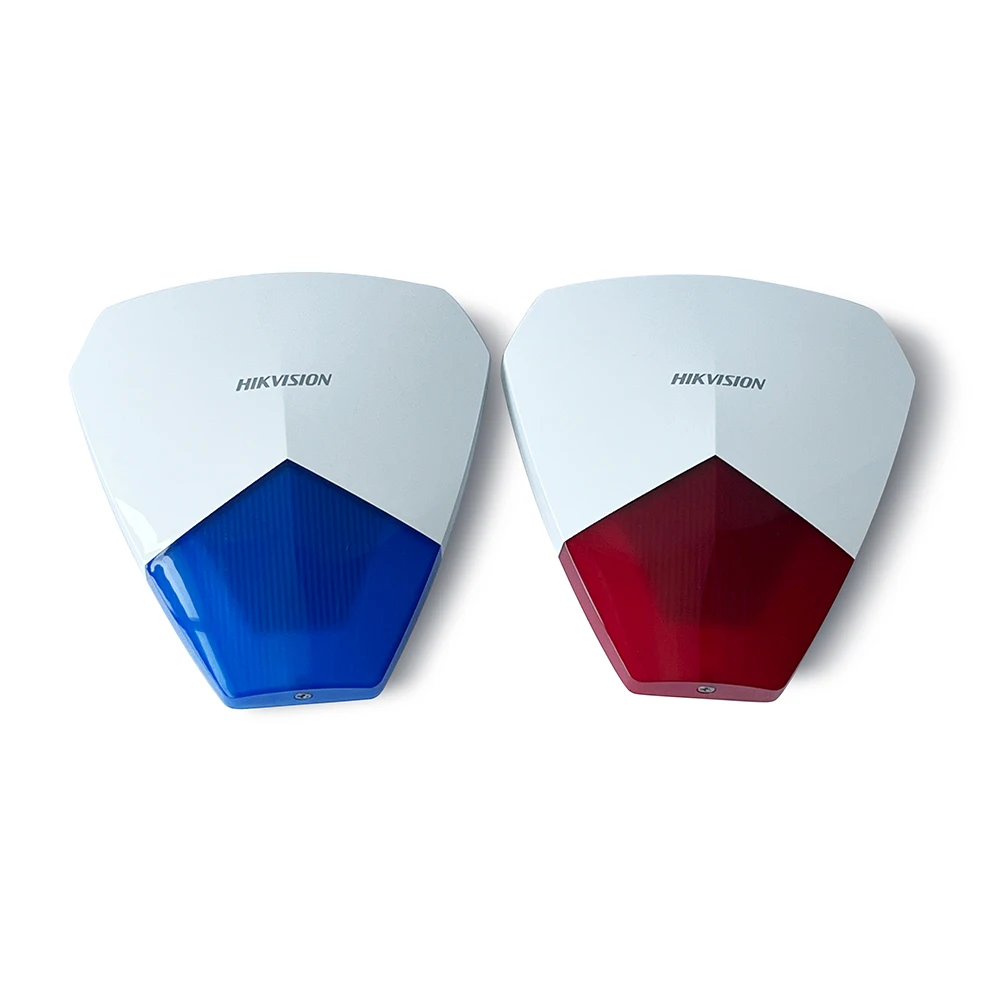

Hikvision DS-PS1-R Wired Sounder delivers powerful audible alerts for intrusion and fire alarm systems. This indoor wired siren produces high-volume warning tones. It suits residential homes, offices, shops, and small commercial buildings in Nairobi and Kenya. Security teams ensure quick notification of triggered events. The sounder provides reliable performance with easy installation.
The device features a loud 105 dB output. It supports multiple tone patterns. Red strobe light enhances visual warning. Tamper protection detects unauthorized removal. The sounder integrates seamlessly with Hikvision alarm panels.

Use Cases and Compatibility
This wired sounder fits various alarm applications. In homes, place it near entrances to alert residents of intrusions. Offices use it to warn staff during unauthorized access. Retail shops deter thieves with loud sirens. Small warehouses secure loading areas. Schools and clinics enhance fire evacuation signals.
The DS-PS1-R connects directly to alarm control panels via wired terminals. Compatible with Hikvision wired alarm panels including DS-PHA48-EP, DS-PWA48, DS-PWA96, DS-PWA32, and DS-PWA96-M. Supports both burglary and fire alarm triggering. Works with panels that provide 12 VDC siren output. Use in single or multiple sounder setups. Install indoors on walls or ceilings.
Support arming/disarming feedback tones. Enable different sounds for intrusion vs. fire. Integrate with wired zones for tamper detection. Operate reliably in standard indoor temperatures. Suit new alarm installations or system upgrades.
For reliable alarm accessories in Kenya, visit Threeways Gadget Hub. Check monitors for central monitoring stations.

Technical Specifications
Audio & Visual Parameters

Sound Pressure Level: 105 dB @ 1 m (±3 dB)
Sound Type: Multiple selectable tones
Strobe Light: Red LED flash (visible from distance)
Flash Frequency: Approximately 1 Hz

Electrical Characteristics

Operating Voltage: 10.5–15 VDC (recommended 12 VDC)
Current Consumption: – Standby: ≤ 15 mA – Alarm: ≤ 350 mA
Power Supply: From alarm control panel

Interfaces

Alarm Control: Wired connection (positive/negative terminals)
Tamper Switch: Yes (front cover removal detection)

General

Shell Material: ABS plastic
Color: White with red strobe
Dimensions: 110 mm × 110 mm × 38 mm (4.33″ × 4.33″ × 1.50″)
Weight: Approx. 180 g (0.4 lb)
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Operating Humidity: 10% to 95% (non-condensing)
Installation: Wall or ceiling mounted
Protection: Tamper-proof design

Key Features

105 dB high-volume siren
Red strobe light for visual alert
Tamper detection switch
Multiple tone patterns
Easy wired connection to alarm panels
Low current consumption in standby

The sounder uses durable housing. It withstands daily use. Clear strobe light improves visibility. Simple wiring reduces installation time.
Discover desktop computers at Threeways Gadget Hub for alarm management.

Reliable Performance and Support
Threeways Gadget Hub supplies genuine Hikvision alarm products to Kenyan clients. The Hikvision DS-PS1-R Wired Sounder includes a manufacturer warranty against defects. Our Nairobi team provides expert support. Receive help with wiring, tone configuration, integration, and troubleshooting. Access prompt assistance for maintenance. Depend on our expertise for effective alarm installations.
Refer to Hikvision’s wired sounders here, alarm products overview here, and security guidelines here.
