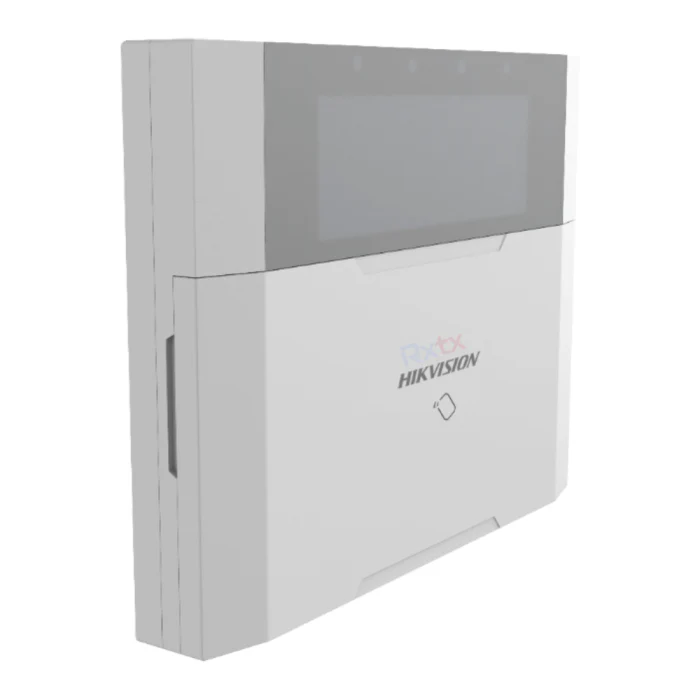

Hikvision DS-PK1-LRT-HWB Wired LCD Keypad

Hikvision DS-PK1-LRT-HWB Wired LCD Keypad
Hikvision DS-PK1-LRT-HWB Wired LCD Keypad offers intuitive control for wired intrusion alarm systems. This keypad features an LCD screen for clear status display. It supports one-touch arming without password entry. Security users in Nairobi and Kenya manage alarms conveniently. The device includes emergency keys for quick response. It integrates built-in tag reader for contactless operation.
The keypad connects via wired bus to compatible panels. It provides visual and audible feedback. Multiple indicators show system status. Onboard inputs and outputs expand functionality. The design ensures reliable daily use in residential and commercial settings.

Use Cases and Compatibility
This keypad suits wired hybrid alarm installations. In homes, arm and disarm the system easily from main entrances. Offices control zones and monitor events centrally. Small businesses secure premises with emergency features. Warehouses manage access during shifts. Retail stores use it for quick status checks.
The DS-PK1-LRT-HWB connects to Hikvision AX Hybrid Pro panels like DS-PHA48-EP and DS-PHA64-LP. It uses wired connection with Speed-X bus support. Include built-in tag reader for up to 64 keyfobs. Add 2 onboard alarm inputs and 1 output for local extensions. Support fire, panic, and medical alarm keys. Display company name, phone number, and time. Work with Hik-Connect app for remote status. Configure via panel or keypad menu. Suit indoor wall mounting in controlled environments.

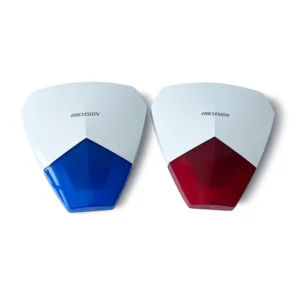

Pair with wired sounders like DS-PS1-R for audible alerts. Integrate with wireless peripherals via panel. Use in new systems or upgrades. Ensure proper wiring for tamper detection.
For dependable alarm keypads in Kenya, visit Threeways Gadget Hub. Check monitors for central management.

Technical Specifications
Display and Indicators

Screen: LCD display
Indicators: 4 status LEDs (Power: Green, Fault/Alert: Orange, Armed: Blue, Alarm: Red)
Backlight: Keypad buttons (White)

Hardware Features

Tag Reader: Built-in (supports up to 64 keyfobs)
Onboard Inputs: 2 alarm inputs
Onboard Outputs: 1 alarm output
Tamper Protection: Back-cover tamper switch
Buzzer: On-board
Serial Port: 1 TTL serial port

Electrical Characteristics

Power Supply: 10.2 to 14.4 VDC (from panel)
Power Consumption: Approx. 1.33 W

General

Dimensions (W × H × D): 150 mm × 115 mm × 28 mm
Operating Temperature: -10°C to 55°C (14°F to 131°F)
Operating Humidity: 10% to 90% (non-condensing)
Shell Material: Plastic (White)
Installation: Wall-mounted
Emergency Keys: Fire/Panic/Medical alarm

Key Features

One-touch arming without password
LCD display with company name, phone, time
Built-in tag reader and buzzer
Onboard inputs/outputs for expansion
Multiple indicators and backlit keys

The keypad offers user-friendly operation. It includes tamper detection for security. Easy address settings via DIP switches.
Explore desktop computers at Threeways Gadget Hub for alarm management.

Reliable Performance and Support
Threeways Gadget Hub supplies genuine Hikvision keypads to Kenyan clients. The Hikvision DS-PK1-LRT-HWB Wired LCD Keypad includes a manufacturer warranty against defects. Our Nairobi team provides expert support. Receive assistance with wiring, address configuration, integration, and troubleshooting. Access firmware updates promptly. Depend on our expertise for effective alarm control.
