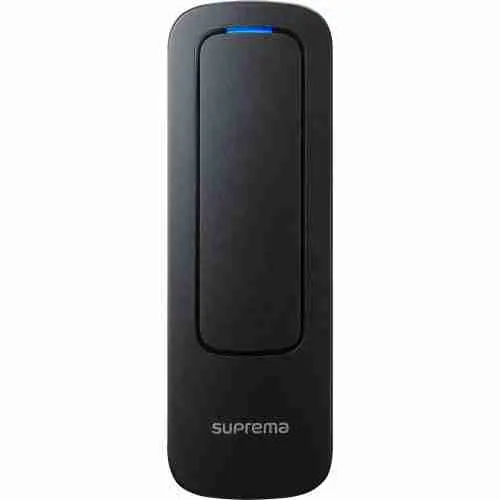

Suprema XPass 2 Outdoor Compact RFID Reader

Suprema XPass 2 Outdoor Compact RFID Reader
Suprema XPass 2 Outdoor Compact RFID Reader provides robust, weather-resistant access control for demanding environments in Kenya.
This versatile device delivers reliable RFID and mobile credential reading. It handles high-traffic outdoor installations with ease. Businesses secure gates and entry points effectively. Property managers protect residential compounds. Educational facilities control campus access points. The reader operates reliably in Nairobi’s varied weather conditions.

Detailed Use Cases and Compatibility
Suprema XPass 2 Outdoor Compact RFID Reader suits outdoor and semi-outdoor applications. Install it at main gates for vehicle and pedestrian entry. Use it on perimeter doors in warehouses and factories. Retail stores apply it for staff entrances. Construction sites secure temporary offices and equipment storage.
The reader supports dual-frequency technology. It reads 125kHz EM and HID Prox cards. It handles 13.56MHz standards including MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3, FeliCa. Mobile access works via NFC and BLE from smartphones.
Integrate seamlessly with Suprema BioStar 2 platforms. Connect using OSDP V2 protocol for secure communication. Support Wiegand for legacy systems. Pair with third-party controllers that accept standard interfaces.
Mount in mullion or gangbox formats depending on model variant. Its compact design fits narrow frames and standard boxes. Use PoE for simplified wiring in modern setups.
This reader excels in harsh conditions. It withstands rain, dust, and physical impacts. Kenyan businesses in coastal or dusty areas benefit greatly.
Enhance your security setup further. Explore our POS category for integrated payment and access solutions. Browse tablets for mobile management tools.
For insights into modern access control standards, refer to this SIA OSDP guide. Learn about RFID technologies from this NIST resource on biometrics and RF standards. Understand rugged device ratings via IEC IP code explanations.

Technical Specifications

Credential Support: 125kHz EM & HID Prox; 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3, FeliCa; NFC, BLE mobile access
RF Read Range: Up to 50 mm (MIFARE/DESFire/EM), 30 mm (FeliCa)
CPU: 1 GHz
Memory: 4 GB Flash + 64 MB RAM
LED Indicator: Multi-color
Sound: Multi-tone buzzer
Interfaces: RS-485 (OSDP V2 compliant), Wiegand, Ethernet (10/100 Mbps, PoE IEEE 802.3af), 2x Input, 1x Relay, TTL
Ingress Protection: IP65 / IP67 (dust-tight and water-resistant)
Impact Protection: IK08 (vandal-resistant)
Operating Temperature: -35 °C to +65 °C
Operating Humidity: 0% to 95%, non-condensing
Power: DC 12V (Max 500 mA) or DC 24V (Max 300 mA), PoE support
Dimensions (Mullion model XP2-MDPB): Approx. 48 x 145 x 27 mm
Weight: Approx. 144 g to 160 g (model dependent)
Certifications: CE, FCC, KC, RoHS, REACH, WEEE, SIG

These specifications guarantee dependable operation. The device handles Kenya’s hot days and cooler nights without failure.

Trust-Building with Warranty and Support
Threeways Gadget Hub supplies authentic Suprema products throughout Kenya. Each Suprema XPass 2 Outdoor Compact RFID Reader includes official manufacturer warranty. Expect coverage for 2 years on hardware defects from date of purchase.
Our Nairobi-based support team provides expert assistance. We offer installation advice and configuration help. Troubleshoot issues quickly with local technicians. We prioritize fast response times for all customers.
Shop confidently with us. Read feedback from satisfied clients in corporate and institutional sectors. Rely on genuine stock and professional service.
Discover more access control options. Visit our desktop computers category for integrated workstation solutions.
Suprema XPass 2 Outdoor Compact RFID Reader combines advanced features with rugged durability. Secure your premises reliably today.
