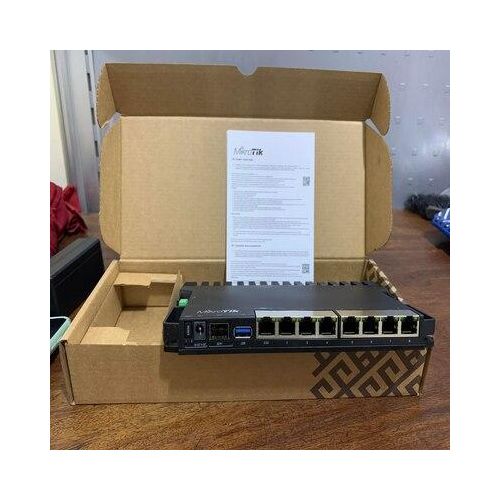

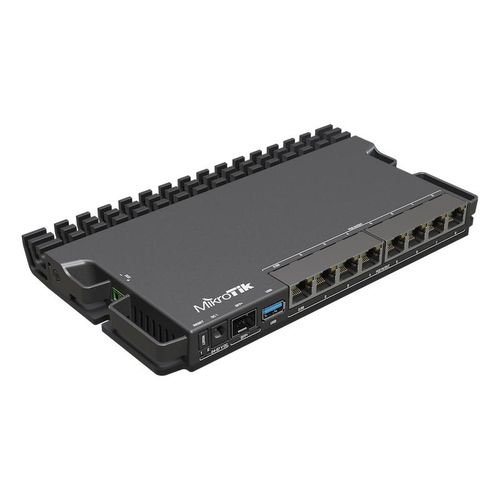

MikroTik RB5009UG+S+IN Wired Router

MikroTik RB5009UG+S+IN Wired Router stands out as a powerful, compact solution for advanced networking needs. This heavy-duty device brings exceptional wired performance with multi-gigabit capabilities in a small footprint. It handles demanding tasks reliably while fitting seamlessly into professional and enthusiast setups.

Versatile Use Cases and Compatibility

This router performs excellently in home labs, small offices, and ISP environments. Network professionals rely on it for core routing, firewall management, and VPN services. It manages high-speed internet connections up to 10 Gbps through the SFP+ port. Users deploy it for traffic shaping, bandwidth control, and secure remote access without slowdowns.

The design supports dense rack installations. You can mount four units in one 1U space using optional accessories. This saves valuable server room real estate. It suits surveillance systems, file servers, and multi-user networks where throughput matters.

Compatibility covers a wide range. It integrates with MikroTik SFP+ modules for fiber optics. The USB 3.0 port accepts external storage or LTE modems for failover. Container support in RouterOS v7 enables custom tools like Pi-hole or monitoring scripts. It works with existing Gigabit switches and PoE injectors. The device supports 802.3af/at PoE-in on Ether1 for flexible powering.

Professionals often pair it with high-speed links. For more desktop options, check our desktop computers collection. Discover full networking solutions at Threeways Gadget Hub.

Technical Specifications

Processor and Memory

• CPU: Marvell 88F7040 quad-core ARM 64bit
• CPU Frequency: 350-1400 MHz (auto)
• Cores/Threads: 4 cores, 4 threads
• RAM: 1 GB DDR4
• Storage: 1 GB NAND

Connectivity

• Ethernet Ports: 7 x 10/100/1000 Mbps Gigabit
• Multi-Gig Port: 1 x 2.5 Gigabit Ethernet
• Fiber Port: 1 x 10G SFP+ cage
• USB: 1 x USB 3.0 Type A (supports 1.5 A max)
• Switch Chip: Marvell 88E6393 (Amethyst family) with 10 Gbps full-duplex to CPU

Power and Environmental

• Power Inputs: 3 (DC jack 24-57 V, 2-pin terminal 24-57 V, PoE-in 802.3af/at on Ether1 24-57 V)
• Max Power Consumption: 25 W (14 W without attachments)
• Cooling: Passive – metal case serves as massive heat-sink
• Dimensions: 220 x 125 x 22 mm
• Operating Temperature: -40°C to 60°C
• MTBF: Approximately 200,000 hours at 25°C

Software and Other

• Operating System: RouterOS v7 (License level 5)
• Performance Highlights: Near wire-speed bridging/routing in many scenarios; strong IPsec hardware acceleration

The enclosure places heat-generating components on the bottom. This ensures silent, reliable operation under load.

Explore RouterOS features in the MikroTik documentation. Learn about Ethernet standards from IEEE. For container technology insights, see Docker.

Reliable Performance with Strong Support

Threeways Gadget Hub delivers trusted networking gear to customers in Nairobi and beyond. The MikroTik RB5009UG+S+IN Wired Router comes backed by MikroTik’s manufacturer warranty. You receive free RouterOS updates throughout the product’s life or at least five years from purchase. Our local team provides expert setup help, configuration advice, and troubleshooting. We handle returns and support efficiently. Buy confidently knowing reliable assistance is always nearby.

This router combines power, versatility, and efficiency. It meets modern demands for speed and reliability in compact form.
