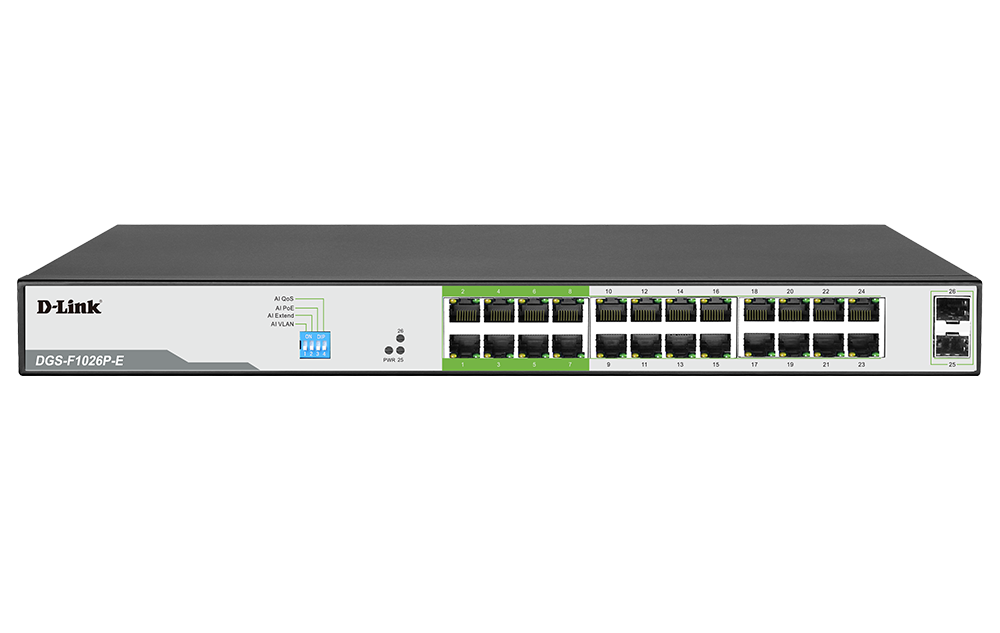

D-link 26-Port Gigabit PoE Switch with 24 PoE+ Ports (8 Long Reach 250m) and 2 SFP Uplink Ports – DGS-F1026P

D-Link 26-Port Gigabit PoE+ Switch with 8 Long Reach Ports + 2 SFP Uplinks – DGS-F1026P
D-Link DGS-F1026P – High-Power, Long-Distance PoE for Scalable Surveillance & Network Infrastructures

Long-Range PoE, Fiber Uplinks, and Enterprise-Class Reliability in One Switch
The D-Link DGS-F1026P is a high-capacity Gigabit PoE+ switch with 26 ports, including 24 PoE-enabled ports, 8 of which support up to 250m Long Reach PoE, and 2 dedicated SFP uplink ports. Designed to meet the demands of large-scale IP surveillance deployments, business networks, and remote installations, this unmanaged switch delivers plug-and-play simplicity, robust power delivery, and fiber-ready scalability.
Whether you’re powering IP cameras across wide outdoor areas, linking floors with access points, or feeding bandwidth-hungry VoIP systems, the DGS-F1026P offers rock-solid performance with no software setup required.

🧩 What’s Included

24 × Gigabit Ethernet ports with PoE+ support (IEEE 802.3af/at)

8 Long Reach PoE ports supporting up to 250 meters

2 × 100/1000 Mbps SFP uplink ports for fiber connectivity

PoE Budget: 250W total output

Fan-based cooling system for thermal regulation

Rack-mountable metal chassis with plug-and-play functionality

⚡ Power More Devices, Over Greater Distances
The DGS-F1026P stands out for its 8 Long Reach PoE ports, extending both power and data up to 250 meters — over double the standard Ethernet limit.

Perfect for powering remote IP cameras in parking lots, perimeter fences, or long corridors

Eliminates need for PoE extenders or mid-span injectors

Ideal for retail, school campuses, hospitality, and factory deployments

All 24 PoE ports support IEEE 802.3af/at, giving you full flexibility across low and high-power devices.

🌐 SFP Uplinks for Fiber-Connected Network Cores
With two dedicated SFP uplink ports, the DGS-F1026P ensures seamless connection to your core router, NVR, or backbone switch, even across long distances:

Supports fiber transceivers for long-haul, high-bandwidth connections

Keeps PoE ports free for powered devices

Enables clean aggregation of remote devices to your central network

Compatible with both 100 Mbps and 1 Gbps SFP modules, this switch scales effortlessly as your infrastructure grows.

🛠️ Effortless Setup for IT and Non-IT Environments
This is an unmanaged switch, meaning:

No configuration required

Automatic PoE power detection and allocation

Plug in your IP cameras, access points, or phones and the switch handles the rest

Smart PoE protection prevents overloading and protects non-PoE devices

Designed for quick rollout in environments where simplicity and reliability matter most.

🧰 Built for Heavy-Duty Networking

Metal enclosure for enhanced durability

Rack-mountable or desktop use

Built-in fan for consistent airflow and component longevity

LED indicators for PoE status, data activity, and link speed

This switch is engineered for continuous operation, even in harsh or high-demand conditions.

🔧 Technical Specifications

Feature
Specification

PoE Ports
24 × 10/100/1000 Mbps (8 Long Reach 250m)

SFP Uplink Ports
2 × 100/1000 Mbps

Switching Capacity
52 Gbps

PoE Budget
250W total

PoE Standards
IEEE 802.3af/at

Max PoE Distance
Up to 250m (on 8 ports)

Cooling
Smart fan

Management
Unmanaged

Housing
Metal, rackmount ready

Dimensions
440 × 180 × 44 mm

🔗 Related Products at Threeways Gadget Hub

D-Link 24-Port PoE+ Switch with 2 SFP – DGS-F1024P

D-Link 16-Port Smart Managed Long Range PoE Switch – DGS-F1210-18PS

Hikvision 32CH NVR with PoE Support

SFP Modules and Outdoor Fiber Cables

Ask us about custom bundles for surveillance deployments and long-range networking.

🧠 Frequently Asked Questions (FAQs)
Q: How many PoE devices can I power with this switch?
You can power up to 24 devices, provided the total power consumption stays within the 250W PoE budget.

Q: What’s the benefit of Long Reach PoE ports?
They allow data and power to run up to 250m, ideal for wide-area surveillance or factory floor setups without needing repeaters.

Q: Do the SFP uplink ports consume PoE ports?
No. The 2 SFP ports are dedicated uplinks, preserving all 24 PoE ports for powered devices.

Q: Is it suitable for unmanaged networks?
Yes. This switch is unmanaged, requiring no software configuration — perfect for simple plug-and-play environments.

🚀 Expand Your IP Network with D-Link DGS-F1026P
When your network demands more ports, longer reach, and full-speed connectivity, the DGS-F1026P delivers. It’s the ideal solution for surveillance networks, growing businesses, and multi-building infrastructures that need power and scalability without complexity.
Order now from Threeways Gadget Hub – your trusted source for high-performance D-Link PoE solutions.
