Hikvision IDS-TCM403-GIR ANPR Camera

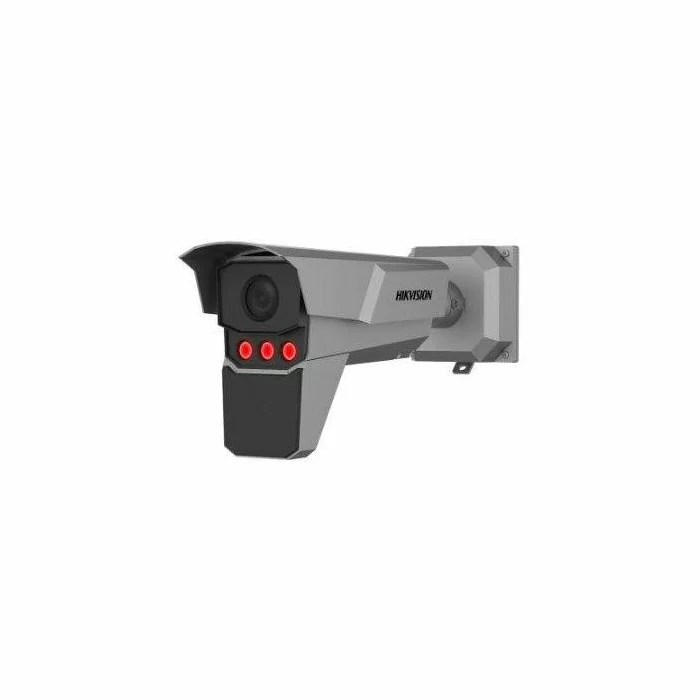

Hikvision IDS-TCM403-GIR 4 MP Radar-Assisted ANPR Smart Monitoring Camera
Hikvision IDS-TCM403-GIR 4 MP Radar-Assisted ANPR Smart Monitoring Camera fuses 4 MP clarity with 77 GHz radar technology. This intelligent bullet camera achieves precise license plate recognition and vehicle tracking. Moreover, it handles Kenya’s challenging traffic and weather conditions effectively.
Use Cases and Compatibility
First, install this camera at urban intersections, expressways, parking entrances, toll plazas, and border posts. Additionally, radar detection works reliably in rain, fog, or heavy dust. Therefore, it captures vehicles accurately even at speeds up to 120 km/h.
Furthermore, the unit covers up to three lanes simultaneously. Consequently, you avoid blind spots in wider roadways. Moreover, seamless integration with barrier gates enables automatic access control.
In addition, it connects smoothly to Hikvision NVRs and video management platforms. As a result, operators enjoy centralized viewing and event storage. Besides, offline ANPR processing continues during temporary network loss.
For instance, Nairobi corporate compounds use it for streamlined visitor flow. Similarly, industrial facilities strengthen perimeter monitoring. Overall, it detects vehicle type, color, direction, and even no-plate vehicles.
Installation and Performance Scenarios
Installation becomes straightforward thanks to motorized vari-focal lenses. Thus, focus and zoom adjust remotely after mounting. Moreover, radar triggering proves more dependable than traditional induction loops.
Furthermore, 140 dB wide dynamic range counters intense tropical glare. Likewise, DarkFighter technology delivers sharp images after sunset. Therefore, performance remains consistent day and night.
Additionally, multi-frame analysis boosts recognition in difficult scenarios. Consequently, accuracy improves on dirty or angled plates. In summary, this camera adapts well to Kenya’s demanding environments.
Technical Specifications
Camera and Imaging

Image Sensor: 1/1.8″ Progressive Scan CMOS
Maximum Resolution: 2688 × 1520 (4 MP)
Frame Rate: Up to 30 fps at full resolution
Minimum Illumination: Color 0.0005 Lux @ (F1.2, AGC ON)
Shutter Time: 1/25 s to 1/100,000 s
Day & Night: IR cut filter with automatic switch
Wide Dynamic Range: 140 dB
Image Enhancement: BLC, HLC, 3D DNR

Lens and Illuminator

Focal Length: 2.8-12 mm or 8-32 mm motorized vari-focal
Focus: Automatic with one-touch capability
Aperture: F1.38 (2.8-12 mm) or F1.7 (8-32 mm)
Supplement Light: IR range up to 50 m
Illuminator: 3 high-performance LEDs at 850 nm

Radar Features

Frequency Band: 77 GHz millimeter wave
Modulation: FMCW
Detection Range: Up to 50 m
Speed Measurement: ±120 km/h
Speed Accuracy: ±2 km/h
Detection Angles: Horizontal ±22°, Vertical ±10°
Lane Support: Up to 3 lanes

ANPR and Smart Functions

Recognition Engine: Built-in AI for license plate capture
Vehicle Attributes: Type, color, brand, direction, no-plate identification
Processing: Multi-frame enhancement for higher accuracy
Brand Coverage: Over 200 manufacturers, including Toyota, Nissan, Isuzu, BMW

Interfaces and Storage

Network Port: 1 RJ45 10M/100M/1000M Ethernet
Alarm I/O: 1 input, 1 output, 2 relay channels
Serial Interface: 1 RS-485
Wiegand: Supported for access integration
Audio: G.711/G.722.1 codec
Storage: MicroSD card up to 512 GB with ANR
Protocols: TCP/IP, HTTPS, RTSP, ONVIF (S/G/T/M)

General Parameters

Power Supply: PoE+ (802.3at) or DC 12 V
Power Consumption: Maximum 25 W
Protection Rating: IP67 water/dust resistant, IK10 vandal proof
Operating Temperature: -30°C to 70°C
Humidity: ≤95% (non-condensing)
Design: Compact bullet housing with integrated radar

Reliable Support and Warranty
Threeways Gadget Hub stands behind every Hikvision solution we supply. Therefore, the Hikvision IDS-TCM403-GIR 4 MP Radar-Assisted ANPR Smart Monitoring Camera includes the official manufacturer warranty. Moreover, our Nairobi team provides expert installation advice and fast after-sales assistance. Thus, you receive dependable long-term performance and quick support.
Browse additional products on our website. For example, explore desktop computers for control room setups. Similarly, view monitors for clear live feeds. Furthermore, check gaming for versatile computing needs.
Learn more about radar-assisted surveillance from Hikvision official resources. Understand millimeter-wave technology via IEEE standards information. Explore AI-driven recognition on Wikipedia deep learning page.
This advanced camera sets a new standard for accurate and durable traffic monitoring in Kenya.
