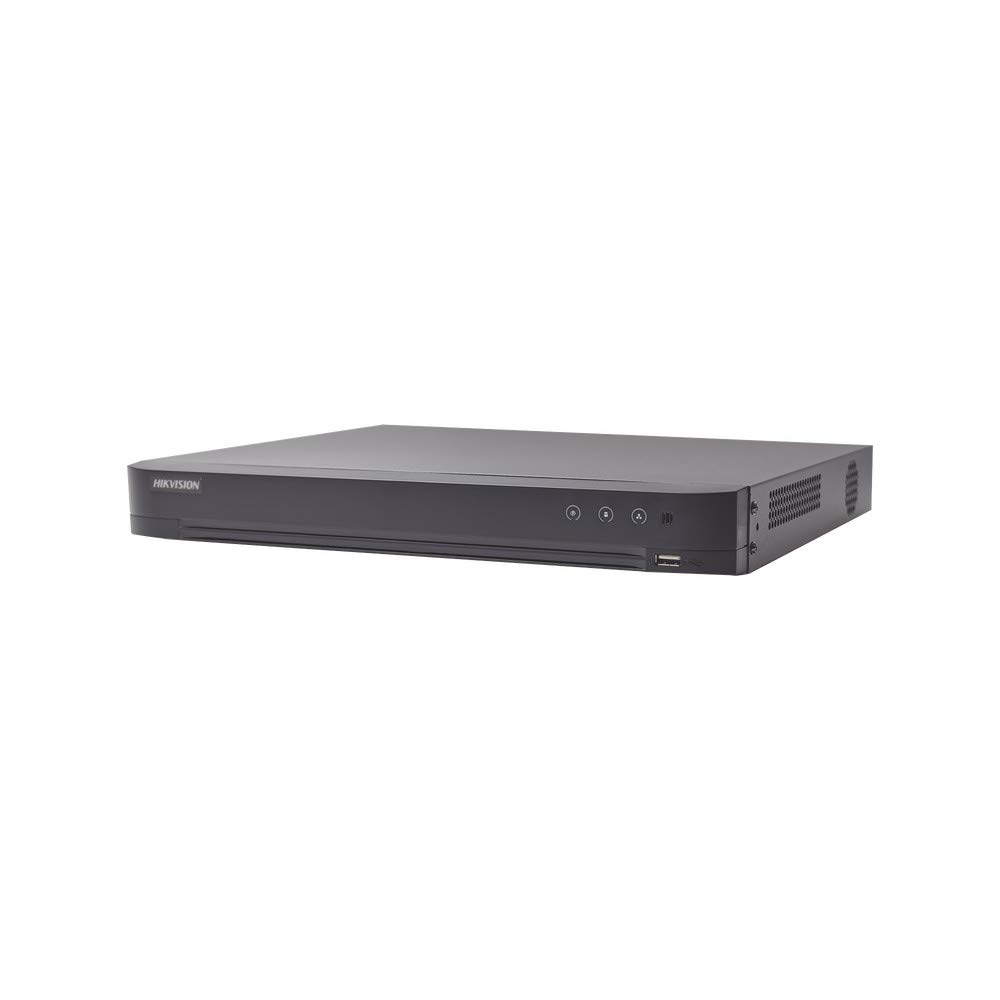

Hikvision iDS-7204HQHI-M1/FA AcuSense DVR

Hikvision iDS-7204HQHI-M1/FA AcuSense DVR provides advanced intelligent surveillance with facial recognition and deep learning detection. This reliable 1U recorder suits small to medium installations needing precise alerts, face matching, and efficient storage management.

Hikvision iDS-7204HQHI-M1/FA AcuSense DVR Use Cases

The Hikvision iDS-7204HQHI-M1/FA AcuSense DVR works well in security-sensitive areas. Homes use it for entrance and perimeter monitoring. Small offices deploy it to watch reception and parking zones. Retail shops apply it for cashier counters and entry points. Clinics install it in waiting rooms and exteriors.

Four analog channels cover essential areas adequately. Users secure key locations without overkill. Small businesses gain smart protection cost-effectively.

Hybrid setup allows future-proofing. Installers mix analog cameras with IP ones seamlessly. This extends system longevity.

Facial recognition adds access control benefits. Users match faces against libraries for alerts.

Hikvision iDS-7204HQHI-M1/FA AcuSense DVR Compatibility

The Hikvision iDS-7204HQHI-M1/FA AcuSense DVR supports multiple standards. It accepts HDTVI, AHD, HDCVI, CVBS analog cameras, and IP cameras up to 6 MP.

Default adds one IP channel. Enhanced mode reaches six channels.

Analog channels enable audio over coaxial cables. Compatible cameras transmit sound directly.

Remote access functions via Hik-Connect app. Users monitor live and playback on mobile devices.

Hikvision iDS-7204HQHI-M1/FA AcuSense DVR Key Advantages

AcuSense Motion Detection 2.0 classifies humans and vehicles. It ignores irrelevant movements like leaves or lights. False alarms drop significantly.

Facial recognition supports picture comparison. It triggers alarms on matches or strangers.

Face picture libraries hold up to 500 images. Users manage access lists easily.

H.265 Pro+ compression saves storage space. Longer recording times fit single drives.

The 1U design fits racks neatly. HDMI and VGA outputs support simultaneous monitoring.

Smart search filters by face, human, or vehicle. Reviews become faster and targeted.

Technical Specifications

Video and Audio

• Analog Video Input: 4-ch BNC (1.0 Vp-p, 75 Ω), supports coaxitron
• HDTVI Input: Up to 4 MP@30 fps, 1080p@30 fps, 720p@30 fps
• AHD/HDCVI Input: Up to 4 MP@30 fps, 1080p@30 fps
• CVBS Input: Supported
• IP Video Input: Up to 6-ch (enhanced mode), up to 6 MP
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution: Up to 3K/5 MP Lite
• Audio Input: 1-ch RCA + 4-ch via coaxial cable
• Audio Output: 1-ch RCA
• Two-Way Audio: Supported

Recording and Playback

• Recording Frame Rate: Up to 15 fps at higher resolutions
• Synchronous Playback: 4-ch
• Smart Search: By face/human/vehicle

Smart Functions

• Motion Detection 2.0: All analog channels (human/vehicle)
• Facial Recognition: 1-ch face picture comparison
• Face Picture Library: Up to 16 libraries, 500 pictures total

Network

• Network Interface: 1 × RJ45 10/100 Mbps
• Total Bandwidth: 72 Mbps
• Remote Connections: Up to 32 users
• Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, HTTPS, ONVIF

Storage

• SATA Interface: 1 × SATA
• Capacity: Up to 10 TB per disk

Interface

• Video Output: 1-ch HDMI + 1-ch VGA (simultaneous)
• USB Interface: 2 × USB 2.0

General

• Power Supply: 12 VDC
• Consumption: ≤ 18 W (without HDD)
• Working Temperature: -10 °C to +55 °C
• Dimensions (W × D × H): 315 × 242 × 45 mm
• Weight: ≤ 1.8 kg (without HDD)
