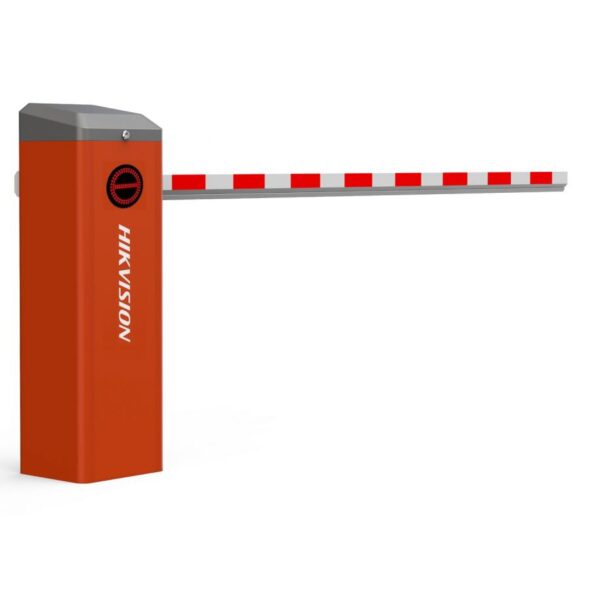

Hikvision DS-TMG520-M Barrier Gate with Strip

Hikvision DS-TMG520-M Barrier Gate with Strip Light Pole and Arrow Indicator
Hikvision DS-TMG520-M Barrier Gate with Strip Light Pole and Arrow Indicator provides efficient vehicle access control for parking and entrance management. This digital barrier features adjustable speeds, integrated LED strip lighting on the boom pole, and an arrow indicator for clear status visibility. Moreover, it suits high-traffic Kenyan sites with reliable, fast operation.
Use Cases and Compatibility
First, install this barrier at parking lot entrances and exits, gated communities, office compounds, shopping malls, hospitals, industrial parks, and residential estates in Nairobi. Additionally, the strip light pole illuminates the boom for enhanced nighttime safety. Therefore, drivers notice the barrier position quickly to avoid collisions.
Furthermore, the arrow indicator displays open, closed, or in-motion status prominently. Consequently, it guides traffic flow and reduces confusion in busy areas. Moreover, one device supports left or right boom direction switching. As a result, installation adapts to site layouts easily.
In addition, integrate it with Hikvision ANPR cameras, loop detectors, radar triggers, and parking management software. Thus, automate access based on plate recognition or vehicle detection. Besides, pair with remote controllers, buttons, or systems for multiple control options.
For example, commercial facilities use it to manage visitor and staff vehicles smoothly during peaks. Similarly, residential compounds prevent unauthorized entry with visible indicators. Overall, it improves security, reduces congestion, and enhances user experience in Kenyan environments.
Installation and Performance Scenarios
Installation secures the chassis on a concrete base with anchors. Thus, align the boom pole at 880 mm height for standard vehicles. Moreover, adjustable direction simplifies left/right configuration without extra parts.
Furthermore, connect strip light and arrow indicator wiring to the control board. Likewise, embed inductive loops or radar for automatic triggering. Therefore, the barrier rises rapidly upon valid detection.
Additionally, DC frequency conversion allows independent speed tuning. Consequently, raise in 1.5 seconds default for quick passage. In addition, fall slower to prevent accidents. The anti-condensation feature keeps the motor warm in cooler conditions.
Moreover, high protection with 2 mm cold-rolled steel chassis resists UV, static, and fading. Thus, it withstands Kenya’s sun and rain long-term. In summary, low-maintenance design ensures consistent performance in demanding outdoor setups.
Technical Specifications
Barrier Housing

Material: SGCC or SECC cold-rolled steel
Thickness: 2.0 mm housing, 1.5 mm door
Color: Orange red (typical)
Protection: IP54 weatherproof, anti-UV/antistatic coating
Boom Installation Height: 880 mm

Boom Pole and Indicators

Matched Boom: Octagonal straight (1-6 m), telescopic (4-6 m), or with LED strip light
Strip Light Pole: Integrated LED (green for open, red for other status)
Photometric: Green ~107 lm, red ~39 lm, long life
Arrow Indicator: Shows barrier status clearly
Direction: Switchable left/right

Performance

Motor Type: DC brushless with frequency conversion
Rising/Falling Speed (4m model): Raising 1.5 s (default, adjustable 1.5/2/2.5 s), Falling 3.5 s (default, adjustable 2.5/3/3.5 s)
Cycles: Up to 5,000,000 operations
Power Supply: 220 VAC (or 24V light variant)
Consumption: Max. ~300 W
Auto Lock: Manual release tool for power-off
Anti-Condensation: Low-power motor heating

Interfaces and Features

Controls: Remote (433 MHz), buttons, parking system
Detection: Embedded vehicle detector compatible with coils
Safety: Anti-fall, anti-collision, low-speed fall
Other: Rising priority mode, configurable delays

General Parameters

Operating Temperature: -30°C to 70°C
Humidity: <90% non-condensing Chassis Weight: Approx. 59-60 kg Duty Cycle: 100% Reliable Support and Warranty Threeways Gadget Hub supplies premium Hikvision barrier solutions in Nairobi. Therefore, the Hikvision DS-TMG520-M Barrier Gate with Strip Light Pole and Arrow Indicator includes the manufacturer's standard warranty. Moreover, our team provides professional installation guidance, speed configuration, and responsive after-sales support. Thus, maintain optimal performance with local expertise. Explore more on our site. For instance, view desktop computers for management stations. Similarly, browse monitors for oversight. Furthermore, check gaming for additional needs. Learn about barrier gate technology from Hikvision official resources. Understand access control via Wikipedia access control. Review traffic standards on IEEE resources. This barrier combines speed, visibility, and durability for effective vehicle management in Kenya.
