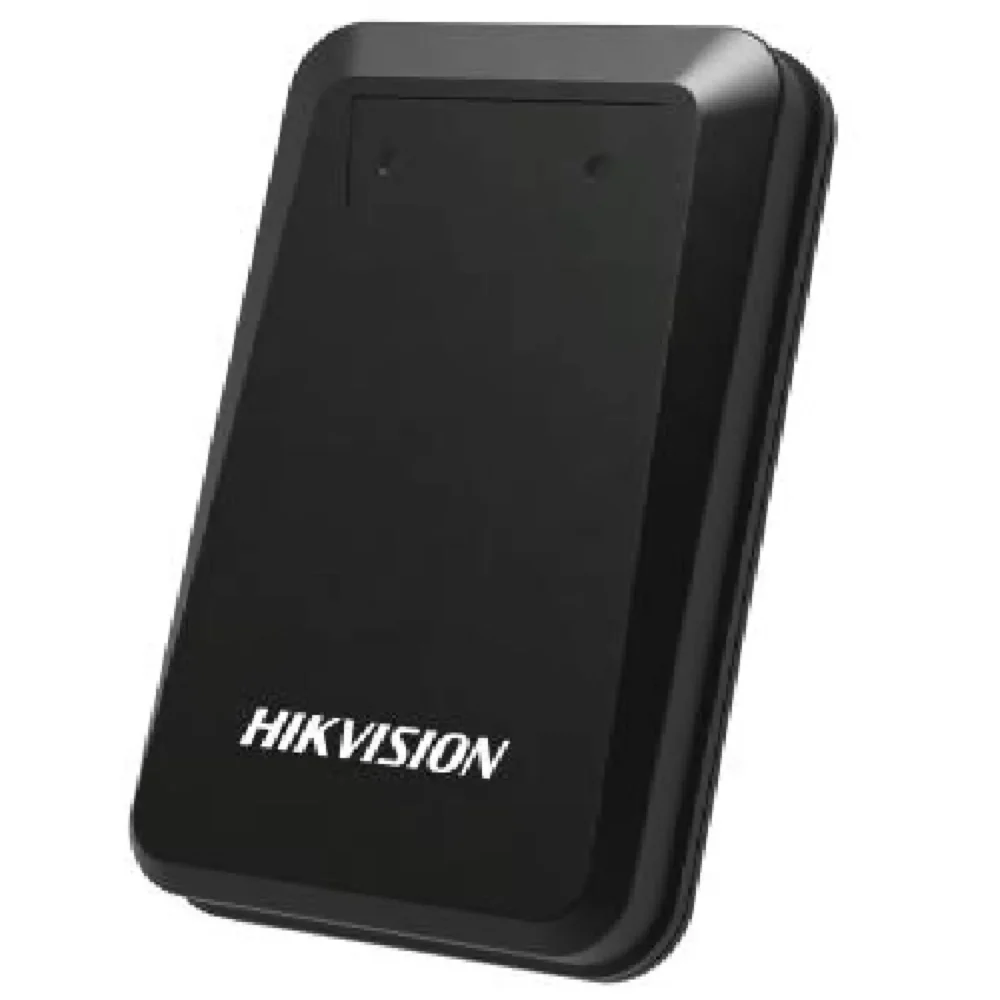

Hikvision DS-TMG034 79&60 GHz Entrance & Exit Radar

Hikvision DS-TMG034 79&60 GHz Entrance & Exit Radar combines advanced millimeter-wave technology with dual-frequency operation for superior vehicle and pedestrian detection. This compact radar unit ensures precise triggering and anti-fall protection in parking systems. Moreover, it delivers stable performance across various Kenyan weather conditions.

Use Cases and Compatibility

First, deploy this radar at parking entrances, exits, underground garages, gated communities, malls, hospitals, office compounds, and toll stations. Additionally, it serves as a trigger device to activate ANPR cameras or as an anti-fall sensor to prevent barrier boom drops. Therefore, it enhances safety and automation in high-traffic areas.

Furthermore, the unit recognizes moving directions of targets. Consequently, it suits mixed entrance-exit lanes without confusion. Moreover, selectable detection modes distinguish vehicles from pedestrians effectively.

In addition, integrate it with Hikvision barrier gates like TMG4B0 series and ANPR cameras. As a result, achieve seamless relay-based control and signal transmission. Besides, RS-485 or Wi-Fi/Bluetooth options enable easy debugging via mobile apps.

For example, Nairobi smart estates use it to secure underground parking while avoiding false triggers from non-vehicles. Similarly, commercial facilities prevent boom accidents during peak hours. Overall, it reduces manual oversight and improves flow in demanding environments.

Installation and Performance Scenarios

Installation positions the trigger version at about 60 cm height and 4 meters from cameras. Thus, fix it with expansion screws for quick setup. Moreover, anti-fall models mount directly on barrier sides via reserved holes.

Furthermore, wiring uses red/black for power and yellow/brown for signals to IO or induction ports. Likewise, online debugging via serial, Wi-Fi, or Bluetooth simplifies adjustments. Therefore, technicians configure distance, width, sensitivity, and direction remotely.

Additionally, the radar self-records parameters and restores after power cycles. Consequently, it maintains settings during outages common in variable grids. In summary, low-maintenance design suits Kenya’s outdoor and underground applications reliably.

Technical Specifications

Radar Performance

• Transmitting Frequency: 79 GHz (or 60 GHz variant)
• Transmitting Power: ≤ 10 mW
• Beamwidth: Vertical ±10°, Horizontal ±38° (or variant configurations like Vertical 34°, Horizontal 12° for trigger)
• Response Time: 50 ms
• Trigger Distance: 0.3 to 6 m (adjustable)
• Detection Area: Horizontal width 0 to 2 m (adjustable)
• Detection Target: Vehicle/Person (selectable modes)
• Anti-Fall Width: 0 to 2 m adjustable
• Lane Width Support: 0.3 to 6 m adjustable
• Direction Recognition: Supported for mixed scenes

Interfaces and Features

• Communication: RS-485, Wi-Fi (app for debug/upgrade), or Bluetooth
• Output: Relay output for barrier control
• LED Indicators: Show working status
• Online Debug/Upgrade: Via serial port or wireless
• Additional: Automatic background recognition, low false alarms, interference filtering

General Parameters

• Power Supply: 9 to 12 VDC
• Power Consumption: < 3 W
• Working Current: < 0.25 A
• Operating Temperature: -40°C to 85°C
• Dimensions: 112.4 × 136.9 × 29 mm (4.4 × 5.4 × 1.1 inch)
• Housing: Compact, rugged for outdoor/barrier mounting
• Protection: High environmental adaptability, all-weather operation

Reliable Support and Warranty

Threeways Gadget Hub brings premium Hikvision radar solutions to Nairobi clients. Therefore, the Hikvision DS-TMG034 79&60 GHz Entrance & Exit Radar carries the manufacturer’s standard warranty. Moreover, our team delivers expert mounting advice, parameter tuning, and fast after-sales service. Thus, benefit from accurate detection and minimal downtime.

Check more on our website. For instance, explore desktop computers for system management. Similarly, browse monitors for monitoring feeds. Furthermore, view gaming for varied computing.

Explore millimeter-wave radar advancements at Hikvision official resources. Learn radar basics via Wikipedia millimeter-wave sensing. Review traffic detection standards on IEEE resources.

This radar elevates entrance-exit security with precise, weather-resistant detection for Kenyan parking needs.
