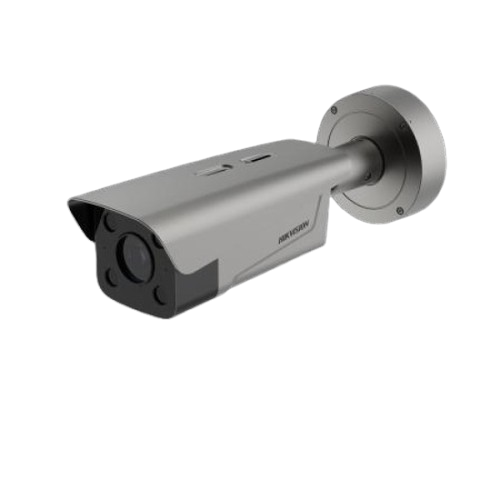

Hikvision DS-TCG406-E(12V/PoE)(2812) ANPR Camera

Hikvision DS-TCG406-E(12V/PoE)(2812) ANPR Camera
Hikvision DS-TCG406-E(12V/PoE)(2812) ANPR Camera delivers high-accuracy automatic number plate recognition for vehicle access control. This 4 MP bullet camera captures clear images in various conditions. It suits parking lots, gated communities, toll stations, and commercial entrances in Nairobi and Kenya. Property managers automate entry. Security teams monitor vehicle flow. Businesses reduce manual checks effectively.
The device uses deep learning algorithms. It recognizes plates from over 130 countries. Motorized lens adjusts focus remotely. Built-in lights ensure visibility day and night. Relay output controls barriers directly. Integration enhances overall security systems.

Use Cases and Compatibility
This ANPR camera excels in entrance and exit management. In residential estates, it grants access to registered vehicles only. Commercial parking facilities track entry and exit times. Toll booths automate fee collection. Office compounds restrict unauthorized vehicles.
Mount at 1.5 to 3 meters height for optimal capture. The 2.8 to 12 mm lens covers wide to narrow fields. Support vehicle type, color, and brand detection. Recognize dirty or low-light plates reliably.
Pair with barrier gates via relay output. Connect to Hikvision NVRs or software for storage. Use loop or radar triggering. Integrate with access control systems. Operate over PoE or 12 VDC power. Work in TCP/IP networks for remote access. Support multi-frame capture for moving vehicles.
For reliable security solutions in Kenya, visit Threeways Gadget Hub. Explore monitors for live viewing stations.

Technical Specifications
Camera Parameters

Image Sensor: 1/1.8″ progressive scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed: 1/30 s to 1/100,000 s
Lens Type: 2.8 to 12 mm motorized vari-focal
Aperture: F1.2 to F2.5
Field of View: Horizontal 114.5° to 41.8°, Vertical 59.3° to 23.6°, Diagonal 141.1° to 48°
IR Range: Up to 25 m
WDR: 140 dB

Smart Features

ANPR Recognition: Supports over 130 countries/regions
Vehicle Detection: Type (car, van, bus, truck), color (multiple), brand recognition
Capture Rate: >98% under recommended conditions
Accuracy: >98% for plates in optimal setup
Multi-Frame LPR: Supported
Trigger Modes: Video detection, IO, RS-485

Interfaces

Network: 1 RJ45 10M/100M Ethernet
Alarm In/Out: Supported
Audio In/Out: Supported
Relay Output: For barrier gate control
Storage: MicroSD card slot (up to certain capacity, TF card)
Power: 12 VDC ±25% or PoE (802.3af)

General

Protection: IP67, IK10
Working Temperature: -40°C to 70°C (-40°F to 158°F)
Working Humidity: 0% to 95% (non-condensing)
Power Consumption: Max. approx. 12 W
Dimensions: Refer to Hikvision datasheet for exact

The camera features robust housing. It withstands harsh weather. LEDs switch automatically. Focus adjusts via software.
Browse desktop computers at Threeways Gadget Hub for central monitoring.

Reliable Performance and Support
Threeways Gadget Hub provides authentic Hikvision products to Kenyan customers. The Hikvision DS-TCG406-E(12V/PoE)(2812) ANPR Camera includes a manufacturer warranty against defects. Our Nairobi team offers expert support. Get help with installation, lens adjustment, configuration, and integration. Access firmware updates promptly. Depend on our experience for effective vehicle access deployments.
