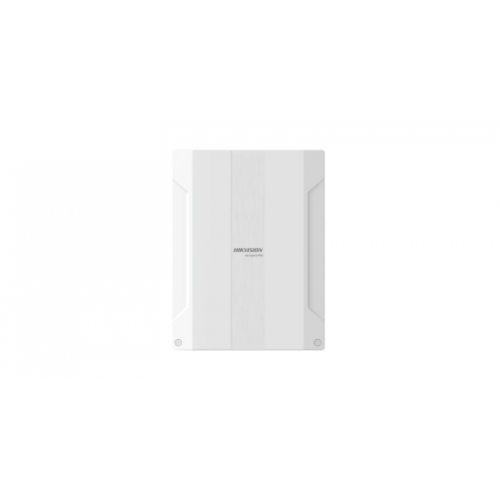

Hikvision DS-PHA48-EP AX Hybrid Pro Control Panel

Hikvision DS-PHA48-EP AX Hybrid Pro Control Panel delivers advanced hybrid intrusion detection for residential and commercial security. This wired panel integrates wireless detectors and peripherals seamlessly. It supports Speed-X bus for high-speed verification. Properties in Nairobi and Kenya gain reliable protection. Security teams monitor events centrally. The panel ensures flexible expansion and dual-path communication.

The system features 8 onboard zones expandable to 48. It includes 2-channel IP camera video verification. Alarm notifications reach via Hik-Connect app. Multiple protocols enable integration. It suits homes, offices, warehouses, and small businesses effectively.

Use Cases and Compatibility

This control panel fits diverse intrusion scenarios. In homes, protect entry points with wired and wireless sensors. Offices secure perimeters and internal zones. Warehouses monitor large areas with expandable zones. Retail stores integrate alarms with access control. Construction sites use portable setups.

The DS-PHA48-EP supports 48 zones total (8 onboard, expandable with wired or wireless). Use up to 4 wired PIRCAM for visual verification. Add wireless detectors via Speed-X bus. Connect keypads, keyfobs, tags, and sounders. Support arming/disarming via Hik-Connect, iVMS-4200, SMS, or tags. Integrate with network cameras for 2-ch onboard video clips. Use dual-path communication over LAN, PSTN, GPRS, or 3G/4G.

Configure via web, iVMS-4200, Hik-ProConnect, or Hik-Connect app. Report to ARC using ISAPI, Cloud P2P, ISUP, CSV-IP, DC-09. Support up to 48 tags, 48 keyfobs, 4 keypads, 8 wireless sounders. Operate indoors with wall mounting. Suit new installations or upgrades in existing systems.

For trusted alarm solutions in Kenya, visit Threeways Gadget Hub. Explore monitors for management stations.

Technical Specifications

Software Features

• Zones: 48 (8 onboard, max 4 wired PIRCAM)
• Areas: 16
• Users: Installer: 1, Administrator: 1, Operator: 46
• SMS Notification: Supported (with GPRS/3G/4G module)
• Onboard Video Clips: 2
• ARC Protocol: ISAPI, Cloud P2P, DC-09 (ADM-CID/SIA-DCS), CSV-IP, ISUP 5.0
• Programming Tools: Web/iVMS-4200/Hik-ProConnect/Hik-Connect
• Firmware Upgrade: Web/iVMS-4200/Hik-ProConnect
• End of Line Resistance: 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K

Hardware Features

• Alarm Input: 48 (8 onboard)
• Alarm Output: 48 (2 onboard relay, 2 I/O)
• Power Output: Bell: max 12V 1.2A, AUX: max 12V 1.5A, Bell+AUX: max 12V 2.1A
• 3/4G Onboard: Optional
• GPRS Onboard: Optional
• Bus: 1 Speed-X bus
• Sounder Output: 1 wired onboard
• Tamper-Proof: 1 switch (removal), 1 switch (cover open)
• Network Interface: 1 RJ45 10M/100M Ethernet

Electrical Characteristics

• Power Interface: 100 to 240 VAC (on-board transformer)
• Power Consumption: 220V – With alarm: 1.875A/30W, Without: 200mA/3.2W; 13.5V battery – With alarm: 1.5A/22W, Without: 150mA/2W
• Battery Type: Lead acid 12V 7Ah (not included)
• Battery Life: Up to 36 hours

General

• Operation Temperature: -10°C to 40°C
• Operation Humidity: 10% to 90%
• Shell Material: Plastic
• Color: White
• Dimensions (W×H×D): 261 mm × 199 mm × 86.4 mm
• Weight: 996.5 g
• Device Management: Tag 48, Keyfob 48, Keypad 4, Wireless Sounder 8

The panel supports video verification and custom voice libraries. It includes tamper detection and multiple LED indicators.

Discover desktop computers at Threeways Gadget Hub for central monitoring.

Reliable Performance and Support

Threeways Gadget Hub supplies authentic Hikvision alarm systems to Kenyan clients. The Hikvision DS-PHA48-EP AX Hybrid Pro Control Panel includes a manufacturer warranty against defects. Our Nairobi team provides expert support. Receive assistance with installation, configuration, zone expansion, and integration. Access firmware updates promptly. Trust our expertise for comprehensive intrusion protection.

Refer to Hikvision’s AX Hybrid Pro series here, alarm products here, and security guidelines here.
