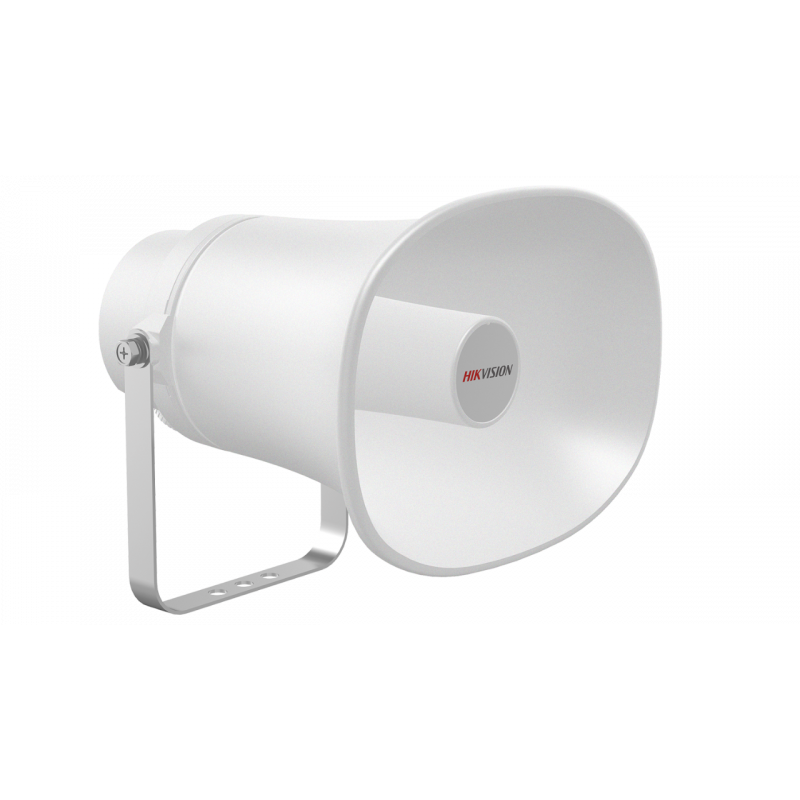

Hikvision DS-PA0103-A IP Speaker

Hikvision DS-PA0103-A IP Speaker
Hikvision DS-PA0103-A IP Speaker provides powerful audio broadcasting for security and public address applications. This outdoor horn speaker delivers clear announcements over large areas. It supports network streaming and local playback. Facilities in Nairobi and Kenya use it for emergency alerts and voice instructions. The speaker integrates with Hikvision systems seamlessly. It ensures reliable operation in harsh outdoor conditions.
The device offers high sound pressure level. It features PoE power supply. Built-in microphone enables two-way communication. SD card storage allows offline playback. Weatherproof design withstands rain and dust effectively.

Use Cases and Compatibility
This IP speaker suits demanding audio needs. In public spaces, broadcast emergency evacuation messages. Warehouses announce safety instructions across large areas. Schools use it for bell schedules and alerts. Transportation hubs deliver passenger information. Commercial sites integrate with surveillance for event-triggered audio.
The DS-PA0103-A connects via RJ45 Ethernet. It supports TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, HTTP protocols. Play audio files or real-time streams over network. Use SD card for local MP3 playback. Enable one-way talk from remote computers. Collect on-site sound via built-in microphone. Integrate with Hikvision NVRs, HikCentral, and IP cameras. Power via PoE (IEEE 802.3af) or 12 VDC. Mount on poles or walls outdoors. Suit new installations or upgrades in existing networks.
Operate in temperatures from -40°C to 60°C. Achieve IP66/IP67 protection. Work with VMS for audio linkage. Broadcast triggered by alarms or schedules.
For quality audio solutions in Kenya, visit Threeways Gadget Hub. Explore monitors for control room displays.

Technical Specifications
Audio Performance

Max Sound Pressure Level: 120 dB
Built-in Amplifier: 15 W Class-D
Frequency Response: 300 Hz ~ 12.5 kHz
Coverage Pattern: 70° × 100°

Network and Storage

Network Interface: 1 × RJ45 10/100Base-TX self-adaptive
Network Protocols: TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, HTTP
Storage: Micro SD card, up to 32 GB
Audio Protocols: MP3, G.711a/u, G.722

Interfaces

MIC Input: 0.2 Vrms
Speaker Output: 8 Vrms
Power Input: PoE (IEEE 802.3af), max 13 W; or 12 VDC

General

Material: Aluminum alloy
Protection Level: IP66/IP67
Dimensions (Without Bracket): 242 mm × 182 mm × 250 mm
Dimensions (With Bracket): 242 mm × 182 mm × 338.5 mm
Weight: Approx. 1.5 kg
Operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Humidity: 10% to 95% (non-condensing)

Key Features

Network broadcast and real-time streaming
SD card local playback
One-way audio talk
On-site sound collection via microphone
Weatherproof IP66/IP67 design
PoE power supply

The speaker uses durable aluminum construction. It withstands extreme weather. Multiple mounting options suit various sites.
Discover desktop computers at Threeways Gadget Hub for management stations.

Reliable Performance and Support
Threeways Gadget Hub supplies authentic Hikvision audio products to Kenyan clients. The Hikvision DS-PA0103-A IP Speaker includes a manufacturer warranty against defects. Our Nairobi team provides expert support. Receive help with installation, network setup, audio configuration, and troubleshooting. Access firmware updates promptly. Depend on our expertise for effective public address solutions.
Refer to Hikvision’s IP horn speakers here, audio products overview here, and security audio guidelines here.
