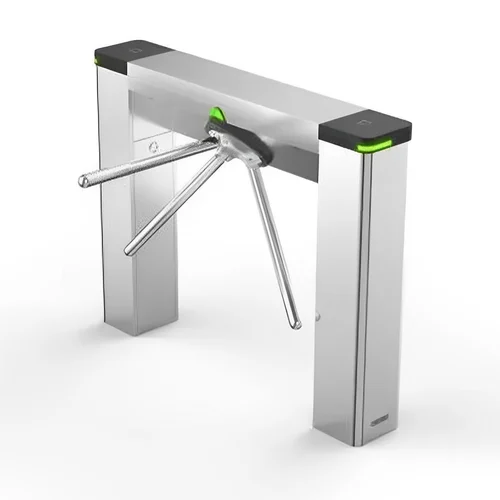

Hikvision DS-K3G501X-R/M Pro Tripod Turnstile

Hikvision DS-K3G501X-R/M Pro Tripod Turnstile provides secure and efficient pedestrian access control. This right/middle lane tripod gate features robust construction. It detects unauthorized passage reliably. Offices, stadiums, attractions, and construction sites in Nairobi and Kenya use it widely. Security teams manage entry effectively. The turnstile supports high throughput with smooth operation. It integrates seamlessly with access systems.

The device offers TCP/IP communication for remote management. Encrypted data protects privacy. LED indicators show status clearly. Key buttons allow offline configuration. It handles bidirectional lanes. Anti-tailgating design enhances security.

Use Cases and Compatibility

This tripod turnstile suits controlled environments. In corporate offices, restrict access to authorized staff. Stadiums manage spectator flow during events. Construction sites secure entry for workers. Attractions control visitor queues. Residential complexes prevent unauthorized entry.

The DS-K3G501X-R/M serves as right or middle lane in multi-lane setups. Pair with left lane models or base units. Support passage width around 550 mm. Integrate with card readers, fingerprint, face recognition, or QR code devices. Use relay outputs for alarms or barriers. Connect via TCP/IP for centralized control. Support HikCentral or iVMS software. Work with RS-485 or Wiegand interfaces. Operate in bidirectional mode. Suit indoor and semi-outdoor installations.

For quality access control in Kenya, visit Threeways Gadget Hub. Browse monitors for oversight.

Technical Specifications

System Parameters

• Processor: 32-bit high-speed processor
• MCBF: ≥ 3 million times

Interfaces

• Network: 10/100 Mbps self-adaptive Ethernet
• Communication Protocol: ISAPI
• Wired Network: Supported
• RS-485: Supported
• RS-232: Supported
• Wiegand: Supported
• Lock Control: Supported
• Door Contact Input: Supported
• Alarm Input/Output: Supported

General

• Throughput: More than 35 persons per minute (actual rate varies)
• Passageway Width: Recommended 550 mm
• Power Supply: 100-240 VAC, 50/60 Hz
• Power Consumption: < 50 W typical
• Working Temperature: -20°C to 55°C (-4°F to 131°F)
• Working Humidity: 10% to 95% (non-condensing)
• Protection Level: Suitable for indoor/semi-outdoor
• Dimensions: Refer to Hikvision datasheet for exact (approx. 980 mm height, 280 mm width per lane)
• Installation: Floor-mounted with pedestals

Key Features

• TCP/IP network with encrypted communication
• Offline configuration via key buttons
• Remaining open/closed mode selectable
• Bidirectional lane support
• LED indicators for entrance/exit status
• Self-detection and automatic alarm
• Remote control and management

The turnstile uses durable materials for longevity. It includes self-diagnostics. Barrier speed adjusts to flow. Online/offline modes ensure reliability.

Discover desktop computers at Threeways Gadget Hub for control stations.

Reliable Performance and Support

Threeways Gadget Hub supplies genuine Hikvision turnstiles to Kenyan clients. The Hikvision DS-K3G501X-R/M Pro Tripod Turnstile includes a manufacturer warranty against defects. Our Nairobi team provides expert support. Receive assistance with installation, wiring, configuration, and integration. Access firmware updates promptly. Trust our experience for secure pedestrian control solutions.
