Hikvision DS-D4018CS-1F Indoor LED Display

Hikvision DS-D4018CS-1F Indoor LED Display

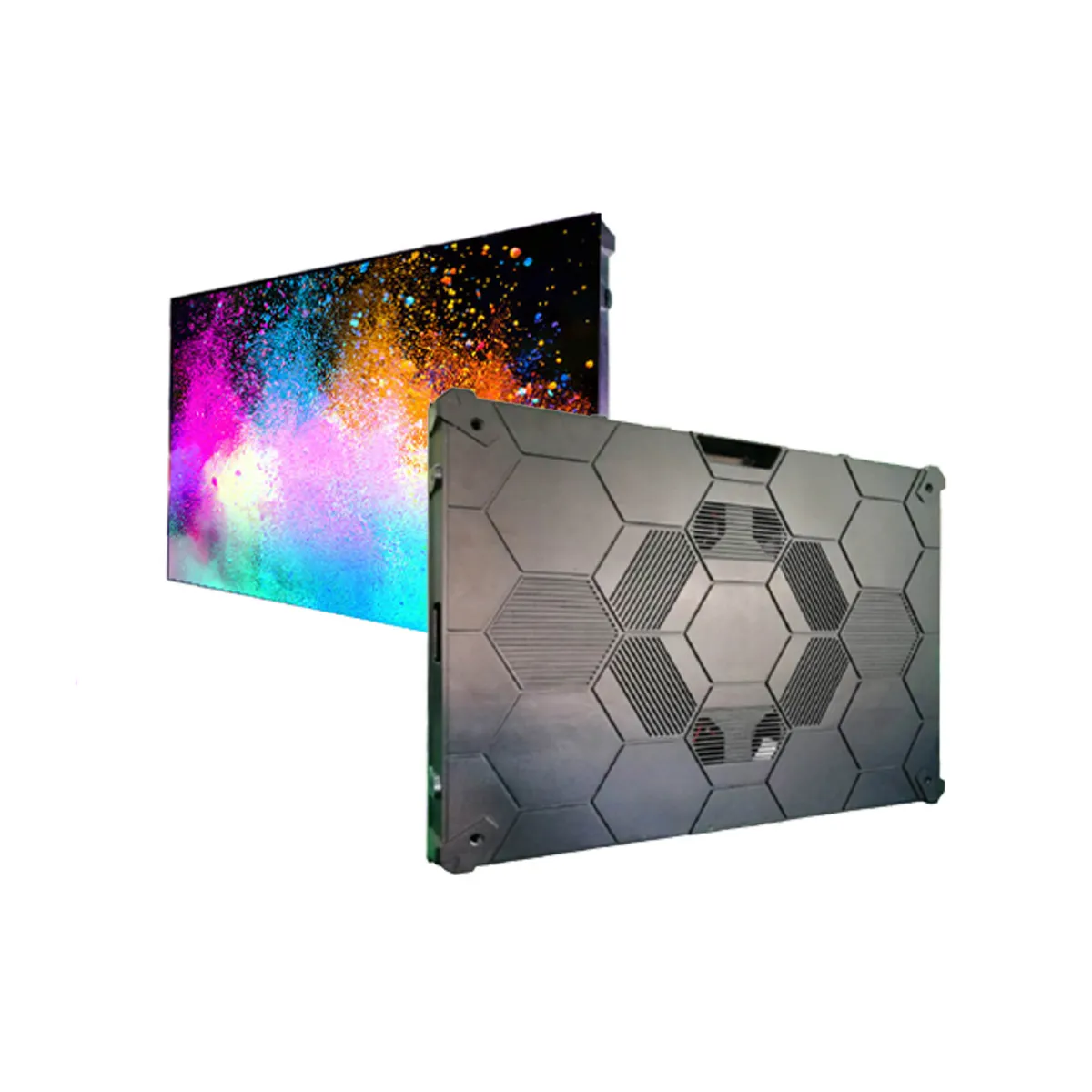

Hikvision DS-D4018CS-1F Indoor LED Display delivers high-resolution visuals for indoor applications. This small-pitch full-color LED cabinet measures 640 mm × 480 mm. It uses SMD triad LEDs for vibrant images. Control rooms, retail spaces, and corporate lobbies in Nairobi and Kenya benefit from sharp displays. Operators view detailed surveillance feeds. Businesses present content clearly. The panel supports seamless video walls.
The cabinet features a pixel pitch of 1.86 mm. It achieves high pixel density for close viewing. Wireless design modules simplify installation. Economic value meets performance needs. It suits fixed indoor setups with reliable operation.

Use Cases and Compatibility
This LED display fits professional indoor environments. In security control centers, form video walls to monitor multiple cameras. Retail stores showcase promotions with bright visuals. Corporate meeting rooms display presentations. Hotels use it for digital signage. Command centers achieve large-scale viewing.
The DS-D4018CS-1F cabinet measures 640 mm × 480 mm × 58.6 mm. It uses 2 × 3 modules per cabinet. Resolution reaches 344 × 258 per unit. Combine multiple cabinets for custom video walls. Support modular brackets like DS-DL116448W (1×1), DS-DL126448W (1×2), DS-DL226448W (2×2). Integrate with Hikvision controllers such as DS-D42C04-H or DS-D42C08-H. Use NovaStar or similar sending cards. Connect via standard interfaces for content management.
Mount on walls or structures for fixed installations. Operate indoors with controlled lighting. Achieve seamless splicing for larger displays. Suit new builds or upgrades in existing facilities.
For premium display solutions in Kenya, visit Threeways Gadget Hub. Browse monitors for complementary setups.

Technical Specifications
Cabinet Parameters

Pixel Pitch: 1.86 mm
Pixel Pitch Category: P1.8
Pixel Configuration: SMD Triad LED
Pixel Density: 288906 dots/m²
Modules Component: 2 × 3
Dimensions (W × H × D): 640 mm × 480 mm × 58.6 mm (25.197″ × 18.898″ × 2.307″)
Resolution: 344 × 258
Cabinet Material: Plastic-Aluminum

Display Performance

Brightness: Approximately 600 nits (typical)
Contrast Ratio: High (specific value varies)
Viewing Angle: Wide horizontal and vertical
Refresh Rate: High for smooth playback
Grey Level: Up to 16 bit

General

Maintenance: Front or rear (wireless design modules)
Power Consumption: Average and max vary by configuration
Working Temperature: 0°C to 40°C typical for indoor
Working Humidity: 10% to 90% (non-condensing)
Installation: Fixed indoor use
Weight: Approximately 5-7 kg per cabinet (net)

The display uses economic components for value. It supports high-quality imaging. Wireless modules reduce cabling. Flatness ensures seamless walls.
Explore desktop computers at Threeways Gadget Hub for content control.

Reliable Performance and Support
Threeways Gadget Hub supplies genuine Hikvision LED displays to Kenyan clients. The Hikvision DS-D4018CS-1F Indoor LED Display includes a manufacturer warranty against defects. Our Nairobi team provides expert support. Receive help with configuration, video wall setup, and maintenance. Access firmware updates promptly. Depend on our expertise for vibrant indoor displays.
