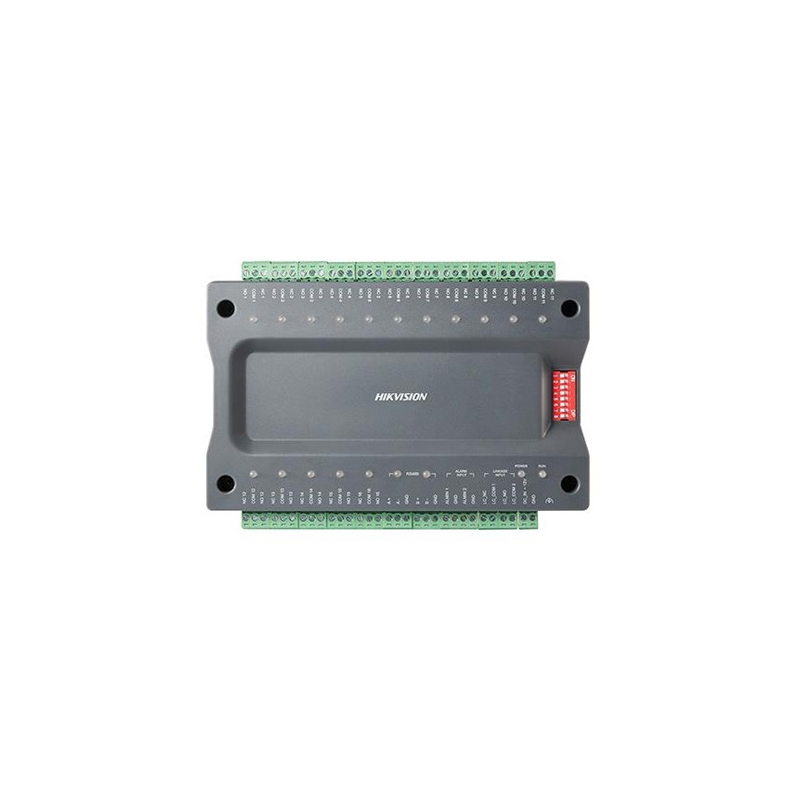

Hikvision DS-K2M0016A Distributed Elevator Controller

Hikvision DS-K2M0016A Distributed Elevator Controller
Hikvision DS-K2M0016A Distributed Elevator Controller provides essential expansion for secure elevator access systems. This sub-controller connects seamlessly to master units. It handles floor button control through relays. Buildings in Nairobi and Kenya gain scalable security. High-rises, offices, apartments, and hotels benefit most. Authorized users reach permitted floors easily. Unauthorized access stays blocked effectively.
The device uses RS-485 links for reliable communication. It supports multiple units per master. Configuration happens via DIP switches. Integration boosts overall building safety. Offline functions maintain operations during disruptions. Events report back to central systems promptly.

Use Cases and Compatibility
This controller fits large-scale elevator setups. In residential towers, it restricts floors to residents only. Guests access lobbies or visitor zones. Office complexes limit employees to work areas. Contractors reach maintenance levels on schedule. Hotels assign guests to room floors via key integration.
Connect up to 8 units to one master like DS-K2210. Each handles 16 relays for floor control. This setup covers up to 128 floors total. Use RS-485 for master-sub links. Set addresses and relay types with 8 DIP switches. Support three relay modes: Call Elevator, Button, Auto Button.
Link to master controllers for event reporting. Integrate with access systems and intercoms. Add alarm inputs for emergencies. Use in new constructions or upgrades. Pair with card readers through the master. Operate in TCP/IP networked environments via master.
For trusted security gear in Kenya, check Threeways Gadget Hub. View compatible monitors for oversight stations.

Technical Specifications
System Parameters

Processor: 32-bit high-performance processor

Interfaces

RS-485 Interface: 2
Alarm Input: 2
Relay Output: 16
Buzzer: 1
Tamper-Proof: 1

General

Power Supply: 12 VDC ±15%
Working Temperature: -40°F to 158°F (-40°C to 70°C)
Working Humidity: 0% to 90% (non-condensing)
Dimensions: 167 mm (L) × 105 mm (W) × 30 mm (H)
Installation: Guide rail mounting

Key Features

Connects up to 16 relays for floor button control
Supports RS-485 communication with master controller
Features 8 DIP switches for address and relay type settings
Allows up to 8 distributed controllers per master (DS-K2210)
Controls elevator via relay outputs
Includes buzzer and tamper-proof protection
Supports three relay types: Call Elevator, Button, Auto Button
Enables event reporting to central system through master linkage

The unit mounts easily on rails. It withstands harsh conditions. Relays activate floor selections securely. DIP settings simplify deployment. Tamper detection alerts on unauthorized access.
Explore desktop computers at Threeways Gadget Hub for management PCs.

Reliable Performance and Support
Threeways Gadget Hub delivers genuine Hikvision products to Kenyan markets. The Hikvision DS-K2M0016A Distributed Elevator Controller includes a manufacturer warranty for defects. Our Nairobi experts provide installation advice and ongoing support. Get help with wiring, DIP configuration, troubleshooting, and integration. Receive timely firmware updates. Rely on our knowledge for smooth elevator security deployments.
