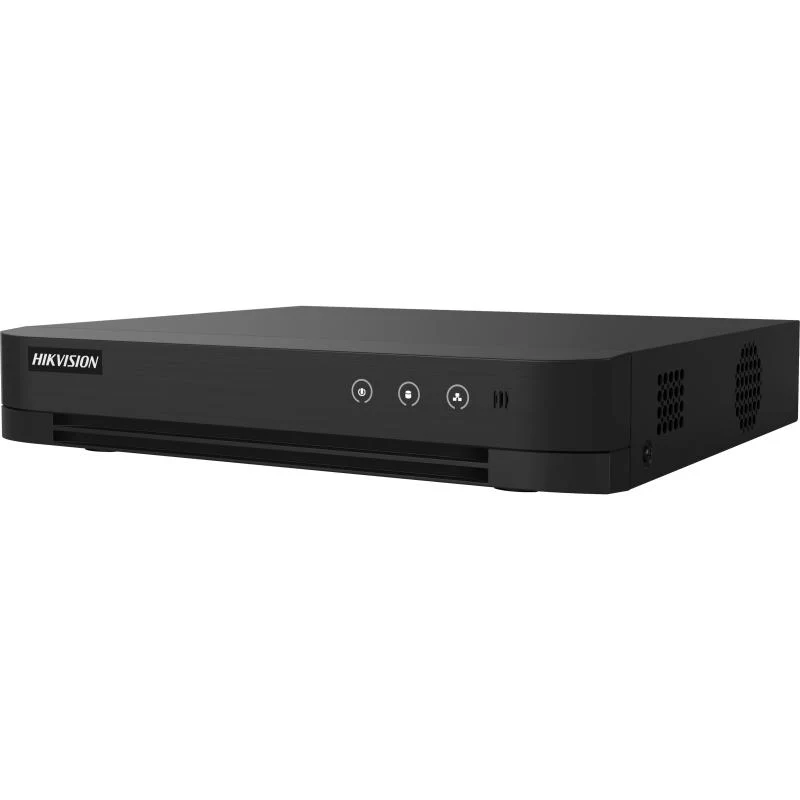

Hikvision DS-7208HGHI-M1 8-Channel DVR

Hikvision DS-7208HGHI-M1 8-Channel DVR delivers reliable high-definition surveillance with advanced motion detection and efficient compression technology. This compact recorder meets the needs of medium-sized installations that require clear footage, intelligent alerts, and seamless remote access.

Hikvision DS-7208HGHI-M1 8-Channel DVR Use Cases

The Hikvision DS-7208HGHI-M1 8-Channel DVR suits a wide range of environments. Homeowners install it to monitor driveways, gardens, and interior spaces. Small retail stores use it for sales floors, storage rooms, and entrances. Offices deploy it across reception areas, hallways, and parking lots. Restaurants apply it to dining sections, kitchens, and delivery zones.

With eight analog channels, users cover multiple viewpoints effectively. This capacity ensures no critical area remains unwatched. Medium-scale businesses benefit from comprehensive protection without complex setups.

The hybrid design supports gradual system upgrades. Installers keep existing analog cameras while adding IP models. This approach reduces replacement costs significantly.

Hikvision DS-7208HGHI-M1 8-Channel DVR Compatibility

The Hikvision DS-7208HGHI-M1 8-Channel DVR works with diverse camera types. It accepts HDTVI, AHD, HDCVI, and CVBS analog signals. Users also connect IP cameras for enhanced resolution.

By default, it adds two IP channels. Enabling IP mode expands this to ten channels total. This flexibility suits evolving security needs.

Analog channels support audio over coaxial cables. Compatible HDTVI cameras transmit sound directly. This feature eliminates the need for separate audio wiring.

Remote access integrates smoothly with the Hik-Connect mobile app. Users view live streams and playback on iOS or Android devices. Push notifications keep them informed instantly.

Hikvision DS-7208HGHI-M1 8-Channel DVR Key Advantages

Motion Detection 2.0 incorporates deep learning algorithms. It distinguishes humans and vehicles from other movements. False alarms from animals, trees, or shadows decrease dramatically.

H.265 Pro+ compression reduces file sizes substantially. Users store weeks of footage on smaller drives. This efficiency lowers long-term storage expenses.

The 1U chassis fits standard racks easily. Simultaneous HDMI and VGA outputs connect to modern and legacy displays. Dual-output capability supports multi-monitor control rooms.

Smart search functions simplify event review. Operators filter recordings by human or vehicle activity. This saves time during investigations.

Technical Specifications

Video and Audio

• Analog Video Input: 8-ch BNC interface (1.0 Vp-p, 75 Ω), supports coaxitron protocol
• Supported Analog Formats: HDTVI (1080p/720p), AHD (1080p/720p), HDCVI (1080p/720p), CVBS
• IP Video Input: 2-ch default (up to 10-ch enhanced), maximum 5 MP resolution
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution: 1080p Lite/720p/WD1/4CIF/VGA/CIF
• Audio Input: 1-ch RCA + 8-ch via coaxial cable
• Audio Output: 1-ch RCA
• Two-Way Audio: Supported on analog channels

Recording and Playback

• Recording Frame Rate: Up to 15 fps at 1080p Lite
• Synchronous Playback: 8 channels simultaneously
• Smart Event Search: Human and vehicle classification

Network and Interfaces

• Network Interface: 1 × RJ45 10/100 Mbps self-adaptive Ethernet
• Total Bandwidth: 72 Mbps incoming
• Remote Connections: Supports up to 64 simultaneous users
• USB Ports: 2 × USB 2.0
• Video Outputs: 1 HDMI + 1 VGA (simultaneous output)

Storage and General

• SATA: 1 port, supports up to 4 TB HDD
• Power Supply: 12 VDC, 1.5 A
• Power Consumption: ≤ 17 W (without HDD)
• Operating Temperature: -10 °C to +55 °C
• Dimensions (W × D × H): 260 × 222 × 45 mm
• Weight: ≤ 1 kg (without hard disk)
