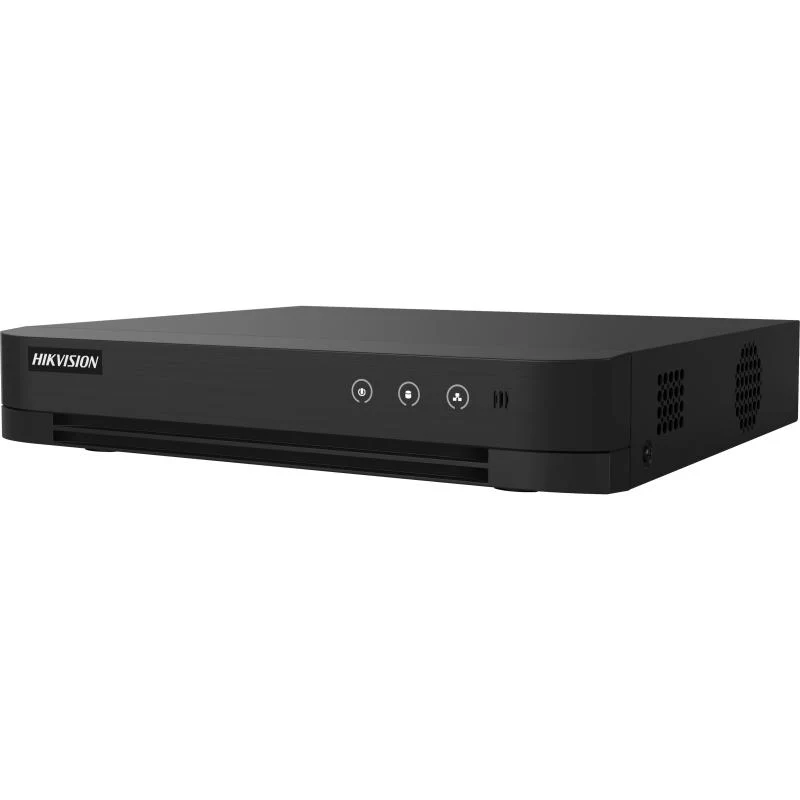

Hikvision DS-7208HGHI-M1 8-Channel DVR

Hikvision DS-7208HGHI-M1 8-Channel DVR
Hikvision DS-7208HGHI-M1 8-Channel DVR delivers reliable high-definition surveillance with advanced motion detection and efficient compression technology. This compact recorder meets the needs of medium-sized installations that require clear footage, intelligent alerts, and seamless remote access.

Hikvision DS-7208HGHI-M1 8-Channel DVR Use Cases
The Hikvision DS-7208HGHI-M1 8-Channel DVR suits a wide range of environments. Homeowners install it to monitor driveways, gardens, and interior spaces. Small retail stores use it for sales floors, storage rooms, and entrances. Offices deploy it across reception areas, hallways, and parking lots. Restaurants apply it to dining sections, kitchens, and delivery zones.
With eight analog channels, users cover multiple viewpoints effectively. This capacity ensures no critical area remains unwatched. Medium-scale businesses benefit from comprehensive protection without complex setups.
The hybrid design supports gradual system upgrades. Installers keep existing analog cameras while adding IP models. This approach reduces replacement costs significantly.

Hikvision DS-7208HGHI-M1 8-Channel DVR Compatibility
The Hikvision DS-7208HGHI-M1 8-Channel DVR works with diverse camera types. It accepts HDTVI, AHD, HDCVI, and CVBS analog signals. Users also connect IP cameras for enhanced resolution.
By default, it adds two IP channels. Enabling IP mode expands this to ten channels total. This flexibility suits evolving security needs.
Analog channels support audio over coaxial cables. Compatible HDTVI cameras transmit sound directly. This feature eliminates the need for separate audio wiring.
Remote access integrates smoothly with the Hik-Connect mobile app. Users view live streams and playback on iOS or Android devices. Push notifications keep them informed instantly.

Hikvision DS-7208HGHI-M1 8-Channel DVR Key Advantages
Motion Detection 2.0 incorporates deep learning algorithms. It distinguishes humans and vehicles from other movements. False alarms from animals, trees, or shadows decrease dramatically.
H.265 Pro+ compression reduces file sizes substantially. Users store weeks of footage on smaller drives. This efficiency lowers long-term storage expenses.
The 1U chassis fits standard racks easily. Simultaneous HDMI and VGA outputs connect to modern and legacy displays. Dual-output capability supports multi-monitor control rooms.
Smart search functions simplify event review. Operators filter recordings by human or vehicle activity. This saves time during investigations.

Technical Specifications
Video and Audio

Analog Video Input: 8-ch BNC interface (1.0 Vp-p, 75 Ω), supports coaxitron protocol
Supported Analog Formats: HDTVI (1080p/720p), AHD (1080p/720p), HDCVI (1080p/720p), CVBS
IP Video Input: 2-ch default (up to 10-ch enhanced), maximum 5 MP resolution
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: 1080p Lite/720p/WD1/4CIF/VGA/CIF
Audio Input: 1-ch RCA + 8-ch via coaxial cable
Audio Output: 1-ch RCA
Two-Way Audio: Supported on analog channels

Recording and Playback

Recording Frame Rate: Up to 15 fps at 1080p Lite
Synchronous Playback: 8 channels simultaneously
Smart Event Search: Human and vehicle classification

Network and Interfaces

Network Interface: 1 × RJ45 10/100 Mbps self-adaptive Ethernet
Total Bandwidth: 72 Mbps incoming
Remote Connections: Supports up to 64 simultaneous users
USB Ports: 2 × USB 2.0
Video Outputs: 1 HDMI + 1 VGA (simultaneous output)

Storage and General

SATA: 1 port, supports up to 4 TB HDD
Power Supply: 12 VDC, 1.5 A
Power Consumption: ≤ 17 W (without HDD)
Operating Temperature: -10 °C to +55 °C
Dimensions (W × D × H): 260 × 222 × 45 mm
Weight: ≤ 1 kg (without hard disk)

Trust and Support
Threeways Gadget Hub supplies only genuine Hikvision products sourced from authorized distributors. Each unit carries the full official manufacturer warranty. Our experienced team in Nairobi offers professional installation guidance, system configuration, and reliable after-sales support. Customers across Kenya enjoy prompt delivery and local expertise. Visit our main website to explore our complete service offerings.
