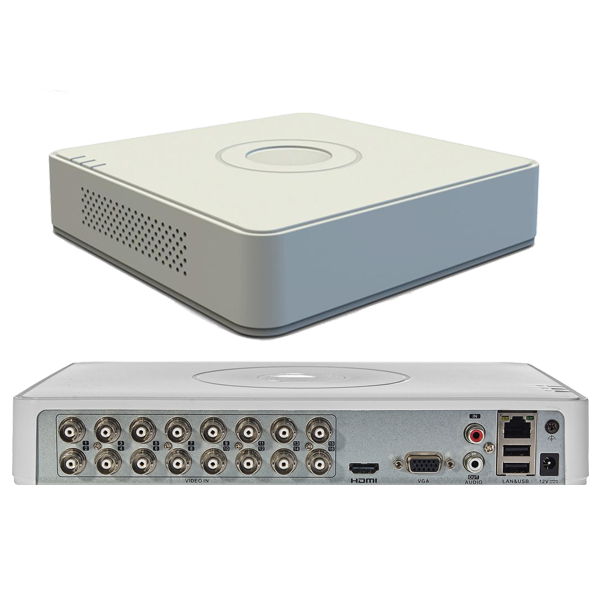

Hikvision DS-7116HGHI-M1 16-Channel DVR

Hikvision DS-7116HGHI-M1 16-Channel DVR provides comprehensive high-definition surveillance with intelligent motion detection and efficient H.265 compression. This compact mini 1U recorder suits large-scale installations needing extensive coverage, accurate alerts, and reliable remote access.

Hikvision DS-7116HGHI-M1 16-Channel DVR Use Cases

The Hikvision DS-7116HGHI-M1 16-Channel DVR excels in expansive environments. Large residential compounds use it for full perimeter and interior protection. Shopping centers deploy it across multiple floors and entrances. Schools apply it to classrooms, hallways, and outdoor areas. Warehouses install it for loading docks, storage racks, and offices.

With sixteen analog channels, users monitor vast areas thoroughly. This setup eliminates blind spots in high-traffic locations. Commercial properties gain complete oversight efficiently.

Hybrid functionality supports mixed camera deployments. Users retain legacy analog cameras while incorporating IP ones. This flexibility enables cost-effective system expansions.

Audio over coaxial cables adds value in interactive scenarios. Retail staff communicate with customers remotely. Security personnel issue warnings directly.

Hikvision DS-7116HGHI-M1 16-Channel DVR Compatibility

The Hikvision DS-7116HGHI-M1 16-Channel DVR integrates multiple signal types. It processes HDTVI, AHD, HDCVI, and CVBS analog inputs. IP cameras connect for higher resolutions up to 5 MP.

Default configuration includes two IP channels. Enhanced mode expands this to eighteen total channels.

All analog channels support coaxial audio transmission. Compatible cameras deliver sound without additional cables.

Remote monitoring works via the Hik-Connect app. Users access live views and recordings on smartphones. The app operates on iOS and Android platforms smoothly.

Hikvision DS-7116HGHI-M1 16-Channel DVR Key Advantages

Motion Detection 2.0 utilizes deep learning technology. It classifies humans and vehicles precisely. False alarms from foliage, lights, or animals reduce significantly.

H.265 Pro+ compression optimizes storage dramatically. Users archive months of footage on single drives. This approach cuts hardware and maintenance costs.

The mini 1U design fits tight spaces easily. Simultaneous HDMI and VGA outputs connect diverse displays. Dual-output supports control room configurations.

Smart search filters events by object type. Investigators locate relevant clips quickly. This feature saves hours during reviews.

Long transmission distances reach 1200 meters for 720p signals. Installers cover large sites without repeaters.

Technical Specifications

Video and Audio

• Analog Video Input: 16-ch BNC (1.0 Vp-p, 75 Ω), supports coaxitron
• HDTVI/AHD/HDCVI Input: 1080p@25/30 fps, 720p@25/30 fps
• CVBS Input: Supported
• IP Video Input: 2-ch (up to 18-ch), up to 5 MP resolution
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution: Up to 1080p Lite@15 fps
• Audio Input: 1-ch RCA + 16-ch via coaxial cable
• Audio Output: 1-ch RCA
• Two-Way Audio: Supported (reuses first audio input)

Recording and Playback

• Recording Frame Rate: 15 fps at 1080p Lite
• Synchronous Playback: 16-ch
• Smart Search: Human/vehicle events

Network

• Network Interface: 1 × RJ45 10/100 Mbps
• Total Bandwidth: 96 Mbps
• Remote Connections: Up to 128 users
• Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, HTTPS

Storage

• SATA Interface: 1 × SATA
• Capacity: Up to 10 TB per disk

Interface

• Video Output: 1-ch HDMI + 1-ch VGA (simultaneous)
• USB Interface: 2 × USB 2.0

General

• Power Supply: 12 VDC, 1.6 A
• Consumption: ≤ 7 W (without HDD)
• Working Temperature: -10 °C to +55 °C
• Dimensions (W × D × H): 285 × 210 × 45 mm
• Weight: ≤ 1.8 kg (without HDD)

Trust and Support

Threeways Gadget Hub supplies genuine Hikvision products from authorized distributors. Each unit includes the full manufacturer warranty. Our Nairobi-based team provides expert guidance on installation, configuration, and troubleshooting. Customers benefit from nationwide delivery and dedicated support. Explore our main website for service details.
