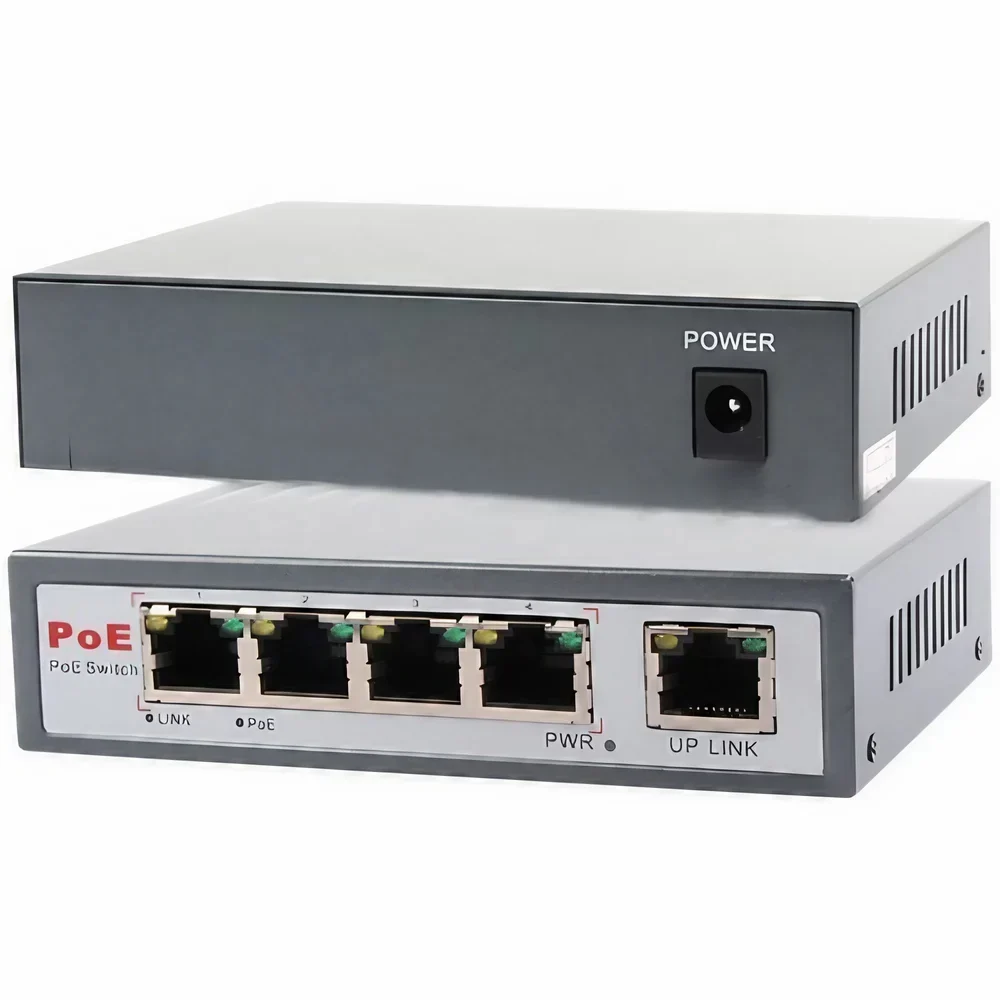

Hikvision DS-3E1505P-EI/M Smart PoE Switch

Hikvision DS-3E1505P-EI/M Smart PoE Switch provides high-speed Gigabit connectivity with reliable PoE power for modern IP surveillance systems.

This compact 5-port unmanaged switch delivers superior performance for demanding camera networks. Businesses and homes in Kenya choose it for fast data transfer and stable power delivery. Retail outlets, offices, small hotels, and residential complexes rely on its Gigabit capabilities. It supports longer cable runs without quality loss. Installation remains simple and efficient. Users enjoy reduced latency. The switch ensures consistent network operation. Many Kenyan security professionals prefer this model for upgraded Gigabit performance.

Why Hikvision DS-3E1505P-EI/M Smart PoE Switch Delivers Excellent Results

Modern installations require higher bandwidth for 4K and higher resolution cameras. This switch offers 4 Gigabit PoE ports. It provides a 65 W total PoE budget. Each port supports up to 30 W power delivery. Cameras receive stable power and data through one cable. Extend mode reaches up to 300 meters at 10 Mbps. Users overcome distance limitations effectively. Plug-and-play operation needs no setup. The rugged metal housing withstands daily use. Fanless design keeps it silent. Long-term reliability fits various Kenyan environments.

Hikvision DS-3E1505P-EI/M Smart PoE Switch suits diverse applications. Small retail stores power 4 high-definition cameras smoothly. Home security setups gain Gigabit speed. Offices connect access points and IP phones. The switch handles high-resolution video streams. It operates reliably in tropical conditions. Wide temperature tolerance matches local weather patterns.

Detailed Use Cases and Compatibility

Hikvision DS-3E1505P-EI/M Smart PoE Switch excels in Gigabit surveillance networks. Connect 4 IP cameras directly. Power and data transmit over Cat5e or better cables. Extend mode supports remote perimeter monitoring. Small warehouses secure entry points effectively. The switch complies with IEEE 802.3af/at standards. It powers a wide range of PoE devices. Compatible with Hikvision cameras and other ONVIF brands. Pair with premium displays from our monitor collection. View crisp live footage. Build efficient control stations using our desktop computers.

Produce reports quickly. Print important documents through our printer collection. Security teams monitor status easily. Clear LED indicators display power and link status. Troubleshooting happens fast. Auto-negotiation adjusts speeds automatically. The switch supports flow control for reliable transmission.

Technical Specifications

• Total Ports: 5 (4 PoE ports + 1 Gigabit uplink port)
• PoE Ports: 4 × 10/100/1000 Mbps RJ-45 (IEEE 802.3af/at compliant)
• Total PoE Budget: 65 W
• Max PoE per Port: 30 W
• Transmission Distance: Up to 300 m in extend mode (at 10 Mbps)
• Standard Mode: Up to 100 m at Gigabit speed
• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.44 Mpps
• MAC Address Table: 4 K
• Power Supply: 48 VDC / 1.35 A (external adapter included)
• Power Consumption: ≤ 5 W (no PoE load), ≤ 75 W (full PoE load)
• Dimensions: 134 × 108 × 42 mm
• Operating Temperature: -10 °C to 40 °C
• Operating Humidity: 5% to 95% (non-condensing)
• Housing: Solid metal case
• Protection: 6 kV surge protection for PoE ports
• Indicators: Power, Link/Act, PoE-MAX, Port status LEDs
• Weight: ≈ 0.58 kg

These specifications ensure high-speed and dependable performance. Components follow international quality standards. Deployment stays straightforward.

Warranty and Support You Can Trust

Threeways Gadget Hub offers genuine Hikvision equipment. Hikvision DS-3E1505P-EI/M Smart PoE Switch includes manufacturer warranty coverage. Local support in Kenya provides prompt assistance. Setup help and troubleshooting services come included. Extended plans offer additional security. Our expert team guides every step. Customers receive reliable post-sales support. Confidence grows through consistent quality.

Learn more from trusted sources:

• Hikvision Official Networking Overview
• IEEE 802.3 PoE Standards
• Gigabit Ethernet Technology Guide

Upgrade to Gigabit PoE today. Order Hikvision DS-3E1505P-EI/M Smart PoE Switch for swift delivery across Kenya.
