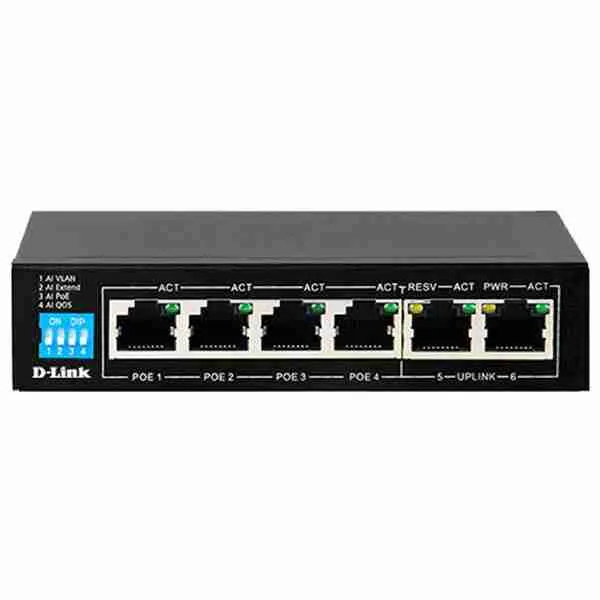

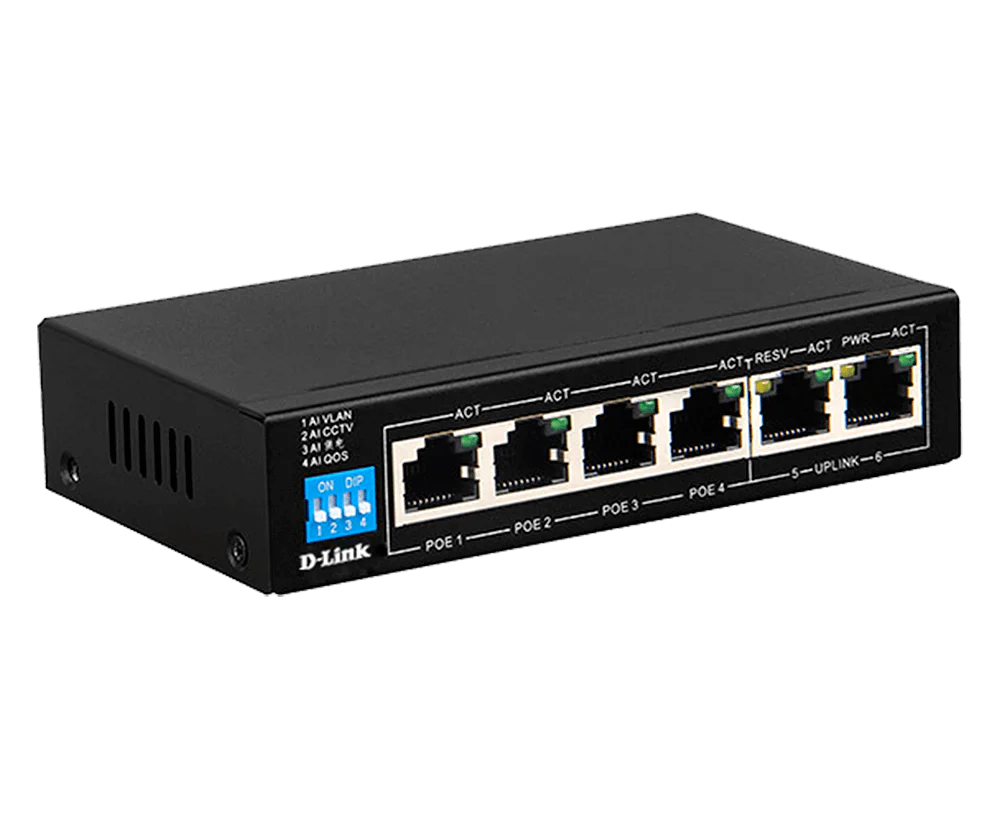

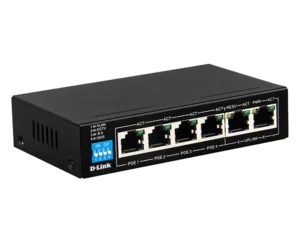

D-Link 6-Port Gigabit PoE Switch – DGS-F1006P

D-Link 6-Port Gigabit PoE Switch – DGS-F1006P
High-Performance Network Switch with Long Reach PoE and Gigabit Uplink Ports

Ideal for Small Business, IP Surveillance, and Office Networks
The D-Link DGS-F1006P 6-Port Gigabit PoE Switch is a smart, cost-effective solution designed for powering and connecting multiple PoE-enabled devices over long distances. With 4 Long Reach PoE ports and 2 dedicated uplink ports, this unmanaged switch simplifies deployment of IP cameras, VoIP phones, access points, and more — even in areas without nearby power outlets.
Supporting PoE distances of up to 250 meters, this switch is perfect for office buildings, surveillance networks, retail setups, or any environment needing stable, high-speed connectivity and centralized power.

🧩 What’s Included

4 × 10/100/1000Mbps PoE Ports (Long Reach Support)

2 × 10/100/1000Mbps Uplink Ports

Up to 250m PoE range in Extend Mode

60W PoE Power Budget

Plug-and-play installation

External power adapter and user guide

⚡ Long Distance PoE for Flexible Installations
The DGS-F1006P features Long Reach PoE that delivers both power and data up to 250 meters — far beyond the 100m limit of standard Ethernet. This makes it ideal for:

Outdoor IP cameras in parking lots or perimeter walls

Wi-Fi access points installed in wide or open areas

Retail environments with spread-out PoE devices

Activate Extend Mode to power and connect distant devices without additional extenders or power outlets.

🚀 Gigabit Uplink Ports for Smooth Network Backbone Integration
With two dedicated Gigabit uplink ports, the switch ensures seamless backhaul connectivity to your router, NVR, or core switch:

Supports high-bandwidth applications like HD video surveillance

Enables uninterrupted streaming and data flow

Avoids PoE port congestion during large file transfers

This setup keeps your network stable, responsive, and future-proof.

🔐 Smart Features for Stable, Uninterrupted Operation
The DGS-F1006P includes essential smart features to maximize performance and safety:

Port-based VLAN support (via DIP switch)

Extend Mode for long-distance PoE

Loop prevention to avoid broadcast storms

Overload protection to safeguard connected devices

Fanless design for quiet, energy-efficient operation

With automatic detection and power allocation, the switch ensures hassle-free performance and device longevity.

🧰 Easy Setup – No Configuration Required
This is a plug-and-play unmanaged switch, meaning:

No software setup or technical skills needed

Just connect your PoE cameras or devices and start using instantly

LED indicators provide real-time status of each port

Ideal for non-technical users or rapid deployment needs

It’s simplicity and speed, built into one device.

🔧 Technical Specifications

Feature
Specification

Ports
4 × 10/100/1000 PoE + 2 × 10/100/1000 Uplink

PoE Budget
60W total

Standards
IEEE 802.3af/at

PoE Distance
Up to 250 meters (Extend Mode)

Power Input
External power adapter

Dimensions
160 x 90 x 28 mm

Operating Temp
0°C to 40°C

🔗 Related Products from Threeways Gadget Hub

D-Link 8-Port PoE Switch with Uplink – DGS-F1009P-E

Hikvision 4-Channel PoE NVR

Ubiquiti UniFi AP AC Lite Access Point

Cat6 Ethernet Cable – 50m

Looking to deploy a full surveillance system? We offer bundled kits and custom setup consultations.

🧠 Frequently Asked Questions (FAQs)
Q: Can this switch power outdoor IP cameras?
Yes. It supports PoE transmission up to 250 meters, ideal for outdoor installations when Extend Mode is enabled.

Q: Does this switch require any configuration?
No. It’s a true plug-and-play device — just connect and power on.

Q: What is the total PoE power budget?
The DGS-F1006P provides up to 60W total, supporting multiple PoE/PoE+ devices simultaneously.

Q: Is it fanless?
Yes. It features a silent, fanless design ideal for office and retail environments.
