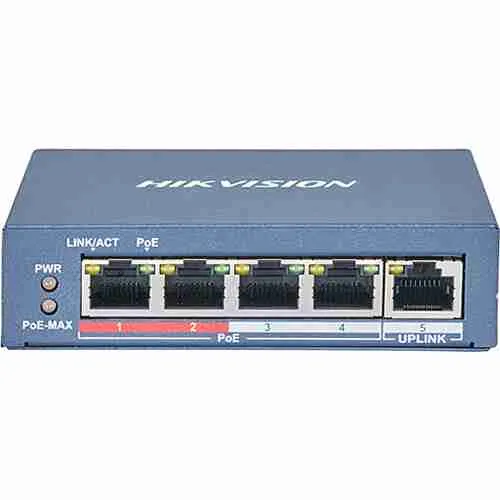

Hikvision DS-3E1105P-EI/M Smart PoE Switch

Hikvision DS-3E1105P-EI/M Smart PoE Switch delivers reliable power and data transmission for small to medium surveillance networks.

This compact 5-port unmanaged switch simplifies IP camera installations. Businesses and homes in Kenya choose it for efficient PoE support. Retail shops, small offices, and residential estates rely on its stable performance. It powers devices without separate adapters. Network setup becomes faster. Users experience fewer connection issues. The switch maintains consistent operation. Many Kenyan installers prefer this model for cost-effective solutions.

Why Hikvision DS-3E1105P-EI/M Smart PoE Switch Performs Effectively

Small networks need simple yet dependable equipment. This switch provides 4 PoE ports. It offers 65 W total PoE budget. Each port delivers up to 30 W. Cameras and access points connect easily. Long-distance transmission reaches 300 meters in extend mode. Users avoid voltage drop problems. Plug-and-play design requires no configuration. The metal casing ensures durability. Long-term reliability suits various environments.

Hikvision DS-3E1105P-EI/M Smart PoE Switch suits everyday applications. Small retail stores power 4 cameras securely. Home security systems gain stable connectivity. Offices connect VoIP phones and Wi-Fi points. The switch operates quietly. Fanless design reduces noise. Kenyan climates do not affect performance. Wide temperature range fits local conditions.

Detailed Use Cases and Compatibility

Hikvision DS-3E1105P-EI/M Smart PoE Switch works well in surveillance setups. Connect 4 IP cameras directly. Power flows through the same cable. Extend mode supports longer cable runs. It suits perimeter monitoring. Small warehouses secure loading areas. The switch complies with IEEE 802.3af/at standards. It powers various PoE devices. Compatible with Hikvision cameras and third-party brands. Pair with high-quality displays from our monitor collection. View live feeds clearly. Use reliable desktop computers for control stations.

Generate incident reports quickly. Print summaries via options in our printer collection. Security teams review footage efficiently. Simple LED indicators show status. Troubleshooting becomes straightforward. The switch supports auto-negotiation. It adjusts speeds automatically.

Technical Specifications

• Total Ports: 5 (4 PoE ports + 1 uplink port)
• PoE Ports: 4 × 10/100 Mbps RJ-45 (IEEE 802.3af/at compliant)
• Total PoE Budget: 65 W
• Max PoE per Port: 30 W
• Transmission Distance: Up to 300 m in extend mode (at 10 Mbps)
• Standard Mode: Up to 100 m at 100 Mbps
• Switching Capacity: 1 Gbps
• Packet Forwarding Rate: 0.744 Mpps
• MAC Address Table: 1 K
• Power Supply: 48 VDC / 1.35 A (external adapter included)
• Power Consumption: ≤ 5 W (without PoE load), ≤ 75 W (with full PoE load)
• Dimensions: 134 × 108 × 42 mm
• Operating Temperature: -10 °C to 40 °C
• Operating Humidity: 5% to 95% (non-condensing)
• Housing: Solid metal case
• Protection: 6 kV surge protection for PoE ports
• Indicators: Power, Link/Act, PoE-MAX, Port status LEDs
• Weight: ≈ 0.58 kg

These specifications guarantee dependable operation. Components meet international standards. Installation remains simple.

Warranty and Support You Can Trust

Threeways Gadget Hub supplies authentic Hikvision products. Hikvision DS-3E1105P-EI/M Smart PoE Switch includes manufacturer warranty coverage. Local support in Kenya responds promptly. Setup guidance and troubleshooting assistance come standard. Extended service plans offer extra protection. Our expert team helps at every stage. Customers receive consistent after-sales service. Reliability builds lasting confidence.

Discover more from trusted resources:

• Hikvision Official Networking Overview
• IEEE 802.3 PoE Standards
• PoE Technology Explained

Simplify your network deployment. Order Hikvision DS-3E1105P-EI/M Smart PoE Switch for fast delivery across Kenya.
