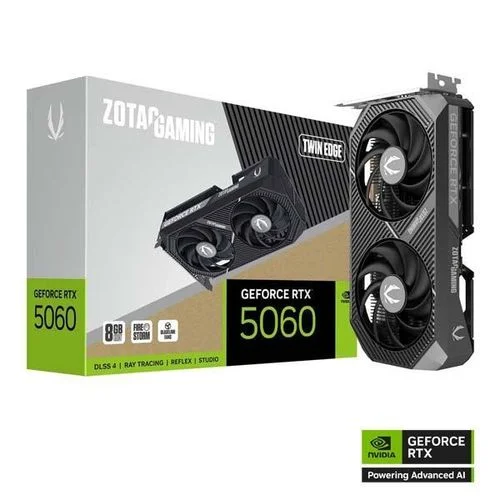

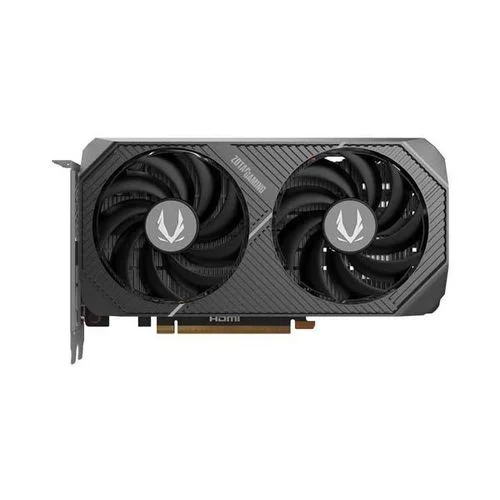

ZOTAC GAMING GeForce RTX 5060 Twin Edge 8GB GDDR7 Graphics Card

The ZOTAC GAMING GeForce RTX 5060 Twin Edge is a compact, high-performance graphics card powered by NVIDIA’s cutting-edge Blackwell architecture. With 8GB of GDDR7 memory, DLSS 4, and a robust cooling system, it delivers smooth frame rates and stunning visuals for gaming and creative workloads. Ideal for small form factor (SFF) builds, this card is perfect for gamers and creators seeking efficiency and power in a compact package.

Why Choose the ZOTAC GAMING GeForce RTX 5060 Twin Edge?

Superior Graphics Performance

The ZOTAC GAMING GeForce RTX 5060 Twin Edge leverages NVIDIA’s Blackwell architecture, featuring 3840 CUDA cores, 30 RT Cores, and 120 Tensor Cores. It delivers up to 19.18 TFLOPS of FP32 performance, ensuring smooth gameplay at 1080p and capable 1440p performance with DLSS 4. The 8GB GDDR7 memory with a 128-bit bus and 448 GB/s bandwidth supports high-resolution textures and ray tracing, making it ideal for modern games and creative applications.

Versatile Applications for Gamers and Creators

This graphics card excels in various scenarios. Gamers enjoy smooth performance in titles like Cyberpunk 2077 or Starfield at 1080p ultra settings, with DLSS 4 boosting frame rates at 1440p. Content creators benefit from CUDA and TensorRT support for tasks like video editing in DaVinci Resolve or AI-driven workflows. Its compact design suits SFF builds, making it a favorite for enthusiasts building high-performance, space-efficient PCs.

Compact and Efficient Design

The ZOTAC RTX 5060 Twin Edge is an SFF-ready card with a 2-slot, 8.7-inch (220.5mm) design, fitting most PC cases. With a 145W TDP and a single 8-pin PCIe power connector, it requires only a 550W PSU, ensuring energy efficiency. The IceStorm 2.0 cooling system, featuring dual 90mm BladeLink fans and composite heatpipes, maintains optimal temperatures, while the metal backplate adds durability.

Advanced Features for Gaming and Productivity

The RTX 5060 Twin Edge supports NVIDIA DLSS 4 with Multi Frame Generation, enhancing frame rates and image quality through AI-driven upscaling and ray reconstruction. This ensures superior visuals and responsiveness in supported games, making it a future-proof choice for next-gen titles. NVIDIA Reflex 2 with Frame Warp further reduces latency, improving competitive gaming performance.

Multi-Display and High-Resolution Support

The card features three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting up to four displays at 4K 480Hz or 8K 165Hz with DSC. It’s VR-ready and HDCP 2.3 compliant, making it ideal for immersive gaming and multi-monitor setups for productivity or digital signage.

Enhanced Cooling and Software

The IceStorm 2.0 cooling system includes pass-through airflow, a full-length heatsink, and FREEZE Fan Stop technology for silent operation at idle. The all-new FireStorm Utility allows users to tweak clock speeds, fan curves, and RGB lighting, enhancing customization. NVIDIA’s Game Ready and Studio Drivers ensure optimized performance for gaming and creative applications.

Technical Specifications

Graphics Performance

• Architecture: NVIDIA Blackwell (4nm process)
• CUDA Cores: 3840
• RT Cores: 30 (4th Generation)
• Tensor Cores: 120 (5th Generation)
• Base Clock: 2280 MHz
• Boost Clock: 2497 MHz
• FP32 Performance: 19.18 TFLOPS

Memory Specifications

• Memory Size: 8GB GDDR7
• Memory Interface: 128-bit
• Memory Clock: 28 Gbps
• Memory Bandwidth: 448 GB/s

Display and Connectivity

• Display Outputs: 3 x DisplayPort 2.1b, 1 x HDMI 2.1b
• Maximum Resolution: 7680 x 4320 @ 165Hz (8K with DSC)
• Multi-Monitor Support: Up to 4 displays
• Graphics Bus: PCIe 5.0 x8

Physical Specifications

• Dimensions: 220.5 x 120.25 x 41.6 mm (8.7” x 4.7” x 1.6”)
• Weight: 1.57 lbs (0.71 kg)
• Cooling: IceStorm 2.0 with dual 90mm BladeLink fans
• Power Consumption: 145W
• Recommended PSU: 550W
• Power Connector: 1 x 8-pin PCIe

Additional Features

• Supported APIs: DirectX 12 Ultimate, OpenGL 4.6, Vulkan
• Software Support: NVIDIA App, FireStorm Utility, NVIDIA Studio
• Warranty: 3 years standard + 2 years after registration

Trust in Quality and Support

At Threeways Gadget Hub, we prioritize reliable products backed by exceptional support. The ZOTAC GAMING GeForce RTX 5060 Twin Edge comes with a three-year standard warranty, extendable to five years with registration. Our team is available for setup, troubleshooting, or inquiries.

Elevate Your Gaming and Creative Setup

The ZOTAC GAMING GeForce RTX 5060 Twin Edge combines compact design, powerful performance, and AI-enhanced features, making it ideal for gamers and creators. Explore our range of graphics cards or browse accessories at Threeways Gadget Hub to enhance your setup. Upgrade your PC with this high-performance graphics card today.
