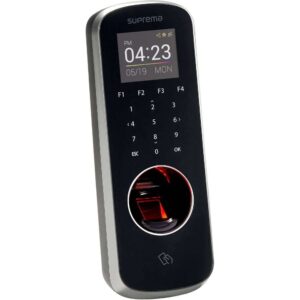

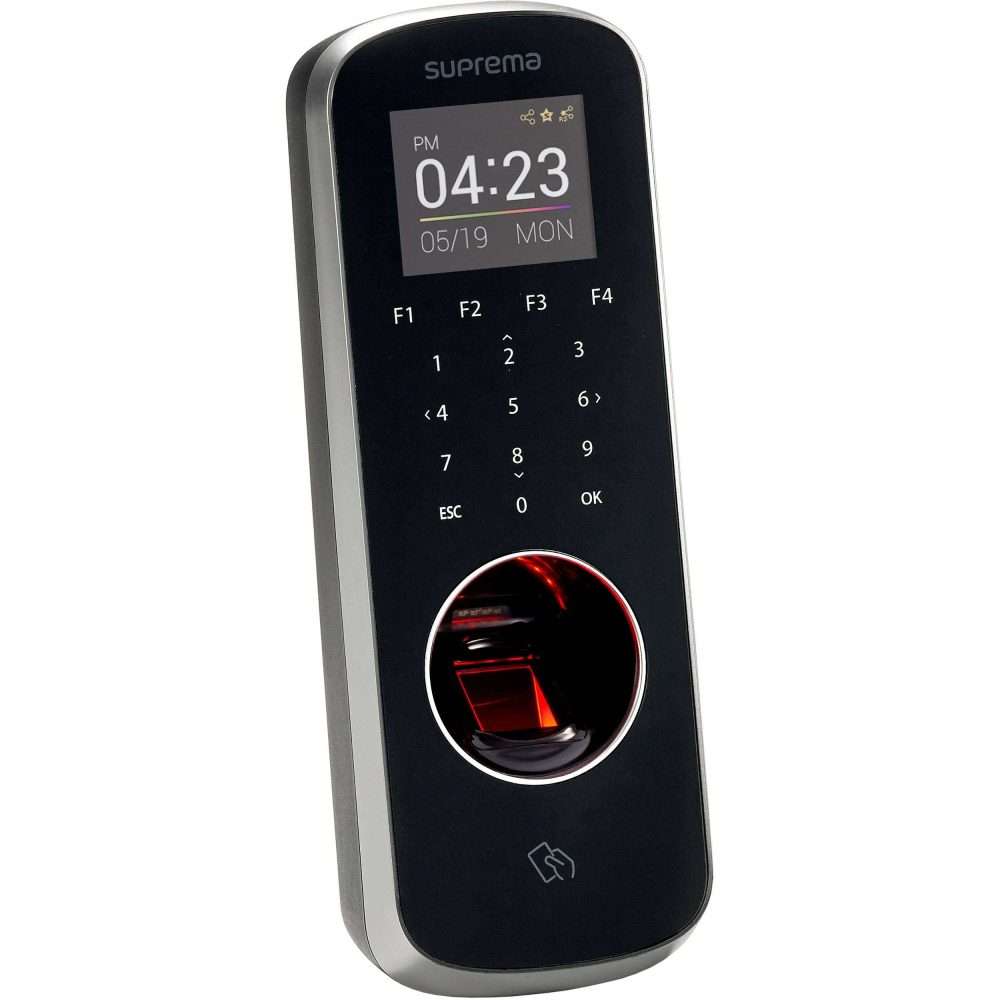

Suprema BioStation L2 Compact RFID Card & Fingerprint Reader

Suprema BioStation L2 Compact RFID Card & Fingerprint Reader delivers comprehensive biometric access control and time attendance in a user-friendly terminal. This device features Suprema’s advanced fingerprint algorithm, a powerful quad-core CPU, and versatile RFID support. It suits offices and facilities perfectly. Businesses gain efficient entry management and attendance tracking.

This reader combines high performance with intuitive operation. It handles large user bases reliably. Professionals benefit from its full time attendance features and secure design.

Versatile Use Cases and Compatibility

Ideal Installation Scenarios

This reader fits wall-mounted setups in offices, schools, hospitals, factories, and corporate buildings. Its compact form with a 2-inch color LCD suits reception areas or entry points. The integrated keypad enables PIN entry or menu navigation easily.

It excels in time attendance applications. Employees clock in and out with fingerprints or cards. Businesses track shifts, overtime, or job codes accurately. Use it for access control in secure zones like server rooms or labs.

Kenyan organizations deploy it for employee management. Hospitals monitor staff attendance. Schools record student or teacher presence. Factories ensure workforce compliance at gates.

Broad Compatibility Options

The device supports multiple RFID formats depending on model. Options include 125kHz EM or 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3, FeliCa, and NFC. This covers legacy cards and modern smart credentials.

Interfaces feature Ethernet for IP networking, RS-485 (master/slave), Wiegand (input/output), TTL inputs, and relay output. It integrates with Suprema BioStar systems or third-party controllers. Tamper detection enhances security.

For biometric standards information, visit this NIST biometric guidelines resource. Explore access protocols from this SIA overview. Learn time attendance best practices at this CISA physical security guide.

Discover related solutions at Threeways Gadget Hub main site. Browse desktop computers and monitors for management stations. Check full desktop computers range.

Technical Specifications

Core Hardware Details

Model Variants: BSL2-OE (125kHz EM), BSL2-OM (13.56MHz MIFARE/DESFire/FeliCa/NFC)

Fingerprint

• Sensor Type: Optical (OP6 high-precision)
• Resolution: 500 dpi
• Image Size: 272 x 320 pixels
• Image Bit Depth: 8 bits, 256 grayscale
• Template Formats: SUPREMA / ISO 19794-2 / ANSI 378
• Extractor / Matcher: Suprema algorithm, MINEX certified
• Live Fingerprint Detection: Supported

Credential Support

RF Options

• Frequencies: 125kHz EM or 13.56MHz HF
• Supported Cards: EM, MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3, FeliCa, NFC
• Read Range: Up to 50 mm (MIFARE/DESFire/EM), up to 30 mm (FeliCa)

Capacity

• Max. User (1:1): 500,000
• Max. User (1:N): 100,000
• Max. Credential (1:1): Fingerprint 500,000 / Card 500,000 / PIN 500,000
• Max. Credential (1:N): Fingerprint 100,000 / Card 200,000
• Max. Text Log: 1,000,000

Processing and Interface

CPU: 1.2 GHz Quad Core Memory: 2 GB Flash + 256 MB RAM Crypto Chip: Supported Display: 2” color TFT LCD (220 x 176 pixels) Sound: 16-bit Hi-Fi Keypad: 3 x 4 numeric touch keypad LED: Multi-color Interfaces

• Ethernet: 10/100 Mbps, auto MDI/MDI-X
• RS-485: 1ch (Master/Slave selectable)
• Wiegand: 1ch (Input/Output selectable)
• TTL Input: 2ch
• Relay: 1 (Max. 30 VDC, 2A resistive)
• Tamper: Supported

Power and Environment

Power: DC 12V, Max 600 mA (recommended min 1.5A adapter) Operating Temperature: -20°C to 50°C Storage Temperature: -40°C to 70°C Operating Humidity: 0% to 80%, non-condensing Storage Humidity: 0% to 90%, non-condensing

Physical

• Dimensions (WxHxD): 70.9 x 200.9 x 44.3 mm (bottom) / 34.2 mm (top)
• Weight: Device 280 g, Bracket 61 g

Certifications: CE, UKCA, KC, FCC, BIS, RoHS, REACH, WEEE

Reliable Support and Warranty

Threeways Gadget Hub backs every Suprema BioStation L2 Compact RFID Card & Fingerprint Reader with full manufacturer warranty coverage. Local technical support in Nairobi assists with setup, configuration, and troubleshooting. Our team offers prompt service for Kenyan clients. Purchase confidently from a trusted supplier dedicated to quality biometric solutions.

Explore more in gaming peripherals. View printers category for business needs. Check POS systems.

This reader features up to 150,000 matches per second for rapid authentication. The quad-core CPU ensures smooth operation even with large databases. Suprema’s algorithm delivers high accuracy with varied fingerprints.

The intuitive 2-inch LCD and touch keypad simplify user interaction. Full time attendance functions include job codes, shifts, and reports. Live finger detection prevents spoofing reliably.

Installation is straightforward. Mount the bracket securely. Connect power and network. Wire interfaces as required. Enroll users via the built-in interface or BioStar software.

Businesses integrate it into IP networks easily. Ethernet supports remote management. Relay enables direct lock control. High capacity scales to enterprise levels.

In Kenya’s conditions, wide temperature tolerance ensures reliability. The design suits indoor wall mounting professionally. Hi-Fi sound and multi-color LED provide clear feedback.

Overall, this reader offers robust performance, extensive features, and ease of use. It meets Kenyan access and attendance demands effectively.
