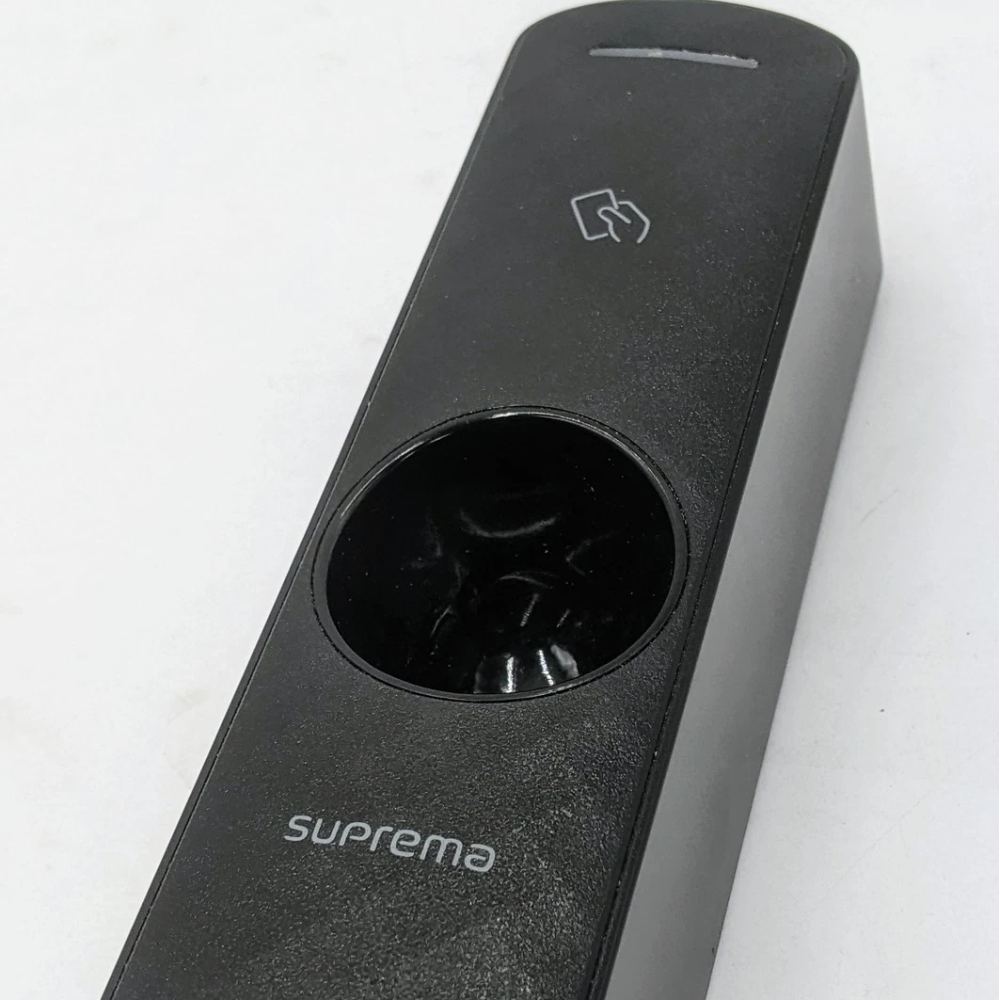

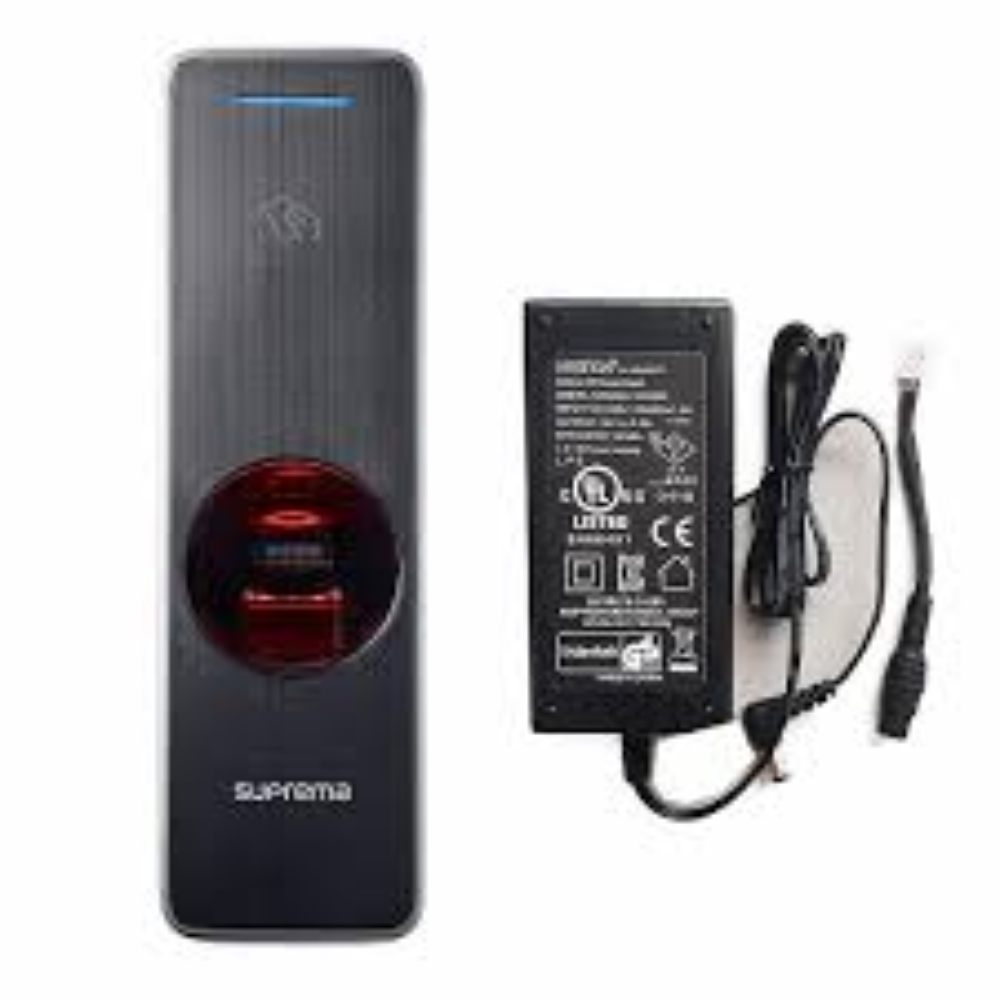

Suprema BioEntry W2 Fingerprint Reader (Dual RFID)

Suprema BioEntry W2 Fingerprint Reader (Dual RFID) provides rugged outdoor biometric access control with exceptional performance. This device integrates advanced fingerprint technology, dual-frequency RFID, and mobile credential support in a compact, durable housing. It suits demanding perimeter security perfectly. Organizations gain fast, secure authentication in harsh weather.

This reader offers class-leading speed and reliability. It handles high user volumes effortlessly. Businesses benefit from flexible credential options and robust protection.

Versatile Use Cases and Compatibility

Ideal Installation Scenarios

This reader thrives at outdoor gates, perimeter doors, parking barriers, and exposed entry points. Its slim mullion design fits narrow frames, glass surfaces, or metal structures seamlessly. Install it on factory perimeters or campus boundaries confidently.

It excels in offices, schools, hospitals, warehouses, and industrial sites across Kenya. Use fingerprint for secure staff access in high-risk areas. Add RFID or mobile for quick visitor entry. The device supports networked or standalone modes effectively.

Businesses secure external loading docks reliably. Hospitals protect emergency entrances outdoors. Schools control playground gates. Factories monitor shift worker access points.

Broad Compatibility Options

The reader features dual-frequency RFID for broad credential support. It reads 125kHz EM and HID Prox alongside 13.56MHz smart cards. Formats include MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3, FeliCa, and iCLASS variants depending on model.

Mobile credentials work via NFC and BLE from smartphones. This adds modern convenience without physical cards.

Interfaces include Ethernet, RS-485 with OSDP V2, Wiegand, TTL inputs, and relay output. It integrates with Suprema controllers or third-party systems. PoE simplifies wiring for remote locations.

For biometric standards details, visit this NIST biometric guidelines resource. Explore OSDP protocol from this SIA overview. Learn outdoor access best practices at this CISA physical security guide.

Discover related products at Threeways Gadget Hub main site. Browse desktop computers and monitors for central monitoring. Check full desktop computers range.

Technical Specifications

Core Hardware Details

Model Variants: BEW2-ODPB (Dual RFID EM + MIFARE/DESFire), others for HID/iCLASS

Fingerprint

• Sensor Type: Optical (OP5 high-precision)
• Resolution: 500 dpi
• Image Size: 272 x 320 pixels
• Image Bit Depth: 8 bits, 256 grayscale
• Template Formats: SUPREMA / ISO 19794-2 / ANSI 378
• Extractor / Matcher: Suprema algorithm, MINEX certified
• Live Fingerprint Detection: Supported (HW + SW-based)

Credential Support

RF Options

• Frequencies: 125kHz + 13.56MHz
• Supported Cards: EM, HID Prox (select models), MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3, FeliCa, iCLASS SE/SR/Seos (select models)
• Mobile: NFC, BLE
• Read Range: Up to 50 mm (MIFARE/DESFire/EM/iCLASS), up to 30 mm (FeliCa/HID Prox)

Capacity

• Max. User: 500,000 (1:1 mode)
• Max. Credential (1:N): 100,000 (fingerprint)
• Max. Credential (1:1): 500,000 (fingerprint/card)
• Max. Text Log: 1,000,000

Processing and Interface

CPU: 1.2 GHz Quad Core Memory: 2 GB Flash + 256 MB RAM Crypto Chip: Supported LED: Multi-color Sound: Multi-tone Buzzer

Interfaces

• Ethernet: 10/100 Mbps, auto MDI/MDI-X
• RS-485: 1 ch (Master/Slave selectable), OSDP V2 compliant
• Wiegand: 1 ch (Input/Output selectable)
• TTL Input: 2 ch
• Relay: 1 (2 A @ 30 VDC resistive, 1 A inductive)
• PoE: Supported (IEEE 802.3af)
• Tamper: Supported

Power and Environment

Power: 12 V DC, Max 0.5 A / PoE Operating Temperature: -20°C to 50°C Storage Temperature: -40°C to 70°C Operating Humidity: 0% to 80%, non-condensing Ingress Protection: IP67 (dust and waterproof) Impact Protection: IK09 (vandal-resistant)

Physical

• Dimensions (WxHxD): 50 x 172 x 43.4 mm (bottom) / 38.1 mm (top)
• Weight: Device 251 g, Bracket 43 g

Certifications: CE, UKCA, KC, FCC, RoHS, REACH, WEEE, ETL UL 294

Reliable Support and Warranty

Threeways Gadget Hub backs every Suprema BioEntry W2 Fingerprint Reader (Dual RFID) with full manufacturer warranty coverage. Local technical support in Nairobi handles setup, integration, and troubleshooting promptly. Our team delivers reliable assistance for Kenyan installations. Buy confidently from a trusted supplier focused on quality security solutions.

Explore more in gaming peripherals. View printers category for office needs. Check POS systems.

This reader features a powerful quad-core CPU for world’s fastest matching speeds. Suprema’s advanced algorithm ensures high accuracy with worn or dirty fingers. Live finger detection blocks spoofing from fake materials effectively.

IP67 rating protects against heavy rain, dust, and submersion. IK09 vandal resistance withstands impacts in exposed areas. Wide temperature range suits Kenya’s climate variations.

Dual-frequency RFID supports legacy and modern cards in one device. Users present cards, tags, or phones conveniently. BLE enables hands-free mobile access.

Installation is simple. Mount the bracket securely. Connect power via PoE or DC. Wire interfaces as needed. Enroll fingerprints following Suprema guidelines.

Businesses upgrade systems seamlessly. OSDP V2 adds secure communication. Relay controls locks directly. High capacity scales to large organizations.

In outdoor high-traffic zones, rapid authentication prevents queues. Tamper alerts enhance security. Multi-color LED and buzzer provide clear feedback.

The slim design maintains professional aesthetics. It fits modern facades without bulk.

Overall, this reader delivers top-tier outdoor performance, flexibility, and durability. It addresses Kenyan access control demands effectively.
