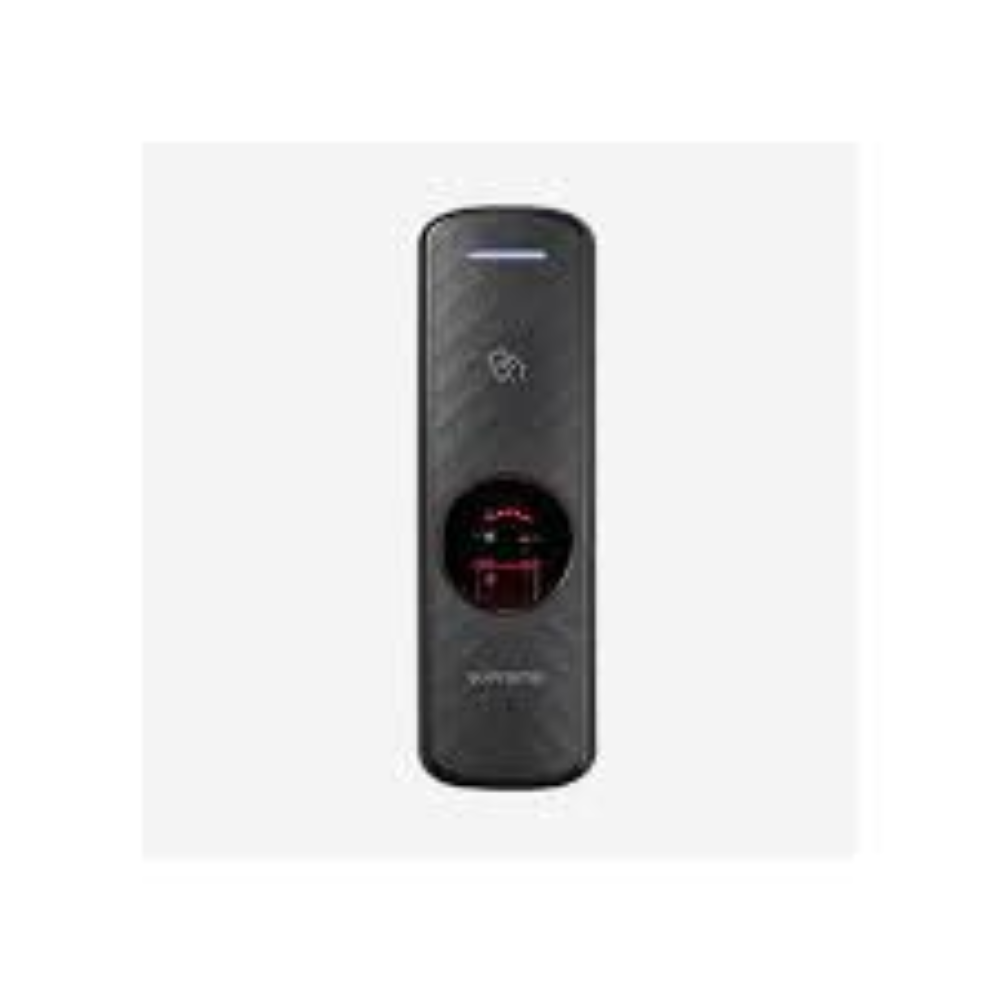

Suprema BioEntry P2 Compact IP Fingerprint Device (Dual RFID + OP6 Optical Sensor)

Suprema BioEntry P2 Compact IP Fingerprint Device (Dual RFID + OP6 Optical Sensor) offers high-performance biometric access in a sleek, mullion-type form. This device combines Suprema’s latest fingerprint algorithm with a powerful 1.0 GHz CPU and high-precision OP6 optical sensor. It suits narrow installations perfectly. Businesses achieve fast, secure entry with versatile credentials.

This reader enhances access control efficiency. It supports dual-frequency RFID for broad compatibility. Users experience quick matching and reliable operation.

Versatile Use Cases and Compatibility

Ideal Installation Scenarios

This device fits narrow door frames, glass doors, turnstiles, or slim entrances due to its compact mullion design. The slim profile measures 50 mm wide. It blends into modern architecture seamlessly.

It works well in offices, schools, hospitals, factories, and warehouses across Kenya. Use fingerprint for secure staff access in restricted zones. Add RFID for visitor or contractor entry. The IP-rated build handles semi-exposed areas effectively.

Businesses secure main entrances or internal doors. Hospitals protect labs or pharmacies. Schools control staff rooms. Factories manage machinery access points.

Broad Compatibility Options

The device supports dual-frequency RFID technology. It reads 125kHz EM (and HID Prox in select models) plus 13.56MHz smart cards. Formats include MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa, iCLASS SE/SR/Seos (model-dependent), and NFC.

Interfaces feature Ethernet, RS-485 (selectable master/slave), Wiegand (input/output), TTL inputs, and relay output. It connects to Suprema systems or third-party controllers. Tamper detection adds security.

For biometric standards, visit this NIST resource on biometric guidelines. Explore access protocols at this SIA overview. Learn centralized security benefits from this CISA physical security guide.

Discover related solutions at Threeways Gadget Hub main site. Browse desktop computers and monitors for monitoring setups. Check full desktop computers range.

Technical Specifications

Core Hardware Details

Model Variants: BEP2-OD (EM + MIFARE/DESFire/FeliCa), BEP2-OA (EM/HID Prox + MultiCLASS including iCLASS)

Fingerprint

• Sensor Type: Optical (OP6 high-precision)
• Resolution: 500 dpi
• Image Size: 272 x 320 pixels
• Image Bit Depth: 8 bits, 256 grayscale
• Template Formats: SUPREMA / ISO 19794-2 / ANSI 378
• Extractor / Matcher: Suprema algorithm, MINEX certified
• Live Fingerprint Detection: Supported

Credential Support

RF Options

• Frequencies: 125kHz + 13.56MHz dual-band
• Supported Cards: EM, HID Prox (OA), MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa, iCLASS SE/SR/Seos (OA), NFC
• Read Range: Up to 50 mm (MIFARE/DESFire/EM/HID Prox/iCLASS), up to 30 mm (FeliCa)

Capacity

• Max. User (1:1): 10,000
• Max. User (1:N): 10,000
• Max. Credential (1:1): Fingerprint 10,000 / Card 10,000 / PIN 10,000
• Max. Credential (1:N): Fingerprint 10,000
• Max. Text Log: 1,000,000

Processing and Interface

CPU: 1.0 GHz Memory: 8GB Flash + 64MB RAM Crypto Chip: Supported LED: Multi-color Sound: Multi-tone Buzzer

Interfaces

• Ethernet: 10/100 Mbps, auto MDI/MDI-X
• RS-485: 1ch (Master/Slave selectable)
• Wiegand: 1ch (Input/Output selectable)
• TTL Input: 2ch
• Relay: 1 (1 A @ 30 VDC resistive)
• Tamper: Supported

Power and Environment

Power: DC 12 V, Max 600 mA (recommended adapter 12 V, min 1.5 A) Operating Temperature: -20°C to 50°C Storage Temperature: -40°C to 70°C Operating Humidity: 0% to 80%, non-condensing Storage Humidity: 0% to 90%, non-condensing

Physical

• Dimensions (WxHxD): 50 x 164 x 37.5 mm
• Weight: Device 162 g, Bracket 39 g

Certifications: CE, FCC, KC, RoHS, REACH, WEEE

Reliable Support and Warranty

Threeways Gadget Hub supports every Suprema BioEntry P2 Compact IP Fingerprint Device (Dual RFID + OP6 Optical Sensor) with full manufacturer warranty coverage. Local technical assistance in Nairobi handles setup, configuration, and issues quickly. Our team provides expert guidance for installations. Purchase confidently from a trusted Kenyan supplier committed to quality biometric solutions.

Explore more options in gaming peripherals. View printers category for office needs. Check POS systems.

This device delivers world’s best matching speeds with its 1.0 GHz CPU. The OP6 sensor captures clear images reliably. Suprema’s algorithm handles varied finger conditions effectively.

Dual-band RFID reads multiple card types in one unit. This reduces hardware needs. NFC adds smartphone credential options.

Installation is straightforward. Mount the bracket first. Connect power and network cables. Wire interfaces securely. Enroll fingerprints per Suprema guidelines.

Businesses integrate it into IP networks easily. Ethernet enables remote management. Relay supports direct lock control. High log capacity tracks events thoroughly.

In Kenya’s climate, wide temperature tolerance ensures performance. The compact design suits aesthetic requirements. Multi-color LED and buzzer give clear user feedback.

Overall, this device balances performance, versatility, and compactness. It meets Kenyan organizations’ access control needs effectively.
