JAKEMY JM-9205A Digital Multimeter

JAKEMY JM-9205A Digital Multimeter provides accurate electrical measurements in a compact handheld design. This reliable tool features a large LCD display and essential functions for voltage, current, resistance, and more. It suits professionals, students, and hobbyists needing dependable diagnostics for circuits and devices.

Versatile Use Cases and Compatibility

This multimeter works well in workshops, electronics labs, automotive troubleshooting, and home repairs. Technicians measure DC and AC voltage in power supplies, batteries, and outlets. It checks current draw in circuits and devices for efficiency analysis.

Users test resistance in resistors, continuity in wires, and diodes in rectifiers or LEDs. Capacitance measurement verifies capacitors in filters or timing circuits. Transistor hFE testing assesses gain in amplifiers or switches.

The tool identifies shorts, opens, or faulty components during repairs. It supports school experiments, factory maintenance, and amateur electronics projects. The overload protection safeguards the meter and user during unexpected high inputs.

Compatibility includes standard test leads for probes on PCBs, terminals, or connectors. It handles typical low-voltage electronics up to 1000V DC and 750V AC. The 9V battery powers operation for portable use in Nairobi field work or bench testing.

For complementary electronics tools, browse our storage category. Discover more testing and repair gear at Threeways Gadget Hub.

Technical Specifications

Measurement Ranges and Accuracy

• DC Voltage: 200mV / 2V / 20V / 200V / 1000V ±(0.5% +1)
• AC Voltage: 200mV / 2V / 20V / 200V / 750V ±(0.8% +3)
• DC Current: 20mA / 200mA / 20A ±(0.8% +1) (some ranges 2mA start)
• AC Current: 20mA / 200mA / 20A ±(1% +3)
• Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ / 200MΩ ±(2.5% +3) (up to 2000MΩ in variants)
• Capacitance: 2nF / 20nF / 200nF / 2μF / 20μF / 200μF
• Diode Test: Yes (forward voltage display)
• Continuity Buzzer: Yes (audible alert for low resistance)
• Transistor hFE: Yes (NPN/PNP measurement)

Display and Build

• Display: Large LCD (3-1/2 digits, max 1999 counts)
• Input Impedance: 10MΩ on voltage ranges
• Power Supply: 9V battery (included in most packages)
• Auto Power Off: Yes (saves battery life)
• Overload Protection: Yes with fuses and indicators
• Low Battery Indication: Yes
• Data Hold: Yes (freezes reading)
• Dimensions: Approx. 190 x 90 x 30 mm
• Weight: Around 300-350g (with battery)

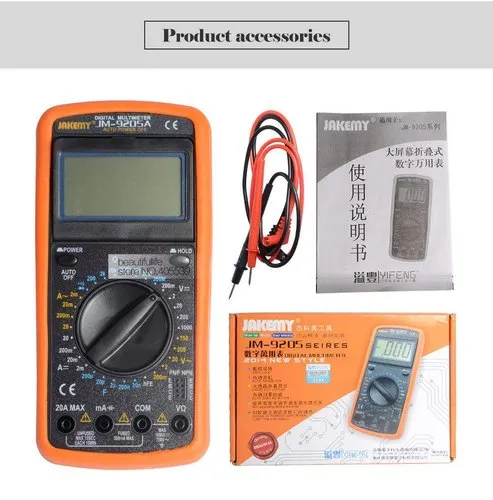

• Accessories: Test leads, manual, spare fuse

The rotary switch selects functions and ranges easily. The sturdy housing withstands workshop use. High accuracy suits most non-professional precision needs.

Review multimeter standards from IEEE resources. Explore electrical measurement guidelines at IEC. For safety and testing concepts, refer to UL standards.

Reliable Performance with Strong Support

Threeways Gadget Hub supplies genuine JAKEMY products to customers in Nairobi and across Kenya. The JAKEMY JM-9205A Digital Multimeter includes manufacturer warranty coverage. It addresses defects with replacement support when applicable. Our local team offers guidance on safe usage, range selection, and troubleshooting readings. We provide prompt assistance for any concerns. Purchase confidently knowing expert help remains available nearby.

This multimeter combines essential functions with user-friendly operation. It delivers consistent readings for everyday diagnostics. The large display improves visibility in various lighting. Overload and low-battery alerts enhance safety. Users value the auto power-off for extended battery life. Many choose it as an affordable upgrade for basic testing. It handles common electrical checks reliably in local conditions. The capacitance and hFE features add versatility. Professionals appreciate the robust build and clear indications. Overall, this tool offers practical, high-value performance for electronics measurement and repair tasks.
