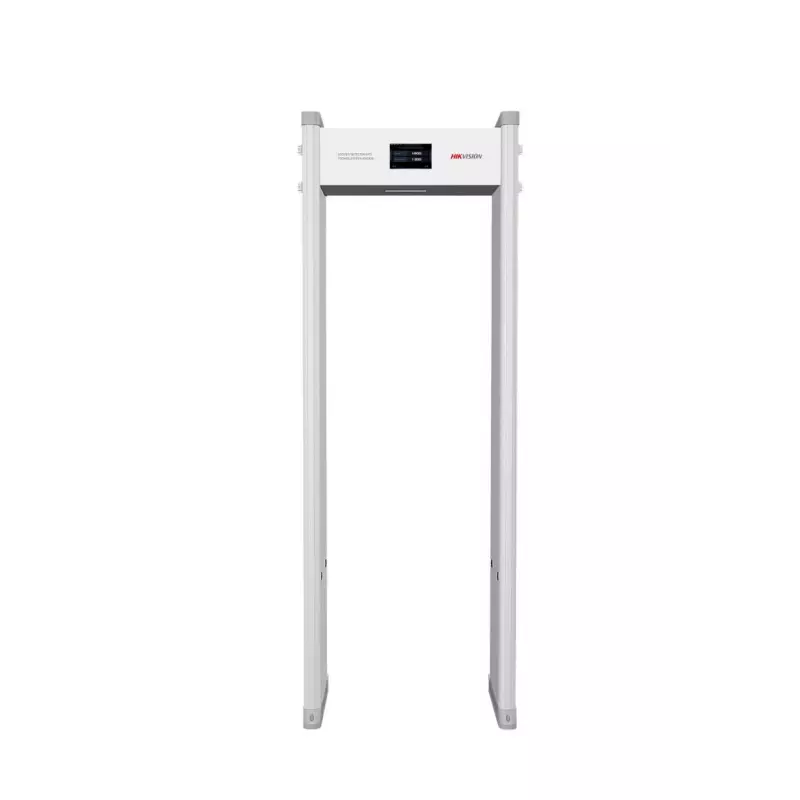

Hikvision ISD-SMG1118L Walkthrough Metal Detector

Hikvision ISD-SMG1118L Walkthrough Metal Detector provides accurate multi-zone metal detection for secure entrances. This advanced gate identifies prohibited items reliably. It suits high-traffic locations in Nairobi and Kenya. Security personnel screen visitors efficiently. Facilities prevent threats effectively. The detector maintains smooth flow while ensuring safety.

The system features 18 detection zones. It locates metals precisely on the body. Operators view alarms on a clear display. Networking enables remote management. Modular design simplifies installation. It detects small objects without false alarms often.

Use Cases and Compatibility

This detector fits demanding security checkpoints. In airports and transport hubs, screen passengers for weapons. Courts and government offices restrict unauthorized metals. Schools and hospitals secure entrances. Corporate parks and events control crowds. Prisons and logistics centers verify items.

The ISD-SMG1118L handles ferrous and non-ferrous metals. Detect coin-sized objects reliably. Support up to 18 zones for accurate positioning. Use infrared sensors for people counting. Integrate with HikCentral Professional platform. Network via RJ45 for centralized control. Configure sensitivity remotely through web interface.

Adjust zones independently. Set 0-999 sensitivity levels. Choose from 20 frequencies to avoid interference. Apply pre-loaded or custom settings. Output alarms via relays. Work in various environments. Suit indoor installations. Operate with remote controller or PC.

For trusted security inspection in Kenya, visit Threeways Gadget Hub. Explore monitors for control stations.

Technical Specifications

Detection Parameters

• Smallest Detected Metals: Coin-sized metals
• Number of Detection Zones: 18
• Detection Accuracy: 1 coin-sized metal in highest sensitivity; no miss/false alarms
• Ultra-Low Detection Height: Metals >3 cm above ground trigger alarm
• Sensitivity Levels: 0-999 adjustable
• Pre-loaded Settings: 30
• Custom Settings: 20
• Working Frequencies: 20 available

Display and Interface

• Display Type: 7-inch color LCD
• Display Information: Menu, pass-through count, metal alarm count, status
• Configuration Method: Remote controller or web interface
• Network Interface: RJ45
• Alarm Output: 2 relay outputs

General

• Power Supply: 100 VAC to 240 VAC, 50/60 Hz
• Power Consumption: <25 W
• Operating Temperature: -20°C to 55°C (-4°F to 131°F)
• Operating Humidity: 10% to 95% (non-condensing)
• Protection Level: IP41
• Overall Dimensions: 2200 mm (H) × 840 mm (W) × 600 mm (D)
• Passageway Dimensions: 2000 mm (H) × 710 mm (W) × 500 mm (D)
• Weight: <75 kg

Key Features

• Multi-zone alarm with position indication
• Networking for platform management
• Power-on self-diagnosis
• Flying object alarm function
• Modular design for easy transport/maintenance
• People counting and alarm statistics

The detector uses strong anti-interference technology. It includes self-test on startup. Support traffic indicators on both sides. Provide visible and audible alarms.

Browse desktop computers at Threeways Gadget Hub for integrated management.

Reliable Performance and Support

Threeways Gadget Hub supplies genuine Hikvision detectors to Kenyan clients. The Hikvision ISD-SMG1118L Walkthrough Metal Detector includes a manufacturer warranty against defects. Our Nairobi team offers expert support. Receive guidance on installation, sensitivity tuning, networking, and maintenance. Access firmware updates promptly. Depend on our expertise for effective security screening.

Refer to Hikvision’s metal detectors overview here, security inspection products here, and detection guidelines here.
