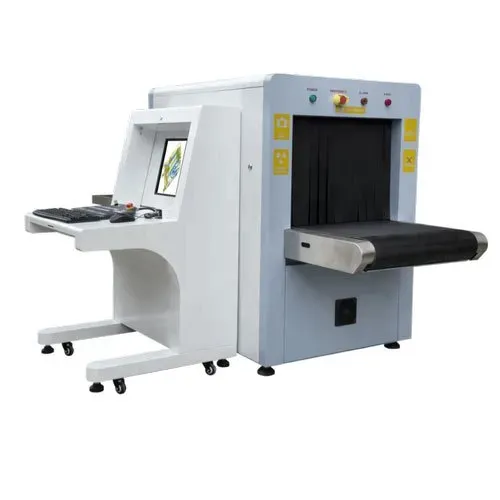

Hikvision ISD-SC6550SA-E2CL X-ray Machine

Hikvision ISD-SC6550SA-E2CL X-ray Machine serves as a single-energy security inspection system for baggage and parcels. This reliable scanner detects prohibited items in carry-on luggage. It fits airports, courts, logistics centers, schools, hospitals, and event venues in Nairobi and Kenya. Security personnel identify threats quickly. Operators handle high volumes efficiently. The machine ensures safety with low radiation levels.

The scanner uses advanced imaging for clear views. It penetrates materials effectively. Conveyor moves items smoothly. Single-energy technology distinguishes organics and metals by color. Built-in features support daily operations. It provides consistent performance in busy environments.

Use Cases and Compatibility

This X-ray machine suits medium-security screening needs. In transportation hubs, scan briefcases and small parcels at checkpoints. Logistics warehouses inspect express mail and packages. Government offices check visitor bags. Schools and hospitals secure entrances. Courts and prisons maintain strict control.

The tunnel size measures 620 mm (W) × 420 mm (H). It accommodates standard carry-on luggage. Use for briefcases, postal bags, and portable items. Support integration with Hikvision ecosystems. Connect to HikCentral for data upload. View images on included monitor. Operate with fingerprint or password login. Store scans locally for review and playback.

Mount on flat surfaces with included conveyor tables. Run continuously with adjustable speed. Use in indoor settings. Pair with video monitoring for event tracing. Work alongside access control systems. Suit new installations or facility upgrades.

For quality security inspection in Kenya, visit Threeways Gadget Hub. Check monitors for enhanced viewing.

Technical Specifications

Image Performance

• Tunnel Size: 620 mm (W) × 420 mm (H)
• Wire Resolution: 36 AWG standard, 38 AWG typical
• Steel Penetration: 30 mm standard
• Spatial Resolution: 1.0 mm (horizontal and vertical)

X-Ray Generator

• Voltage: 160 kV adjustable
• Current: 1.2 mA adjustable
• Cooling: Oil cooling / continuous operation
• Film Security: ASA/ISO1600 standard

Conveyor and Operation

• Conveyor Height: Approximately 678 mm
• Speed: 0.2 m/s, 0.3 m/s, 0.4 m/s adjustable
• Maximum Load: Suitable for standard baggage

Monitoring System

• Sensor Type: 1/2.7″ Progressive Scan CMOS
• Camera Channels: 2 ch (or more in variants)
• Video Compression: H.265/H.264/MJPEG
• Max. Image Size: 1920 × 1080
• Frame Rate: 25 fps (50 Hz) or 30 fps (60 Hz)
• Storage Time: ≥ 30 days

General

• Radiation Leakage: Less than 1 μSv/h (5 cm from housing)
• Power Supply: 220 VAC (±10%), 50 ± 3 Hz
• Power Consumption: < 0.8 kVA
• Operating Temperature: 0 °C to 45 °C
• Operating Humidity: 10% to 95% (non-condensing)
• Dimensions: Approx. 2127 mm × 989 mm × 1351 mm (L × W × H)
• Weight: Approx. 600 kg (net)

The machine features double lead curtains for safety. It includes an embedded training system. Support material discrimination in single-energy mode.

Explore desktop computers at Threeways Gadget Hub for management stations.

Reliable Performance and Support

Threeways Gadget Hub supplies authentic Hikvision security inspection systems to Kenyan clients. The Hikvision ISD-SC6550SA-E2CL X-ray Machine includes a manufacturer warranty against defects. Our Nairobi team provides expert support. Receive assistance with installation, operation training, maintenance, and integration. Access technical updates promptly. Trust our experience for effective security screening solutions.
