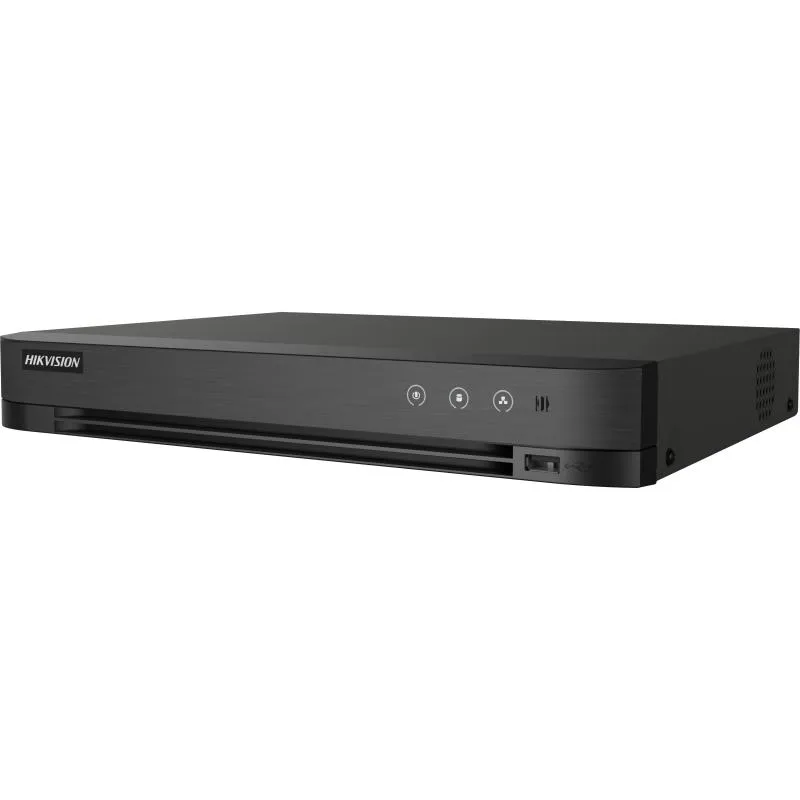

Hikvision iDS-7216HQHI-M1/FA AcuSense DVR

Hikvision iDS-7216HQHI-M1/FA AcuSense DVR provides advanced intelligent surveillance with facial recognition and deep learning detection. This robust 1U recorder suits large installations requiring extensive coverage, accurate identification, and superior storage efficiency.

Hikvision iDS-7216HQHI-M1/FA AcuSense DVR Use Cases

The Hikvision iDS-7216HQHI-M1/FA AcuSense DVR shines in identity-critical environments. Large offices use it for employee access and lobby monitoring. Retail chains deploy it across entrances, counters, and perimeters. Schools apply it to gates, hallways, and parking areas. Hospitals install it in reception zones and restricted sections.

Sixteen analog channels deliver full-site protection. Users secure numerous areas without vulnerabilities. Organizations gain precise control with smart features.

Hybrid setup enables diverse camera integration. Installers mix analog with IP cameras effectively. This supports scalable expansions affordably.

Facial recognition enhances security protocols. Users verify individuals against databases reliably.

Hikvision iDS-7216HQHI-M1/FA AcuSense DVR Compatibility

The Hikvision iDS-7216HQHI-M1/FA AcuSense DVR supports five signal formats. It handles HDTVI, AHD, HDCVI, CVBS analog cameras, and IP cameras up to 6 MP.

Default adds two IP channels. Enhanced mode reaches twenty-four channels.

All analog channels enable audio over coaxial cables. Compatible cameras transmit sound directly.

Remote access integrates with the Hik-Connect app. Users monitor feeds on mobile devices seamlessly.

Hikvision iDS-7216HQHI-M1/FA AcuSense DVR Key Advantages

Motion Detection 2.0 classifies humans and vehicles on all channels. It eliminates false alarms from shadows or branches.

Facial recognition compares pictures on one channel. It supports stranger detection and access alerts.

Face libraries store up to 5000 pictures across 16 groups. Management stays organized.

Perimeter protection filters intrusions on four channels. Modes switch between face and perimeter functions.

H.265 Pro+ compression extends recording duration. Users maximize drive capacity.

The 1U chassis fits racks perfectly. HDMI and VGA outputs provide simultaneous 4K viewing.

Smart search locates faces or objects rapidly.

Technical Specifications

Video and Audio

• Analog Video Input: 16-ch BNC (1.0 Vp-p, 75 Ω), supports coaxitron
• HDTVI Input: 3K@20 fps, 5 MP@20 fps, 4 MP@30/25 fps, 1080p@30/25 fps, 720p@30/25 fps
• AHD/HDCVI Input: Similar high resolutions supported
• CVBS Input: PAL/NTSC
• IP Video Input: 2-ch default (up to 24-ch enhanced), up to 6 MP
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution: Up to 3K lite/5 MP lite/4 MP lite
• Audio Input: 1-ch RCA (up to 16-ch optional) + 16-ch via coaxial
• Audio Output: 1-ch RCA
• Two-Way Audio: Supported via RCA input

Recording and Playback

• Recording Frame Rate: Up to 12 fps for 3K/5 MP lite
• Synchronous Playback: 16-ch
• Smart Search: By face/human/vehicle events

Smart Functions

• Motion Detection 2.0: All analog channels (human/vehicle)
• Facial Recognition: 1-ch picture comparison
• Face Picture Library: Up to 16 libraries, 5000 pictures total
• Perimeter Protection: Up to 4-ch (mutually exclusive with facial)

Network

• Network Interface: 1 × RJ45 10/100/1000 Mbps
• Total Bandwidth: 128 Mbps
• Remote Connections: Up to 128 users
• Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, HTTPS, ONVIF

Storage

• SATA Interface: 1 × SATA
• Capacity: Up to 10 TB per disk

Interface

• Video Output: 1-ch HDMI (4K) + 1-ch VGA (simultaneous) + 1-ch CVBS
• USB Interface: 1 × USB 2.0 (front), 1 × USB 3.0 (rear)

General

• Power Supply: 12 VDC
• Consumption: ≤ 24 W (without HDD)
• Working Temperature: -10 °C to +55 °C
• Dimensions (W × D × H): 315 × 242 × 45 mm
• Weight: ≤ 2 kg (without HDD)

Trust and Support

Threeways Gadget Hub supplies genuine Hikvision products from authorized sources. Each unit includes the full manufacturer warranty. Our Nairobi team offers installation guidance, configuration support, and reliable after-sales assistance. Nationwide delivery provides quick access. Visit our main website for service information.
