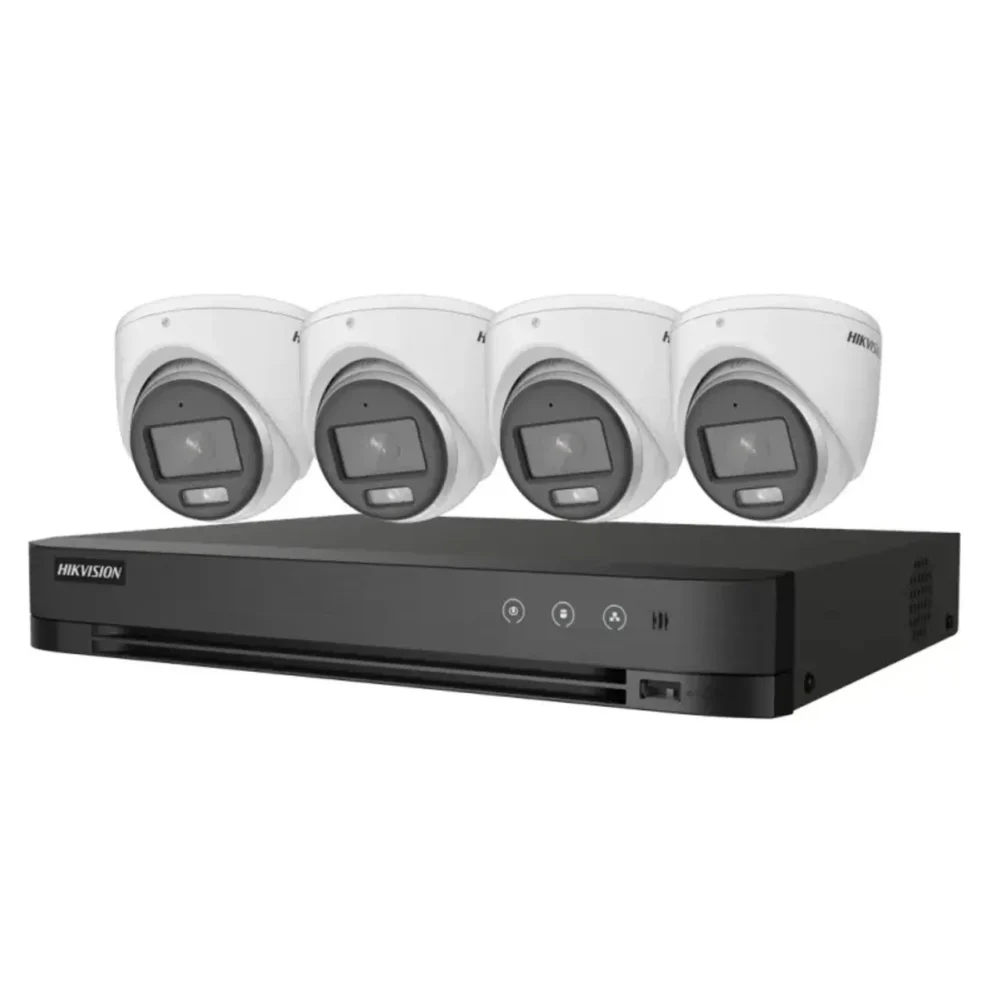

Hikvision HiLook DS-J142I(STD)/TK-4142TH-MH 4-ch Kit

Hikvision HiLook DS-J142I(STD)/TK-4142TH-MH 4-ch H.265 2 MP Turret Kit provides a complete, high-performance analog surveillance package. This 4-channel Turbo HD kit includes a powerful DVR and four uniform 2 MP turret cameras. It delivers crisp Full HD video with efficient H.265 compression. The all-turret design ensures discreet, modern-looking coverage. Installers and homeowners choose this kit for reliable, easy-to-deploy security.

The system comes ready for immediate use. It includes a pre-installed 1 TB hard drive for continuous recording. Four extended video/power cables simplify installation. All four cameras feature the same turret form factor. This allows consistent aesthetics across properties. Turret cameras mount easily on ceilings or walls. They offer excellent low-light performance with strong IR illumination. H.265+ encoding maximizes storage efficiency. Users enjoy sharp 1080p footage day and night.

Detailed Use Cases and Compatibility

Hikvision HiLook DS-J142I(STD)/TK-4142TH-MH 4-ch H.265 2 MP Turret Kit suits residential and commercial applications. Deploy it around homes to monitor entrances, driveways, backyards, and garages. The turret design provides wide coverage with minimal blind spots. Use it in small shops, warehouses, or offices to watch over counters, aisles, and parking areas. The IP66-rated cameras withstand rain, dust, and temperature changes.

The DVR supports multiple analog formats including Turbo HD, AHD, HDCVI, and CVBS. This makes it simple to upgrade older coaxial systems. Connect external monitors via HDMI or VGA. Access live views and recordings remotely through network or mobile apps. The kit integrates with alarms and electric locks using Coaxitron protocol. It operates reliably from -40°C to 60°C. The uniform turret style creates a professional appearance. This kit fits properties where aesthetics and performance matter equally.

Build a full security solution at Threeways Gadget Hub. Check our desktop computers for dedicated control and viewing stations.

Technical Specifications

General

• Model: DS-J142I(STD)/TK-4142TH-MH
• Type: 4-Channel Turbo HD Surveillance Kit
• Components: 1 × 4-Channel DVR + 4 × 2 MP Turret Cameras
• Included Accessories: 4 × Video/Power Cables (18.3 m each), 1 TB Pre-installed HDD

DVR (DS-J142I / DVR-204Q-K1 equivalent)

• Video Compression: H.265+/H.265/H.264+/H.264
• Analog Video Input: 4-ch BNC (1.0 Vp-p, 75 Ω)
• Supported Formats: Turbo HD, AHD, HDCVI, CVBS
• Encoding Resolution: 1080p/720p/WD1/4CIF/CIF
• Frame Rate: Main stream up to 1080p @ 15 fps
• Video Output: 1-ch HDMI/VGA (up to 1920 × 1080)
• Audio: 1-ch RCA input/output (G.711u)
• Storage: 1 SATA interface, up to 6 TB capacity
• Network Interface: 1 × RJ45 10/100 Mbps Ethernet
• USB Ports: 2 × USB 2.0

Cameras (4 × THC-T120 or TK-4142TH-MH Turret)

• Image Sensor: 2 MP Progressive Scan CMOS
• Maximum Resolution: 1920 × 1080
• Lens Options: Fixed 2.8 mm, 3.6 mm, or 6 mm
• Field of View: Approx. 103° (2.8 mm), 80.7° (3.6 mm), 50.1° (6 mm)
• IR Range: Up to 20 m with smart IR
• Day & Night: IR cut filter with auto switch
• Wide Dynamic Range: Digital WDR
• Noise Reduction: 3D DNR
• Protection Rating: IP66 weatherproof
• Power Consumption: Max. 4 W per camera
• Operating Temperature: -40°C to 60°C

Browse display solutions in our monitors collection.

Trust-Building with Warranty and Support

Threeways Gadget Hub supplies only genuine HiLook by Hikvision surveillance kits. This DS-J142I(STD)/TK-4142TH-MH kit carries full manufacturer quality assurance. It complies with international standards for performance and durability. Our Nairobi-based team offers expert installation guidance and system configuration help. We provide fast nationwide delivery across Kenya. Reach out for ongoing technical support. Choose this all-turret kit for dependable, attractive, and efficient security.
