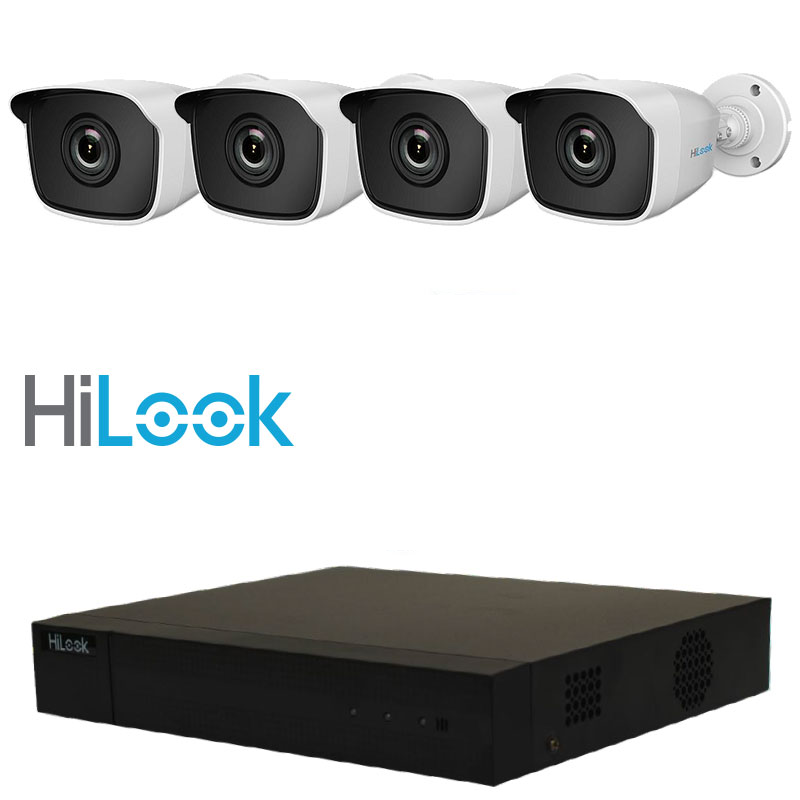

Hikvision HiLook DS-J142I(STD)/TK-4142MH-MH 4-ch Kit

Hikvision HiLook DS-J142I(STD)/TK-4142MH-MH 4-ch H.265 2 MP Bullet&Turret Kit offers a complete, ready-to-install surveillance solution for homes, offices, and small businesses. This analog Turbo HD kit combines a powerful 4-channel DVR with efficient H.265 compression and four high-quality 2 MP cameras. It includes two bullet and two turret models for versatile coverage. The system provides clear Full HD video, reliable night vision, and easy setup.

This kit delivers everything needed for immediate deployment. It features a pre-installed 1 TB HDD for extended recording. Four long video and power cables simplify wiring. The mix of bullet and turret cameras allows flexible placement. Bullet cameras suit wall or pole mounting for targeted views. Turret cameras offer discreet ceiling or wall installation. Users enjoy sharp 1080p footage with strong low-light performance. H.265 encoding saves storage space significantly.

Detailed Use Cases and Compatibility

Hikvision HiLook DS-J142I(STD)/TK-4142MH-MH 4-ch H.265 2 MP Bullet&Turret Kit suits small to medium monitoring needs. Install it around homes for perimeter protection. Cover driveways with bullet cameras and entrances with turrets. Use it in retail shops to monitor aisles and counters. The system supports real-time viewing and playback. It handles outdoor conditions with IP66-rated weatherproof cameras. IR night vision reaches up to 20 meters for 24/7 security.

The DVR supports multiple formats like Turbo HD, AHD, HDCVI, and CVBS. It enables easy upgrades from older analog systems. Connect to monitors via HDMI or VGA outputs. Remote access works through network and mobile apps. The kit integrates with electric locks or alarms via Coaxitron. It operates in temperatures from -40°C to 60°C. Professionals choose this kit for reliable, cost-effective surveillance.

Complete your security at Threeways Gadget Hub. Explore our desktop computers for dedicated monitoring stations.

Technical Specifications

General

• Model: DS-J142I(STD)/TK-4142MH-MH
• Type: 4-Channel Turbo HD Kit
• Components: 1 × 4-Channel DVR + 2 × Bullet Cameras + 2 × Turret Cameras
• Included: 4 × Video/Power Cables (18.3 m each), 1 TB Pre-installed HDD

DVR (DS-J142I / DVR-204Q-K1)

• Video Compression: H.265+/H.265/H.264+/H.264
• Analog Video Input: 4-ch BNC (1.0 Vp-p, 75 Ω), supports Coaxitron
• Video Input Support: Turbo HD, AHD, HDCVI, CVBS
• Encoding Resolution: 4MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
• Frame Rate: Up to 1080p @ 15 fps (main stream)
• Outputs: 1-ch HDMI/VGA (up to 1920 × 1080)
• Audio: 1-ch RCA input/output (G.711u)
• Storage: 1 SATA interface, up to 6 TB
• Network: 1 × RJ45 10/100 Mbps Ethernet
• USB: 2 × USB 2.0

Cameras (2 × THC-B120-M Bullet + 2 × THC-T120 Turret)

• Image Sensor: 2 MP CMOS
• Resolution: 1920 × 1080
• Lens: Fixed 2.8 mm, 3.6 mm, or 6 mm options
• Field of View: Approx. 103° (2.8 mm), 80.7° (3.6 mm), 50.1° (6 mm)
• IR Range: Up to 20 m
• Day & Night: IR cut filter with auto switch
• Protection: IP66 weatherproof
• Power Consumption: Max. 4 W per camera
• Operating Temperature: -40°C to 60°C

Enhance displays with our monitors collection.

Trust-Building with Warranty and Support

Threeways Gadget Hub provides genuine HiLook by Hikvision kits. This product includes manufacturer quality assurance and meets international standards. It offers dependable performance for demanding environments. Our team delivers expert advice on installation and configuration. We ensure fast delivery throughout Kenya. Contact us for ongoing technical support. Choose this kit for secure, hassle-free surveillance.
