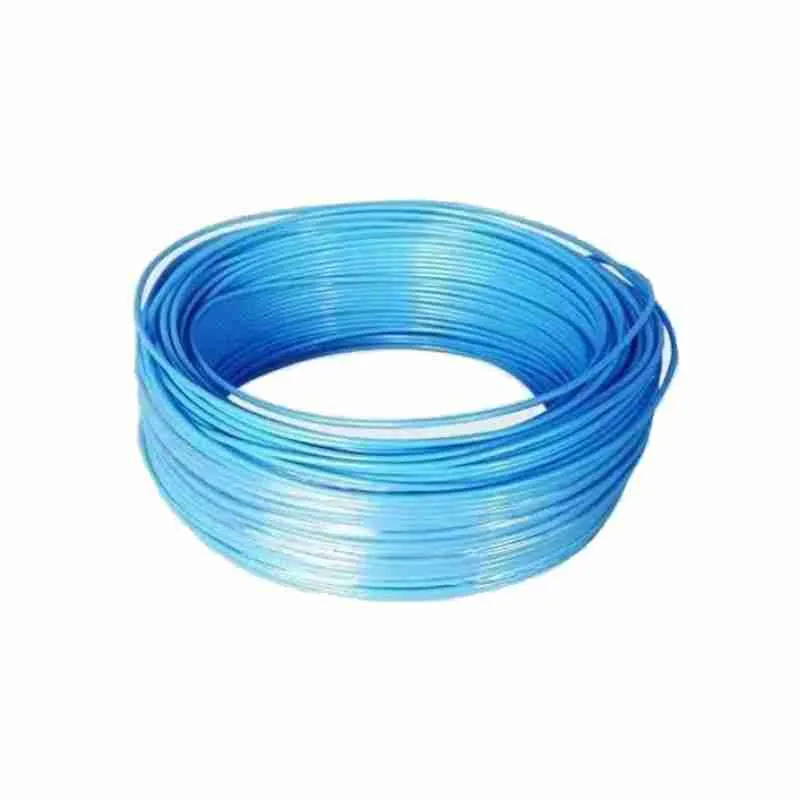

Hikvision DS-TMG023 Coil

Hikvision DS-TMG023 Coil serves as a high-precision inductive loop coil for vehicle detection and anti-fall protection. This durable cable forms the essential inductive loop that detects metal mass from vehicles. Moreover, it pairs reliably with detectors like DS-TMG022 for accurate triggering in Kenyan parking and barrier systems.

Use Cases and Compatibility

First, embed this coil in pavement slots at parking entrances, exits, toll booths, gated communities, office compounds, malls, hospitals, and industrial access points. Additionally, it triggers barrier gates when a vehicle passes over the loop. Therefore, it prevents boom arm collisions and automates access control effectively.

Furthermore, the coil supports vehicle presence detection for entry and anti-smash safety at exits. Consequently, it integrates with Hikvision barrier gates such as TMG4B0 or TMG300 series. Moreover, connect it to vehicle detectors for precise relay activation.

In addition, use it in multi-lane setups by forming separate loops per channel. As a result, systems handle independent detection without interference. Besides, the waterproof design suits outdoor embedding in asphalt or concrete.

For example, Nairobi malls install loops at gates to manage high-volume traffic smoothly. Similarly, residential estates rely on it for secure anti-tailgating. Overall, it enhances safety and efficiency in demanding Kenyan environments.

Installation and Performance Scenarios

Installation requires cutting slots in the road surface according to standard guidelines. Thus, lay the coil in a rectangular shape with recommended turns. Moreover, seal with epoxy or asphalt for protection against weather and wear.

Furthermore, the FVN49/0.26 specification provides optimal inductance for reliable tuning. Likewise, the 50-meter length allows flexible loop sizing. Therefore, achieve consistent performance across various lane widths.

Additionally, the coil withstands extreme temperatures from -60°C to 105°C. Consequently, it operates reliably in Kenya’s hot days and cooler nights. In summary, minimal maintenance ensures long-term durability.

Technical Specifications

Coil Parameters

• Model: DS-TMG023 (Coil)
• Type: Vehicle trigger/anti-fall inductive loop coil
• Material: FVN49/0.26 (49 strands of 0.26 mm wire)
• Length: 50 meters
• Diameter: Approx. Φ26 mm (outer sheath)
• Conductors: 49
• Inductance Range: Compatible with 20 to 1000 μH (recommended 100-300 μH for optimal tuning)
• Design Features: Waterproof construction, convenient cap for wiring

Environmental

• Working Temperature: -60°C to +105°C
• Protection: Waterproof and rugged for embedded installation
• Durability: Resistant to moisture, chemicals, and mechanical stress

Compatibility

• Paired Detector: DS-TMG022 or similar 2-ch loop detectors
• Applications: Works with Hikvision barrier gates (TMG series), parking management systems
• Installation: In-ground loop embedding (4-8 mm wide, 50-80 mm deep slots)

General Parameters

• Appearance: Blue cable with protective sheath
• Weight: Lightweight for easy handling during layout
• Features: High electromagnetic sensitivity for vehicle mass detection, low interference

Reliable Support and Warranty

Threeways Gadget Hub offers authentic Hikvision accessories with full confidence. Therefore, the Hikvision DS-TMG023 Coil includes the manufacturer’s standard warranty. Moreover, our Nairobi experts provide loop layout advice, installation tips, and prompt after-sales support. Thus, achieve precise detection and system longevity.

Explore related items on our site. For instance, view desktop computers for parking oversight stations. Similarly, browse monitors for operator interfaces. Furthermore, check gaming for additional computing solutions.

Learn more about inductive loop technology from Hikvision official resources. Understand vehicle detection basics via Wikipedia induction loop. Review traffic system standards on IEEE resources.

This coil forms the foundation for dependable vehicle sensing in professional Kenyan parking and access setups.
