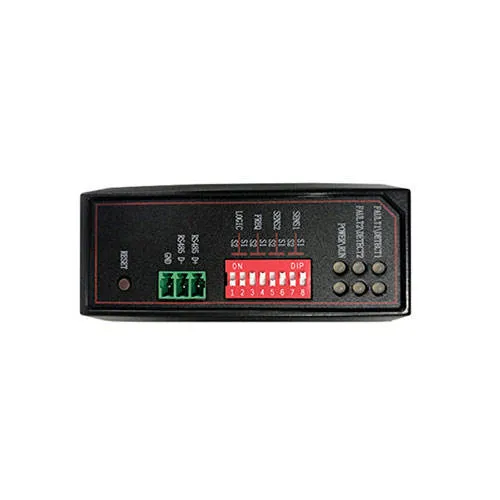

Hikvision DS-TMG022 Special S Vehicle Detector

Hikvision DS-TMG022 Special S Vehicle Detector delivers precise inductive loop-based detection for vehicle presence. This dual-channel digital device ensures accurate triggering in parking and access systems. Moreover, it supports advanced features like traffic event detection for enhanced control in Kenyan installations.

Use Cases and Compatibility

First, install this detector in parking lot entrances, exits, toll stations, gated communities, office compounds, malls, hospitals, and industrial sites. Additionally, it triggers barrier gates upon vehicle detection over loops. Therefore, it automates access smoothly without manual intervention.

Furthermore, the dual channels monitor two separate loops independently. Consequently, it handles multi-lane setups or entry-exit pairs effectively. Moreover, connect it to Hikvision barrier gates, ANPR cameras, and management software for integrated solutions.

In addition, it detects traffic events such as wrong-way driving, speeding, and vehicles with more than two wheels. As a result, operators gain valuable insights for security and flow management. Besides, relay outputs link to lights, alarms, or counters for comprehensive automation.

For example, Nairobi commercial parks rely on it for reliable vehicle counting and anti-tailgating. Similarly, residential estates prevent unauthorized access through precise detection. Overall, it reduces congestion and boosts safety in high-traffic Kenyan environments.

Installation and Performance Scenarios

Installation involves embedding inductive loops in pavement slots. Thus, follow standard cutting guidelines for optimal performance. Moreover, adjust sensitivity and frequency via dials to match site conditions.

Furthermore, the device self-tunes inductance automatically. Likewise, it recovers from loop faults quickly. Therefore, downtime minimizes even after temporary disruptions.

Additionally, surge protection safeguards against voltage spikes common in power fluctuations. Consequently, reliability increases in variable Kenyan grids. In summary, this detector adapts seamlessly to outdoor and indoor parking applications.

Technical Specifications

System Parameters

• Channels: 2-ch loop-based detection
• Processor: High-performance microprocessor with channel sequence scanning
• Detection Rate: ≥ 99% for normal vehicles
• Response Time: Max. 32 ± 2 ms
• Loop Fault Recovery: ≤ 100 ms automatic resume
• Fault Detection Interval: ≤ 10 ms

Loop and Tuning

• Inductance Self-Tuning Range: 20 to 1000 μH (recommended 100 to 300 μH)
• Operating Frequency: 28 KHz to 120 KHz, 4 levels adjustable (highest, high, low, lowest)
• Sensitivity: 0.02% to 0.96% (-△L/L), 4 levels adjustable
• Self-Recovery: Automatic after loop failure removal

Interfaces and Outputs

• Output Ports: 2-ch relay output (VDRM 70 V, max. current 30 mA)
• Additional Functions: Traffic statistics (flow, speed, length), event detection (forward/wrong-way, speeding), traffic light status upload, voltage surge protection

General Parameters

• Power Supply: 220 VAC (176 to 264 VAC, 50 to 60 Hz) or 110V variant available
• Power Consumption: ≤ 3 W
• Operating Temperature: -30°C to +70°C
• Operating Humidity: < 90%, non-condensing
• Dimensions: 105 × 88 × 40 mm
• Housing: Compact for easy panel mounting
• Features: Frequency self-adaption, full environment tracking, multi-wheel vehicle recognition

Reliable Support and Warranty

Threeways Gadget Hub commits to quality Hikvision traffic solutions in Nairobi. Therefore, the Hikvision DS-TMG022 Special S Vehicle Detector includes the manufacturer’s standard warranty. Moreover, our local experts provide installation advice, loop layout guidance, and responsive after-sales support. Thus, ensure accurate detection and minimal maintenance over time.

Discover complementary products on our platform. For instance, explore desktop computers for central monitoring. Similarly, browse monitors for operator displays. Furthermore, check gaming options for diverse setups.

Understand inductive loop detection from Hikvision official resources. Learn vehicle detection principles via Wikipedia inductive loop. Review traffic management standards on IEEE resources.

This detector combines high accuracy with robust features for dependable vehicle sensing in Kenya’s parking systems.
