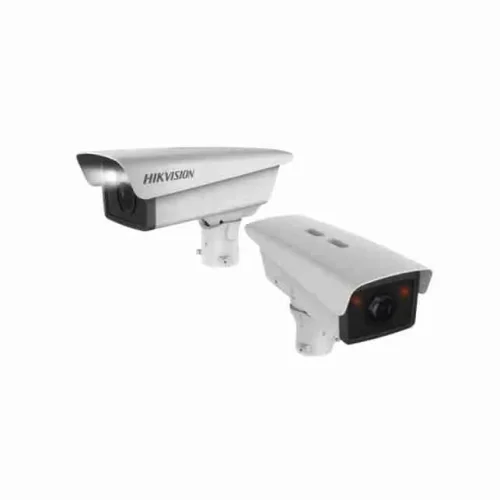

Hikvision DS-TCG205-E(12V/PoE) Intelligent Entrance Video Unit

Hikvision DS-TCG205-E(12V/PoE) Intelligent Entrance Video Unit offers advanced automatic number plate recognition with deep learning technology. This economic ANPR camera provides accurate vehicle identification for secure access control. It suits entrances in Kenya’s busy environments effectively.

Use Cases and Compatibility

First, this unit excels in parking lots, gated communities, office parks, residential estates, and industrial compounds. Moreover, it automates vehicle entry and exit smoothly. Therefore, businesses reduce manual checks significantly.

Additionally, it integrates with barrier gates via relay output. Consequently, gates open automatically upon valid plate recognition. Furthermore, it supports loop detectors or radar triggers for reliable activation.

Moreover, compatibility extends to Hikvision NVRs and management software. As a result, users enjoy centralized video storage and monitoring. In addition, offline whitelist functionality ensures operation during network disruptions.

Installation and Performance Scenarios

For instance, in high-traffic areas like Nairobi malls, it handles multiple vehicles quickly. Similarly, residential setups benefit from enhanced security without constant supervision. Besides, it recognizes various vehicle types, including cars, trucks, buses, vans, and SUVs.

Furthermore, color detection covers red, yellow, green, blue, white, black, and gray. Thus, it provides comprehensive vehicle profiling. Overall, quick pass mode prevents congestion in queues.

Technical Specifications

Camera and Imaging

• Image Sensor: 1/3″ Progressive Scan CMOS
• Maximum Resolution: 1920 × 1200
• Frame Rate: 25 fps at 1920 × 1200
• Minimum Illumination: Color 0.022 Lux @ (F1.2, AGC ON), B/W 0.011 Lux @ (F1.2, AGC ON)
• Shutter Speed: 1/30 s to 1/100,000 s
• Lens: 3.1 mm to 6 mm motorized vari-focal
• IR Cut Filter: Supported
• Supplement Light: 2 built-in high-performance LEDs (integrated white light and IR)

ANPR and Recognition Features

• Recognition Technology: Deep learning-based multi-frame LPR
• Capture Rate: High under recommended conditions (up to >98%)
• Accuracy: Supports dirty license plate recognition
• Vehicle Attributes: Type, color, brand (extensive list including Toyota, Nissan, BMW, Isuzu)
• Whitelist/Blacklist: Up to 30,000 vehicles
• Quick Pass: Supports multiple vehicles in succession

Interfaces and Storage

• Network Interface: 1 RJ45 10M/100M Ethernet port
• Serial Port: 1 RS-485
• Audio Output: 1-ch
• Triggered Input: 3-ch (including loop/radar compatible)
• Relay Output: 2-ch for barrier control
• Storage: TF card slot up to 128 GB
• Protocols: TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP

General Parameters

• Power Supply: 12 VDC or PoE (802.3af)
• Power Consumption: Max. 22 W
• Protection Level: IP67 water and dust resistant, IK10 vandal proof
• Operating Temperature: -25°C to 70°C
• Operating Humidity: ≤90% (non-condensing)
• Dimensions: Approx. 357 × 189 × 145 mm

Reliable Support and Warranty

At Threeways Gadget Hub, we prioritize customer satisfaction with every Hikvision product. Therefore, the Hikvision DS-TCG205-E(12V/PoE) includes the manufacturer’s standard warranty. In addition, our Nairobi team delivers expert guidance on installation and ongoing support. Thus, you gain reliable performance and quick issue resolution.

Explore complementary items on our platform. For example, view desktop computers for control room setups. Similarly, browse monitors for clear visualization. Furthermore, discover gaming options for varied uses.

To understand ANPR advancements, visit Hikvision’s official resources. Likewise, learn PoE details from IEEE standards information. Finally, explore deep learning concepts on Wikipedia’s deep learning page.

This robust unit combines smart features with durable design for demanding Kenyan applications.
