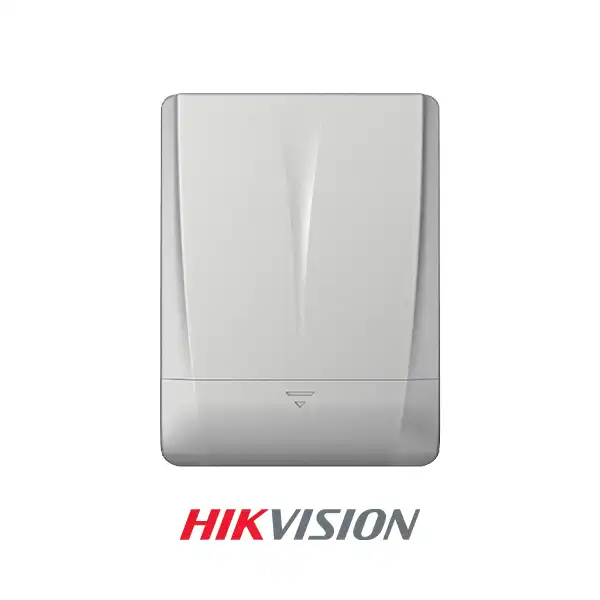

Hikvision DS-PDSKM-VG3 Wired Seismic Detector

Hikvision DS-PDSKM-VG3 Wired Seismic Detector detects vibrations and shocks on protected surfaces reliably. This high-quality G-sensor offers early warning against attacks. It suits safes, vaults, ATMs, and strongrooms in Nairobi and Kenya. Security systems trigger alarms before breaches occur. The detector provides robust protection with adjustable sensitivity.

The sensor uses advanced digital processing. It filters background noise effectively. IK10 impact resistance withstands tampering attempts. Tamper protection covers front and rear. The device ensures consistent performance in secure environments.

Use Cases and Compatibility

This seismic detector fits high-security applications. In banks, protect vaults and safes from drilling or explosion attempts. Jewelry stores secure display cases and storage. Data centers monitor server rooms. Government facilities safeguard sensitive areas. Industrial sites protect machinery or storage.

The DS-PDSKM-VG3 connects via wired NC/NO output. Compatible with Hikvision wired alarm panels including AX Hybrid Pro series like DS-PHA48-EP. Use with intrusion panels supporting NC contacts. Mount on metal surfaces or secure structures. Detect shocks up to 5 m radius. Set 8 sensitivity levels via DIP switches. Include rapid temperature rise and displacement detection. Work indoors with tamper monitoring.

Install on walls or surfaces requiring protection. Adjust sensitivity for environment. Integrate with sounders and keypads for full systems. Suit new security setups or upgrades. Ensure proper mounting for optimal vibration transfer.

For premium intrusion sensors in Kenya, visit Threeways Gadget Hub. Check monitors for alarm oversight.

Technical Specifications

Detection Performance

• Detection Method: Shock Sensor (G-sensor)
• Detection Range: Up to 5 m radius
• Sensitivity: 8 levels adjustable by DIP switch
• Digital Processing: Supported (advanced background noise filter)
• Rapid Temperature Rise Detection: Supported
• Displacement Detection: Supported

Features

• Tamper Protection: Front and rear
• Impact Resistance: IK10
• Gross Attack Override: Supported (adjustable)

Electrical Characteristics

• Power Supply: 9–16 VDC (recommended 12 VDC)
• Current Consumption: Low (standby and alarm values optimized)
• Alarm Output: NC/NO relay

General

• Shell Material: Metal housing
• Installation: Surface mounting
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Operating Humidity: 10% to 90% (non-condensing)
• Dimensions (W × H × D): 60 mm × 80 mm × 19.5 mm
• Weight: Approx. 226 g

Key Features

• High-quality G-sensor for early detection
• 8 sensitivity levels via DIP switch
• Advanced digital noise filtering
• IK10 impact resistance
• Front and rear tamper protection

The detector uses robust metal construction. It handles harsh conditions. Easy DIP switch configuration. Reliable wired connection.

Browse desktop computers at Threeways Gadget Hub for alarm management.

Reliable Performance and Support

Threeways Gadget Hub supplies genuine Hikvision detectors to Kenyan clients. The Hikvision DS-PDSKM-VG3 Wired Seismic Detector includes a manufacturer warranty against defects. Our Nairobi team offers expert support. Receive guidance on mounting, sensitivity setting, wiring, and integration. Access prompt assistance for maintenance. Depend on our expertise for high-security vibration detection.
