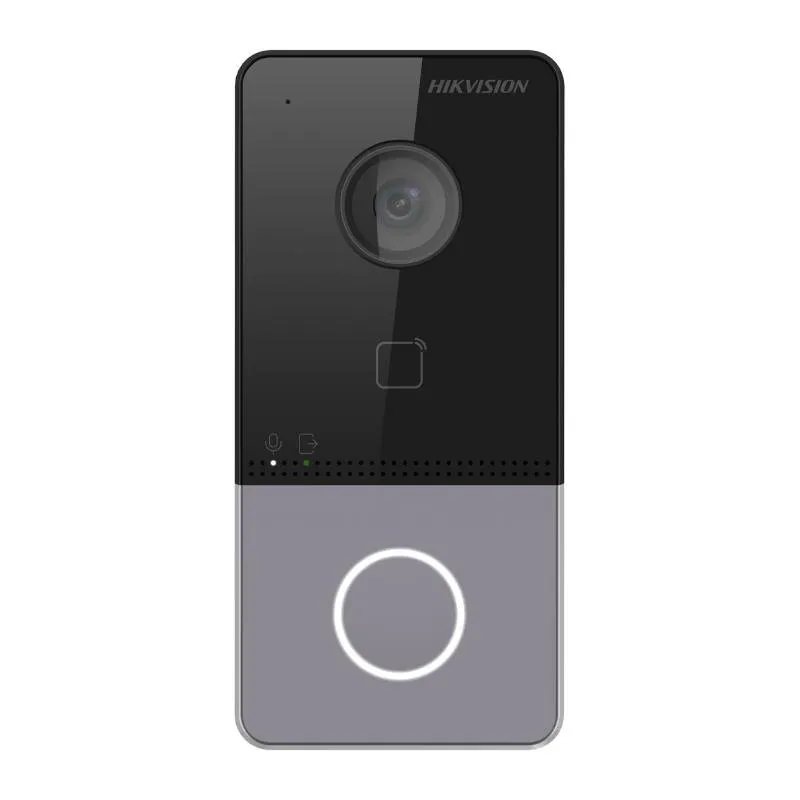

Hikvision DS-KV6113-WPE1(C)  One Button Villa Door Station

Hikvision DS-KV6113-WPE1(C) POE/Wifi One Button Villa Door Station delivers compact, wireless-ready video intercom security with one-touch calling for modern Kenyan villas and homes.

This IP-based outdoor station features a high-resolution camera. It supports flexible PoE or Wi-Fi connectivity. Families in Nairobi use it for quick visitor identification. Residents receive calls on indoor stations or mobile apps. Property owners unlock doors remotely.

Simplify installation. Enable secure card access. Withstand outdoor exposure. Hikvision DS-KV6113-WPE1(C) POE/Wifi One Button Villa Door Station provides convenient, reliable protection.

Key Features of Hikvision DS-KV6113-WPE1(C) POE/Wifi One Button Villa Door Station

Support Wi-Fi for easy setup. Include 2 MP HD camera. Offer one-touch calling. Provide IP65 weather resistance.

Detailed Use Cases and Compatibility

Standalone villas install it at main gates for guest calls. Detached homes use it for family entry control. Small compounds apply it for visitor screening. The station suits surface mounting in outdoor positions.

It captures 2 MP HD video with wide-angle view. IR supplement illuminates low-light scenes. One-touch button initiates calls to linked indoor stations. Built-in Mifare card reader allows quick unlocking.

Connect via standard PoE for power and data. Use Wi-Fi for wireless deployment. Integrate with Hik-Connect app for remote viewing and control. Interfaces support RS-485, alarm inputs, exit buttons, and lock relays.

Pair with indoor stations for complete villa systems. Discover compatible desktop computers for management at Threeways Gadget Hub.

Technical Specifications

• Operating System: Embedded Linux
• ROM: 32 MB
• RAM: 256 MB
• Processor: Embedded high-performance MCU
• Camera: 1 lens, 2 MP HD
• Resolution: Main stream 1920 × 1080p / 720p; Sub stream 640 × 480p / 704 × 576
• FOV: Horizontal 131°, Vertical 78°
• Wide Dynamic Range: True WDR 120 dB
• Supplement Light: IR up to 3 m
• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in loudspeaker
• Audio Compression: G.711U
• Audio Quality: Noise suppression and echo cancellation
• User Capacity: 2000
• Card Capacity: 10000 (Mifare 13.56 MHz)
• Network: 10/100 Mbps self-adaptive Ethernet (RJ-45), Wi-Fi (IEEE 802.11b/g/n)
• Interfaces: 4 × Alarm Input, 1 × Network, 1 × TAMPER, 1 × Exit Button, 1 × RS-485, 1 × Lock Control Relay (Max. 30 VDC 2 A), 1 × Door Contact Input, 1 × Power Interface
• Power Supply: Standard PoE (IEEE802.3af) or 12 VDC
• Power Consumption: < 10 W
• Protection Level: IP65
• Working Temperature: -40 °C to +55 °C
• Working Humidity: 10% to 95% (non-condensing)
• Dimensions: 138 mm × 65 mm × 27 mm
• Installation: Surface mounting
• Additional: One-touch calling button, web configuration, Hik-Connect app support, 2 indicators

This efficient design ensures straightforward deployment. The IP65 rating handles Kenya’s outdoor conditions effectively.
