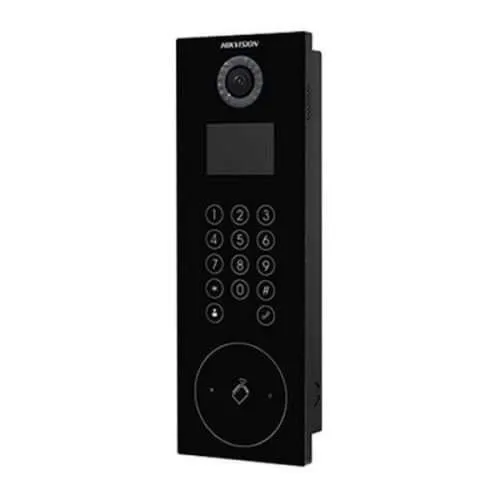

Hikvision DS-KD8103-E6 Video Intercom Door Station
Hikvision DS-KD8103-E6 Video Intercom Door Station features a built-in 3.5-inch colorful LCD screen for enhanced visitor interaction in Kenyan residential and commercial settings.
This IP-based outdoor door station combines high-quality video capture with local display capabilities. Apartments, villas, gated communities, and small offices in Nairobi install it for secure two-way communication. Residents view and speak with visitors directly at the door. Property managers unlock remotely or locally.
Provide clear visuals. Support multiple access methods. Withstand outdoor conditions. Hikvision DS-KD8103-E6 Video Intercom Door Station offers reliable entry management.
Key Features of Hikvision DS-KD8103-E6 Video Intercom Door Station
Include 2 MP HD camera. Feature 3.5-inch LCD display. Enable card and PIN unlocking. Deliver IP65 weather protection.
Detailed Use Cases and Compatibility
Multi-unit apartments use it for main entrance visitor screening. Gated villas monitor gates with local preview. Small commercial buildings control staff and client entry. The station suits outdoor flush or surface mounting.
It supports 2 MP HD video streaming. The wide-angle lens captures broad views. IR illumination ensures night visibility. The 3.5-inch screen allows on-site display of calls or status.
Unlock via M1 cards or PIN codes. Integrate with indoor stations, SIP systems, or Hik-Connect app. Connect via Ethernet for network setups. Interfaces include RS-485, Wiegand, alarm inputs, and relay outputs for locks.
Pair with indoor monitors for complete systems. Explore compatible desktop computers for management at Threeways Gadget Hub.
Technical Specifications
- Operating System: Linux
- ROM: 4 GB
- RAM: 512 MB
- Processor: Embedded high-performance processor
- Display: 3.5-inch colorful LCD touchscreen
- Resolution: 480 × 320
- Camera: 2 MP HD lens
- Video Resolution: Main stream 1920 × 1080p / 720p; Sub stream 640 × 480p
- FOV: Horizontal approx. 72°, Vertical 119°, Diagonal 132° (wide angle 120°)
- Wide Dynamic Range: Supported (Digital WDR)
- Supplement Light: IR up to 3 m
- Audio: Built-in omnidirectional microphone and loudspeaker
- Audio Compression: G.711U/A
- Audio Quality: Noise suppression, echo cancellation
- Card Capacity: Up to 10,000 (M1 cards)
- User Capacity: Supports high volumes
- Network: 10/100 Mbps Ethernet (RJ-45)
- Interfaces: RS-485, Wiegand, Alarm inputs (up to 8), Relay output, TAMPER
- Power Supply: 12 VDC
- Power Consumption: ≤ 10 W
- Protection Level: IP65 (dust-tight and water-resistant)
- Working Temperature: -40 °C to +55 °C (some sources -30 °C to +60 °C)
- Working Humidity: 10% to 95% (non-condensing)
- Dimensions: Approx. 418 mm × 145 mm × 61 mm (varies by mounting)
- Installation: Flush or surface mounting
- Additional: Remote web configuration, tamper alarm
This robust setup ensures dependable outdoor performance. The IP65 rating handles Kenya’s weather variations.
Discover Hikvision’s video intercom advancements on the Hikvision official site (high-authority manufacturer resource).
Why Choose Threeways Gadget Hub
Threeways Gadget Hub serves as a trusted Hikvision distributor in Kenya. We supply genuine products with full manufacturer warranty. Each door station passes rigorous quality checks.
Our team provides installation guidance and configuration support. We offer ongoing technical assistance. Extended options suit residential or commercial needs.
Purchase confidently from a local expert. Browse our full range at https://threeways.co.ke/.
Enhance monitoring with suitable monitors.
Learn about intercom security trends from Biometric Update – a leading independent industry source.
Choose Hikvision DS-KD8103-E6 Video Intercom Door Station for advanced outdoor entry control. Secure your entrance today.
