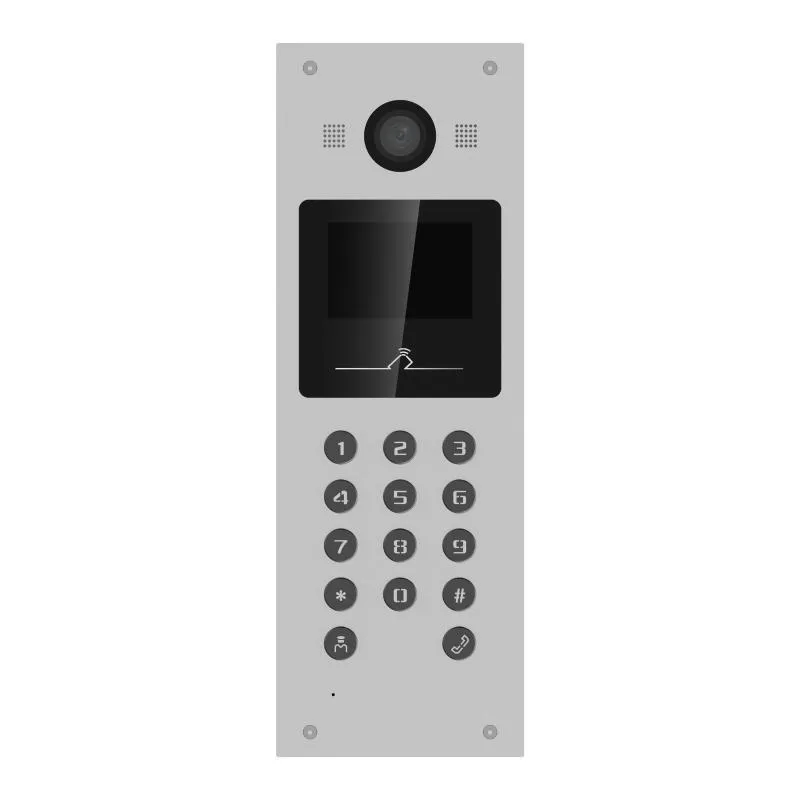

Hikvision DS-KD3003-E6 IP Door Station

Hikvision DS-KD3003-E6 IP Door Station provides a robust 3.5-inch LCD-equipped video intercom solution for secure entrances in Kenyan apartments and villas.

This value series outdoor device features high-definition imaging. It supports multiple unlocking methods. Multi-family buildings, gated communities, and small offices in Nairobi deploy it for reliable visitor communication and access control.

Offer clear two-way talk. Enable card and PIN entry. Ensure weather-resistant durability. Hikvision DS-KD3003-E6 IP Door Station combines functionality with straightforward installation.

Key Features of Hikvision DS-KD3003-E6 IP Door Station

Include 2 MP HD camera. Feature built-in 3.5-inch colorful LCD screen. Support M1 card reading. Provide IP65 protection level.

Detailed Use Cases and Compatibility

Apartment complexes install it at main entrances for resident verification. Gated villas use it for guest screening with on-site display. Commercial buildings control staff access via PIN or card. The station suits flush or embedded mounting in outdoor locations.

It captures 2 MP HD video with 120° wide-angle view. The LCD screen shows live status or calls locally. IR illumination handles low-light conditions. Built-in microphone and speaker deliver noise-suppressed audio.

Unlock doors using M1 cards or PIN codes. Configure remotely via web interface. Integrate with indoor stations, SIP systems, or Hik-Connect app for mobile viewing. Connect via RJ45 Ethernet. Interfaces include RS-485, Wiegand, alarm inputs, and relay outputs for locks.

Enhance your intercom network with central management tools. Browse suitable desktop computers at Threeways Gadget Hub.

Technical Specifications

• Operating System: Linux
• ROM: 4 GB
• RAM: 512 MB
• Processor: Embedded high-performance processor
• Display: 3.5-inch colorful LCD touchscreen
• Resolution: 480 × 320
• Camera: 2 MP HD lens
• Video Resolution: 1920 × 1080 (main stream), supports 720p/480p
• FOV: Horizontal approx. 120°, Vertical approx. 118°
• Wide Dynamic Range: Supported (Digital WDR)
• Supplement Light: IR up to 3 m
• Audio: Built-in omnidirectional microphone and loudspeaker
• Audio Compression: G.711U/A
• Audio Quality: Noise suppression, echo cancellation
• Card Capacity: Up to 10,000 (M1 cards)
• Network: 10/100 Mbps self-adaptive Ethernet (RJ-45)
• Interfaces: RS-485, Wiegand, Alarm inputs (up to 8), Relay outputs, TAMPER
• Power Supply: 12 VDC
• Power Consumption: ≤ 10 W
• Protection Level: IP65 (dust-tight and water-resistant)
• Working Temperature: -30 °C to +60 °C
• Working Humidity: 10% to 95% (non-condensing)
• Dimensions: Approx. 195 mm × 205 mm × 525 mm (varies by source/mounting)
• Installation: Flush/embedded mounting
• Additional: Remote web configuration, tamper alarm, multiple languages

This configuration guarantees stable outdoor operation. The IP65 rating withstands Kenya’s environmental challenges.

Explore Hikvision’s intercom product details on the Hikvision official site (high-authority manufacturer resource).

Why Choose Threeways Gadget Hub

Threeways Gadget Hub acts as a dependable Hikvision partner in Kenya. We deliver authentic equipment with complete manufacturer warranty. Each door station undergoes thorough quality testing.

Our specialists offer installation support and remote configuration guidance. We provide ongoing technical help. Extended services suit multi-unit projects.

Buy with assurance from a local provider. Check our entire selection at https://threeways.co.ke/.

Pair with clear displays using quality monitors.

Gain knowledge on video intercom standards from Biometric Update – an authoritative independent source.

Select Hikvision DS-KD3003-E6 IP Door Station for dependable, feature-packed entry security. Protect your premises today.
