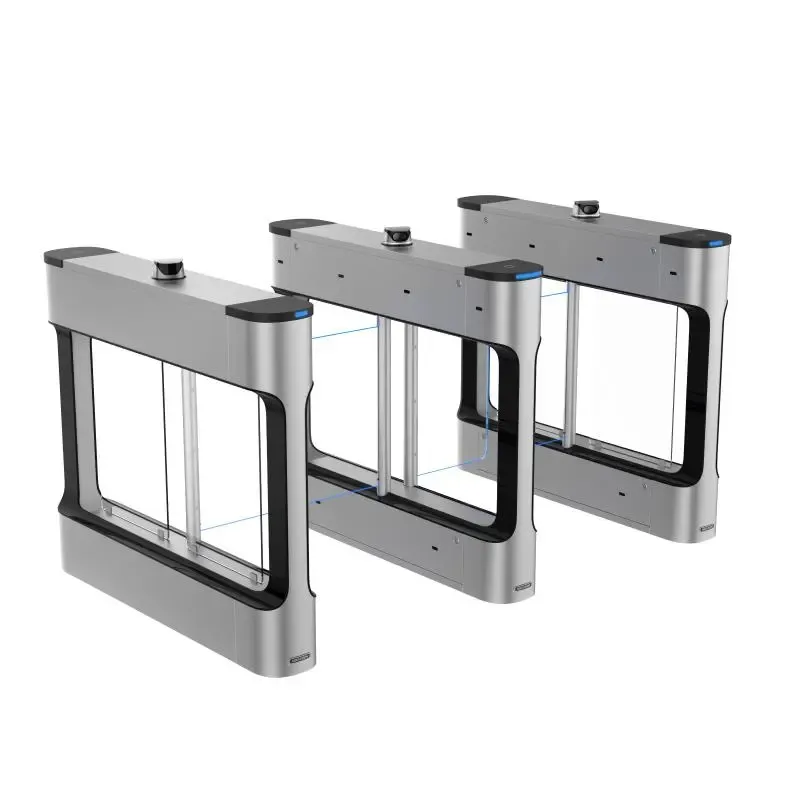

Hikvision DS-K6B411TMX-M Smart Value Swing Barriers

Hikvision DS-K6B411TMX-M Smart Value Swing Barriers serve as the middle-lane module in modular pedestrian access systems. This unit expands lanes for higher throughput. It controls secure entry in demanding environments. Offices, metro stations, corporate campuses, libraries, and public facilities in Nairobi and Kenya rely on it. Authorized individuals pass quickly. Tailgating attempts get detected and blocked. The design prioritizes efficiency and user safety.

The barrier integrates built-in face recognition options. It supports contactless authentication methods. Infrared sensors enhance detection accuracy. Emergency features ensure safe evacuation. Modular setup allows flexible configurations.

Use Cases and Compatibility

This middle unit excels in multi-lane deployments. In office buildings, create wide passages for employee crowds. Metro stations manage peak-hour commuter flow. Corporate lobbies restrict access to verified staff. Libraries and event venues control entry smoothly. Government offices strengthen security perimeters.

Pair with DS-K6B411TMX-L (left main) and DS-K6B411TMX-R (right) units. Form multi-lane setups with adjustable widths. Support bi-directional passage. Expand lanes as needed for traffic demands.

Integrate with Hikvision face recognition modules, card readers, QR scanners, and fingerprint terminals. Enable multi-factor authentication like face plus card. Use infrared anti-tailgating detection. Link fire alarms for automatic opening. Power failures trigger free passage or optional super capacitor unlock.

Connect via network for centralized control. Manage through Hikvision PC or mobile web platforms. Support anti-passback functions. Operate indoors or in covered outdoor areas. Suit new builds and system upgrades.

For dependable access control in Kenya, visit Threeways Gadget Hub. Check monitors for supervision displays.

Technical Specifications

System Parameters

• Motor: Brushless motor
• MCBF: ≥ 5 million times
• Laser Sensor: 6 dToF sensors
• Door Open Duration: 5 to 60 seconds

Interfaces and Features

• Authentication: Built-in face recognition (optional module), M1 card, QR code
• Face Capacity: 100,000
• Card Capacity: 200,000
• Event Capacity: 100,000
• Anti-Tailgating: Infrared detection
• Emergency: Fire linkage input, automatic unlock on power loss
• Network: 1 network interface, supports TCP/IP
• Additional: Exit button 2, alarm output 4, RS-485 2, USB 2

General

• Lane Width: 550 mm to 1400 mm (21.65″ to 55.12″)
• Barrier Material: 8 mm acrylic glass, 1.5 mm stainless steel pipe
• Pedestal Material: SUS304 stainless steel 1.2 mm
• Dimensions (Without Package): 1205 mm × 199 mm × 1072 mm (47.44″ × 7.83″ × 42.21″)
• Weight (Net, Approx.): 35.53 kg (78.33 lb)
• Power Consumption: 100 W
• Working Temperature: -15°C to 65°C (5°F to 149°F)
• Working Humidity: 10% to 95% (non-condensing)
• Protective Level: IPX4
• Installation: Modular, floor-mounted

The unit offers robust build quality. It handles frequent cycles reliably. Sensors provide precise monitoring. Fail-safe design meets safety requirements.
