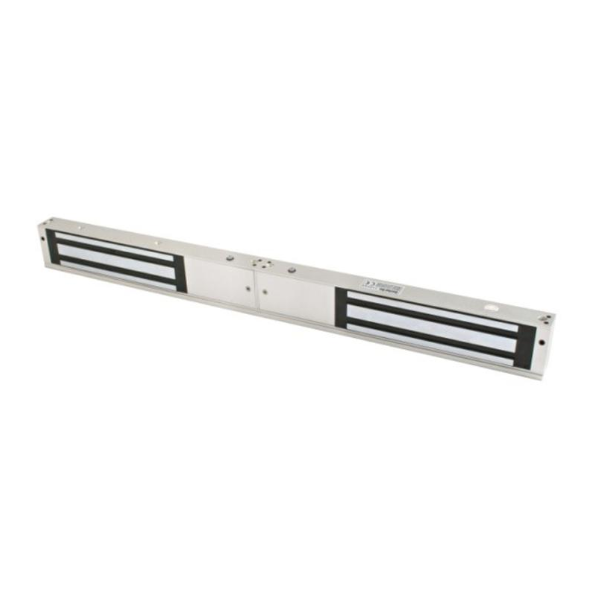

Hikvision DS-K4H250D Double-door Magnetic Lock

The Hikvision DS-K4H250D double-door magnetic lock delivers professional-grade access control solutions. This Pro Series lock supports 600kg maximum static linear thrust for powerful door security. The dual-door design accommodates wooden doors, glass doors, metal doors, and fireproof doors efficiently. Kenyan organizations require reliable security hardware that withstands demanding operational environments consistently.

The DS-K4H250D features flexible voltage options with 12VDC or 24VDC power supply capability. Internal voltage dependent resistor (MOV) provides protection against power surge damage automatically. LED indicators display lock status clearly with green for locked and red for unlocked states. Anti-residual magnetism design prevents lock disengagement issues during extended operation periods.

Application Use Cases

Large Commercial Entrance Control

Corporate offices utilize the DS-K4H250D double-door magnetic lock for professional entrance control. Main building entrances, executive suite access, and secure multi-door areas benefit significantly. Organizations implement consistent security protocols using this powerful locking solution. Integration with card reader systems provides comprehensive access management across large facilities.

Educational Campus Double-Door Security

Universities and schools deploy double-door magnetic locks throughout campus facilities. Gymnasium entrances, auditorium access, and administrative building protection require dependable dual-door locking. The lock’s powerful holding force secures both doors simultaneously. Educational institutions prioritize student safety with this reliable Pro Series solution.

Healthcare Double-Door Implementation

Hospitals and medical clinics utilize the DS-K4H250D for secured dual-door access areas. Emergency room entrances, surgical suite protection, and main facility access demand professional-grade equipment. The lock operates reliably in sterilized healthcare environments with minimal maintenance requirements. Medical institutions trust Hikvision technology for institutional protection standards. Explore desktop computer access control solutions that integrate with double-door magnetic lock systems for comprehensive facility management.

Technical Specifications

Power Supply and Electrical Performance

The lock operates on 12VDC at 500 milliamps per door or 24VDC at 250 milliamps per door. Internal voltage dependent resistor (MOV) protects against electrical surge damage automatically. This efficient power consumption design supports extended operation with minimal electricity expenditure. Built-in protection ensures stable performance across varying electrical conditions.

Dimensions and Physical Construction

Lock body measures 480mm length by 49mm width by 25.5mm depth. Armature plate dimensions are 180mm length by 38mm width by 11mm depth. Total weight of 4.2 kilograms allows straightforward installation on varied door frames. Extended dimensions accommodate dual-door configurations without requiring major architectural modifications.

Door Type Compatibility and Performance

The DS-K4H250D supports wooden doors, glass doors, metal doors, and fireproof doors. The 90-degree opening angle provides excellent flexibility for diverse facility layouts. Universal compatibility eliminates complex installation planning for diverse facility requirements. Facilities with mixed door types benefit from standardized security across installations.

Material Construction and Durability

The shell features hard anodizing electroplating for exceptional corrosion resistance. Lock body and armature plate use eco-friendly zinc with electroplating protection. Abrasion-proof materials ensure durability and long-term performance in high-traffic areas. Anti-residual magnetism design prevents disengagement issues during extended operation periods.

Dual-Door Holding Force

Each door receives 272kg holding force (544kg total capacity when secured). Electromagnetic force operation eliminates mechanical failure concerns. Signal output supports dry contact capability with maximum 3-ampere power rating. NO output activates while locking and NC output activates while unlocking automatically.

System Integration Capabilities

The Hikvision DS-K4H250D integrates seamlessly with professional access control platforms. Signal output enables integration with centralized security management systems. Pair this magnetic lock with POS systems and security hardware for comprehensive facility management. Video intercom systems enhance functionality for remote access verification capabilities across multiple entry points.

Warranty and Professional Support

Threeways Gadget Hub provides 24-month manufacturer warranty for every DS-K4H250D sold. Technical support specialists offer professional installation guidance and system integration assistance. Customer service addresses questions regarding compatibility, maintenance, and troubleshooting requirements. Extended warranty options protect your long-term security investment.

The DS-K4H250D delivers proven reliability in demanding security applications. Hard anodizing protection prevents environmental degradation and mechanical wear. Choose Threeways Gadget Hub for authentic Hikvision products backed by professional support. Browse monitor displays for surveillance integration to complete your security system.
