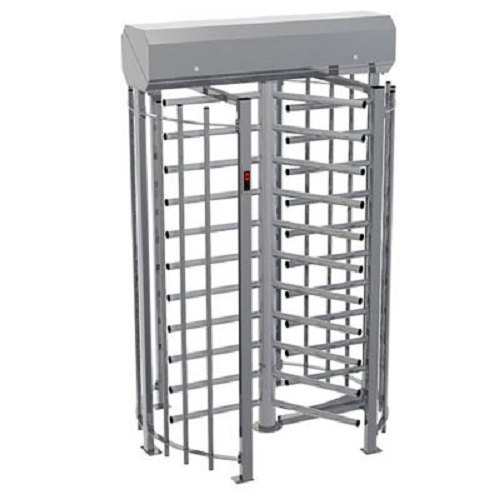

Hikvision DS-K3H4411-120 Pro Full Height Turnstile

Hikvision DS-K3H4411-120 Pro Full Height Turnstile delivers top-level access control for high-security environments. This full-height gate prevents unauthorized entry effectively. It suits outdoor installations with waterproof design. Facilities in Nairobi and Kenya enhance perimeter security. Operators manage pedestrian flow reliably. The turnstile provides maximum deterrence against tailgating.

The system features robust construction for long-term use. It supports bi-directional passage. Automatic unlocking occurs during power failure. LED indicators show passing direction clearly. Segmented installation simplifies maintenance.

Use Cases and Compatibility

This turnstile excels in demanding access scenarios. In industrial sites, control worker entry to restricted areas. Stadiums and event venues manage large crowds securely. Prisons and secure facilities prevent escapes or intrusions. Perimeter fences block unauthorized access. Logistics centers restrict loading zones.

The DS-K3H4411-120 supports multiple authentication methods. Integrate with card readers, fingerprint terminals, face recognition devices, and QR scanners. Pair with Hikvision access controllers for centralized management. Use relay outputs for integration with barriers or alarms. Enable bi-directional control for entry and exit.

Support valid passing duration settings. Cancel permission if no passage occurs in time. Apply anti-tailgating through full-height design. Operate outdoors with IP-rated protection. Mount on concrete bases for stability. Work in new builds or retrofit projects. Connect to HikCentral or iVMS software.

For premium access control in Kenya, visit Threeways Gadget Hub. Browse monitors for management stations.

Technical Specifications

General Parameters

• Application Environment: Indoor and outdoor
• Dimensions (Without Package): 1630 mm × 1580 mm × 2300 mm (64.2″ × 62.2″ × 90.6″)
• Dimensions (With Package): 2100 mm × 1270 mm × 2230 mm (approx., variant-dependent)
• Passageway Dimensions: Approx. 600-700 mm width (standard full-height)
• Material: High-strength steel with waterproof treatment
• Weight: Approx. 600-800 kg (net, depending on configuration)

Performance

• Throughput: Up to 30 persons/minute (depending on authentication)
• Motor: Brushless DC motor for smooth operation
• Unlock Time: Adjustable
• Passing Duration: Configurable timeout
• Power Failure Mode: Automatic unlock for free passage/evacuation

Interfaces and Features

• Authentication: Supports IC/ID card, fingerprint, face, QR code (via reader)
• Indicators: LED for passing direction (forbidden/available)
• Anti-Tailgating: High-standard full-height barrier
• Emergency: Power-off auto-unlock
• Additional: Valid passing duration settings, bi-directional passing

Power and Environment

• Power Supply: 100-240 VAC, 50/60 Hz
• Power Consumption: < 100 W typical
• Working Temperature: -20°C to 55°C (-4°F to 131°F)
• Working Humidity: 10% to 95% (non-condensing)
• Protection Level: Waterproof design (suitable for outdoor)

Key Features

• Full-height structure for maximum security
• Waterproof and segmented design for easy installation/maintenance
• LED direction indicators
• Automatic unlock on power cut-off
• High reliability for outdoor use

The turnstile uses durable materials to resist tampering. It includes safety features for emergency situations. Configuration occurs via control board or software.

Discover desktop computers at Threeways Gadget Hub for access management.

Reliable Performance and Support

Threeways Gadget Hub supplies genuine Hikvision turnstiles to Kenyan clients. The Hikvision DS-K3H4411-120 Pro Full Height Turnstile includes a manufacturer warranty against defects. Our Nairobi team offers expert support. Receive help with site survey, installation, integration, and maintenance. Access technical documentation and updates promptly. Depend on our expertise for high-security access deployments.

Refer to Hikvision’s full height turnstiles here, turnstile products here, and access control guidelines here.
