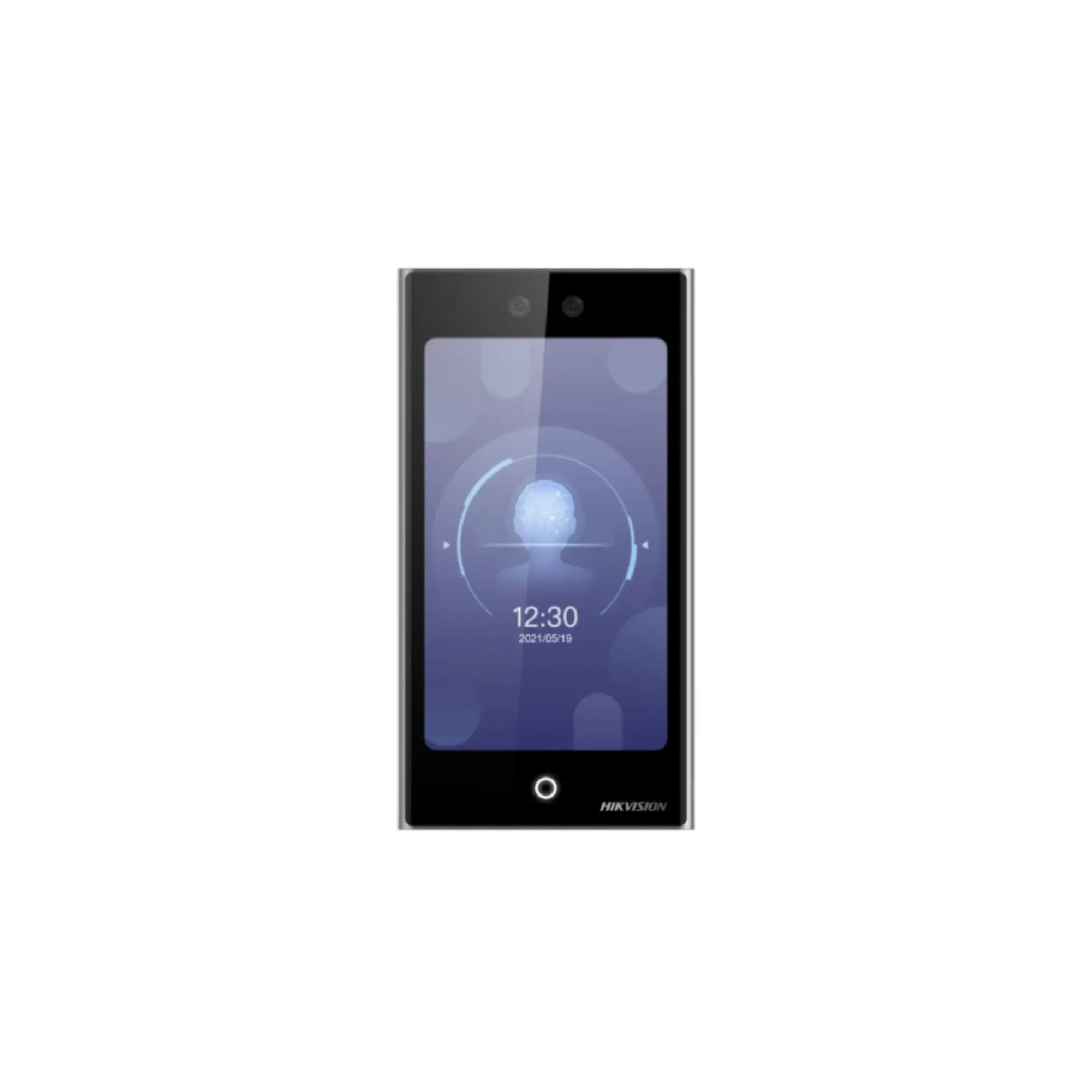

Hikvision DS-K1T673DWX Pro Face Access Terminal

Hikvision DS-K1T673DWX Pro Face Access Terminal provides advanced multi-biometric recognition with extended distance capabilities for superior security in Kenyan professional settings.

This high-performance terminal features a large 7-inch touchscreen display. It uses deep learning algorithms for precise detection. Enterprises, stations, factories, schools, campuses, and residential complexes in Nairobi deploy it for efficient access control, time attendance, and visitor management.

Achieve contactless verification. Handle diverse authentication needs. Maintain high accuracy outdoors. Hikvision DS-K1T673DWX Pro Face Access Terminal ensures fast, reliable protection across various applications.

Key Features of Hikvision DS-K1T673DWX Pro Face Access Terminal

Offer extended recognition range. Support multiple card types. Include face mask detection. Deliver robust environmental resistance.

Detailed Use Cases and Compatibility

Corporate headquarters use it at main entrances and secure floors for employee entry via face or card. Educational institutions track attendance for staff and students across campuses. Manufacturing plants control access to production areas with multi-person recognition up to 5 people.

Stations and public facilities manage high-volume visitor flow. Residential dwellings secure gated communities. The terminal operates standalone or networked for large-scale deployments.

It supports face recognition (1:N and 1:1), M1/Felica/DESFire cards, and PIN modes. The 2 MP wide-angle dual-lens camera enables recognition from 0.3 m to 3 m in under 0.2 seconds with over 99% accuracy. Face mask detection adds health compliance.

Connect via Gigabit Ethernet, Wi-Fi (2.4 GHz), RS-485 for secure door units, and Wiegand for controllers. Interfaces support lock control, exit buttons, door contacts, and alarms. Two-way audio integrates with client software, indoor stations, or Hik-Connect app.

Manage multiple units centrally with dedicated software on reliable systems. Find compatible desktop computers at Threeways Gadget Hub.

Technical Specifications

• Operating System: Linux
• Display: 7-inch IPS capacitive touchscreen, 600 × 1024 resolution
• Camera: 2 MP wide-angle dual-lens
• FOV: HFOV 75.5°, VFOV 41.5°, DFOV 87°
• Face Capacity: 10,000
• Fingerprint Capacity: 10,000 (with optional fingerprint module)
• Card Capacity: 50,000 (M1, Felica, DESFire cards, 13.56 MHz)
• Event Capacity: 150,000 records
• Authentication Methods: Face, card, PIN, combinations; supports multi-person (up to 5)
• Face Recognition Distance: 0.3 m to 3 m
• Face Recognition Duration: < 0.2 s/User
• Face Recognition Accuracy: ≥ 99%
• Card Reading Distance: 0 to 3 cm
• Network: 10/100/1000 Mbps Ethernet (RJ-45), Wi-Fi 2.4 GHz (802.11b/g/n)
• Interfaces: 1 × Network, 1 × Lock control, 1 × Exit button, 1 × Door contact input, 2 × Alarm input, 1 × Alarm output, 1 × TAMPER, 1 × RS-485 (Half duplex, HIKVISION), 1 × Wiegand (26/34 bit), 1 × USB, 1 × Audio output (3.5 mm)
• Power Supply: 12 VDC to 24 VDC, 2 A
• Power Consumption: Standard for series (efficient operation)
• Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Working Humidity: 0% to 90% (non-condensing)
• Protection Level: IP65 (dust-tight and water-resistant)
• Dimensions: 110.5 mm × 209.2 mm × 24 mm (4.35″ × 8.24″ × 0.94″)
• Additional: Face anti-spoofing, live view, two-way audio, ISAPI/ISUP 5.0 support

This configuration delivers exceptional reliability. The wide temperature tolerance and IP65 rating handle Kenya’s climate effectively.
