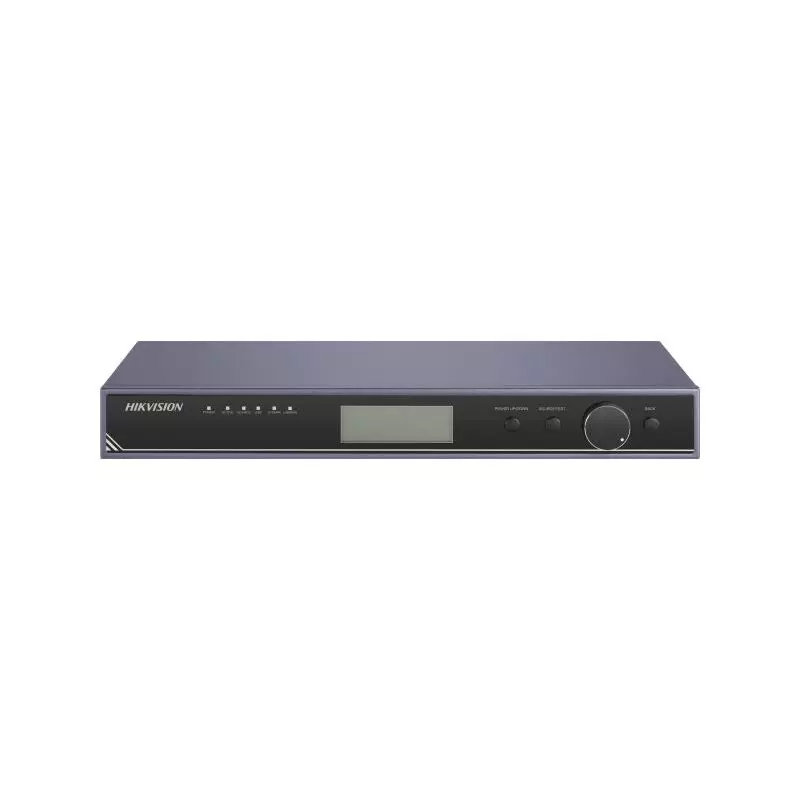

Hikvision DS-D42C20-H LED Controller

Hikvision DS-D42C20-H LED Controller manages large-scale LED displays with high performance. This controller processes video signals for seamless video walls. It supports up to 10 MP load capacity. Control rooms, stadiums, airports, and advertising sites in Nairobi and Kenya use it widely. Operators achieve synchronized multi-screen visuals. The device handles complex inputs and outputs effectively.

The controller features 20 Gigabit Ethernet output ports. It accepts high-resolution signals up to 4096 × 2160@60 Hz. 3D synchronization and audio access add versatility. Remote control and cloud upgrades simplify management. It ensures smooth playback with high refresh rates.

Use Cases and Compatibility

This controller suits demanding LED applications. In command centers, drive large video walls for surveillance monitoring. Stadiums display dynamic content during events. Airports show real-time information across screens. Banks and retail venues run advertisements smoothly. Family cinemas create immersive experiences.

The DS-D42C20-H supports 2 × HDMI 2.0 inputs for 4096 × 2160@60 Hz. It outputs via 20 Gigabit Ethernet ports. Load up to 13 million pixels total. Cascade multiple units for synchronization. Enable automatic signal search. Use 3D sync for immersive content. Access audio devices directly. Expand with light sensors without extra cards. Control via infrared or USB RF Wi-Fi. Integrate with Hikvision LED cabinets like DS-D40 series. Suit fixed indoor or semi-outdoor setups.

For professional LED solutions in Kenya, visit Threeways Gadget Hub. Browse monitors for complementary viewing.

Technical Specifications

Interfaces

• Video & Audio Input: 2 × HDMI 2.0
• Video & Audio Output: 1 × HDMI (live view), 20 × Gigabit Ethernet ports
• Control Interface: 2 × RJ45 (10M/100M/1000M adaptive)
• Additional: 3D sync in/out, light sensor expansion, infrared/USB RF Wi-Fi remote

Processing Performance

• Max. Load Capacity: 10 MP
• Max. Input Resolution: 4096 × 2160@60 Hz (HDMI/DP)
• Max. Bar Display Resolution: 24,000 × 256 pixels
• Frame Frequency: 60 Hz
• Refresh Rate: Up to 3840 Hz
• Processing Depth: 8/10 bit
• Grey Level: 16 bit
• Display Color: 281 trillion
• Brightness Control: 1-100 levels adjustable

General

• Power Supply: 100-240 VAC, 50/60 Hz
• Max. Consumption: 33 W
• Average Consumption: 30 W
• Working Temperature: 0°C to 40°C (32°F to 104°F)
• Working Humidity: 10% to 80% (non-condensing)
• Dimensions: 442 mm × 249.5 mm × 57 mm
• Net Weight: 4.25 kg

Key Features

• 20 Gigabit Ethernet output ports
• 3D synchronized signal support
• Light sensor expansion
• Dual-mode remote control
• Cloud upgrade capability
• Scene management and multi-controller cascade

The controller includes status indicators for power and sync. It supports automatic source search. High refresh ensures smooth video.

Discover desktop computers at Threeways Gadget Hub for content management.

Reliable Performance and Support

Threeways Gadget Hub supplies genuine Hikvision controllers to Kenyan clients. The Hikvision DS-D42C20-H LED Controller includes a manufacturer warranty against defects. Our Nairobi team provides expert support. Receive assistance with setup, cascading, configuration, and troubleshooting. Access firmware updates promptly. Depend on our expertise for high-resolution LED deployments.
