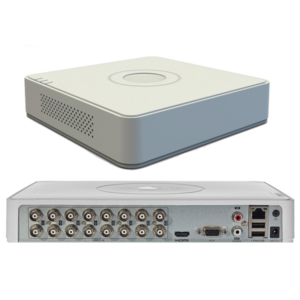

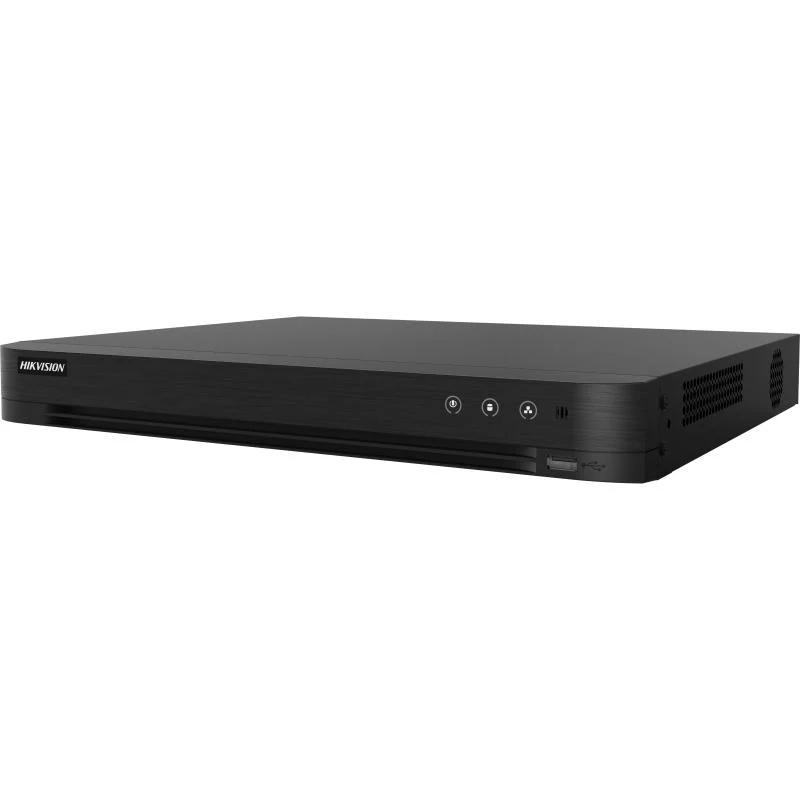

Hikvision DS-7216HGHI-M1 16-Channel DVR

Hikvision DS-7216HGHI-M1 16-Channel DVR offers extensive high-definition surveillance with deep learning motion detection and advanced H.265 Pro+ compression. This reliable 1U recorder suits large installations requiring comprehensive coverage, precise alerts, and seamless remote management.

Hikvision DS-7216HGHI-M1 16-Channel DVR Use Cases

The Hikvision DS-7216HGHI-M1 16-Channel DVR performs well in demanding settings. Large homes use it for full perimeter and interior monitoring. Retail malls deploy it across entrances, floors, and parking areas. Schools install it in hallways, playgrounds, and administrative zones. Factories apply it to production lines, warehouses, and loading bays.

Sixteen analog channels provide thorough coverage. Users monitor multiple high-risk areas simultaneously. Commercial sites achieve gap-free protection efficiently.

Hybrid capability supports mixed camera types. Installers retain existing analog cameras while adding IP models. This method enables gradual upgrades without full replacement.

Audio over coaxial cables enhances interactivity. Staff communicate with visitors or issue warnings directly.

Hikvision DS-7216HGHI-M1 16-Channel DVR Compatibility

The Hikvision DS-7216HGHI-M1 16-Channel DVR handles various formats. It accepts HDTVI, AHD, HDCVI, CVBS analog cameras, and IP cameras up to 5 MP.

Default adds two IP channels. Enhanced mode expands to eighteen total channels.

Analog channels support audio transmission over coaxial cables. Compatible cameras deliver clear sound without extra wiring.

Remote access works through the Hik-Connect app. Users view live feeds and playback on smartphones effortlessly.

Long transmission distance reaches 1200 meters for 720p HDTVI signals. Installers cover expansive sites reliably.

Hikvision DS-7216HGHI-M1 16-Channel DVR Key Advantages

Motion Detection 2.0 uses deep learning algorithms. It classifies humans and vehicles accurately. False alarms from rain, insects, or lights decrease sharply.

H.265 Pro+ compression reduces storage requirements greatly. Users archive extended footage on single drives. This efficiency lowers operational costs.

The 1U chassis fits standard racks neatly. HDMI and VGA outputs operate simultaneously for versatile display options.

Smart search simplifies event retrieval. Operators filter by human or vehicle activity quickly.

Technical Specifications

Video and Audio

• Analog Video Input: 16-ch BNC (1.0 Vp-p, 75 Ω), supports coaxitron
• HDTVI/AHD/HDCVI Input: 1080p25/30, 720p25/30
• CVBS Input: PAL/NTSC
• IP Video Input: 2-ch (up to 18-ch), up to 5 MP resolution
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution: 1080p Lite/720p/VGA/WD1/4CIF/CIF
• Audio Input: 1-ch RCA + audio via coaxial cable
• Audio Output: 1-ch RCA
• Two-Way Audio: 1-ch RCA (reuses audio input)

Recording and Playback

• Frame Rate: 1080p Lite@15 fps; higher for lower resolutions
• Synchronous Playback: 16-ch
• Smart Search: Human/vehicle classification

Network

• Network Interface: 1 × RJ45 10/100 Mbps self-adaptive
• Remote Connections: Up to 128 users
• Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, HTTPS, ONVIF

Storage

• SATA Interface: 1 × SATA
• Capacity: Up to 10 TB per disk

Interface

• Video Output: 1-ch HDMI + 1-ch VGA (simultaneous)
• USB Interface: 2 × USB 2.0

General

• Power Supply: 12 VDC, 1.5 A
• Consumption: ≤ 18 W (without HDD)
• Working Temperature: -10 °C to +55 °C
• Dimensions (W × D × H): 260 × 222 × 45 mm
• Weight: ≤ 2.2 kg (without HDD)
