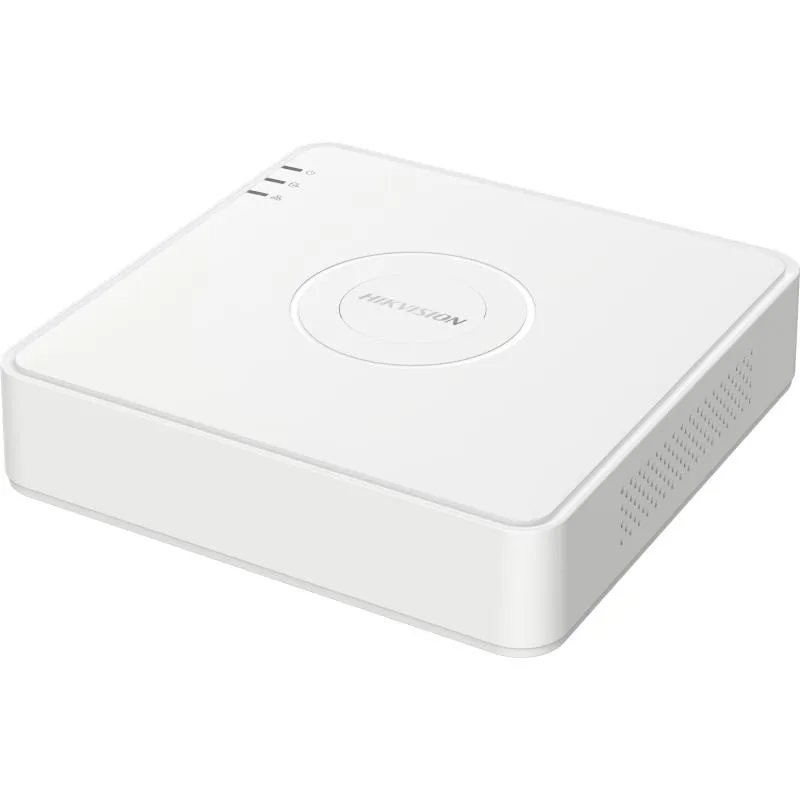

Hikvision DS-7108HGHI-M1/T 8-Channel DVR

Hikvision DS-7108HGHI-M1/T 8-Channel DVR
Hikvision DS-7108HGHI-M1/T 8-Channel DVR provides robust high-definition surveillance with intelligent motion detection and superior compression. This versatile recorder fits medium-sized setups needing reliable video capture, smart notifications, and seamless remote management.

Hikvision DS-7108HGHI-M1/T DVR Use Cases
The Hikvision DS-7108HGHI-M1/T 8-Channel DVR excels in diverse settings. Homeowners deploy it for perimeter monitoring around larger properties. Retail stores use it to cover multiple sales floors and entrances. Small offices apply it for employee areas and parking lots. Restaurants install it to watch dining halls and kitchens.
This device handles eight analog channels effectively. Users connect cameras to key zones without gaps. Medium businesses benefit from expanded coverage compared to smaller units.
Hybrid capability supports mixed camera types. Installers mix existing analog cameras with new IP models. This approach saves costs during system upgrades.

Hikvision DS-7108HGHI-M1/T DVR Compatibility
The Hikvision DS-7108HGHI-M1/T 8-Channel DVR accepts multiple signal formats. It works with HDTVI, AHD, HDCVI, CVBS analog cameras, and IP cameras. Users add up to two IP channels by default, expandable to ten.
All eight analog channels support two-way audio via compatible HDTVI cameras. Staff communicate directly with visitors over coaxial cables.
Remote access functions through the Hik-Connect app. Users view live feeds on smartphones from anywhere. The app supports iOS and Android platforms.

Hikvision DS-7108HGHI-M1/T DVR Key Advantages
Motion Detection 2.0 employs deep learning algorithms. It distinguishes humans and vehicles accurately. False alerts from rain, insects, or lights decrease significantly.
H.265 Pro+ compression reduces file sizes greatly. Users store more footage on the same hard drive. This efficiency lowers long-term storage expenses.
The mini 1U design saves rack space. HDMI and VGA outputs connect to various displays simultaneously. Dual output aids multi-monitor control rooms.

Technical Specifications
Video and Audio

Analog Video Input: 8-ch BNC (1.0 Vp-p, 75 Ω), supports coaxitron
HDTVI Input: 1080p@25/30 fps, 720p@25/30 fps
AHD Input: 1080p@25/30 fps, 720p@25/30 fps
HDCVI Input: 1080p@25/30 fps, 720p@25/30 fps
CVBS Input: Supported
IP Video Input: 2-ch (up to 10-ch), up to 5 MP resolution
Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
Audio Input: 1-ch RCA + 8-ch via coaxial cable
Audio Output: 1-ch RCA
Two-Way Audio: Supported (reuses audio input)

Recording and Playback

Recording Frame Rate: Up to 15 fps for 1080p Lite
Synchronous Playback: 8-ch
Smart Search: By human/vehicle events

Network

Network Interface: 1 × RJ45 10/100 Mbps
Total Bandwidth: 72 Mbps
Remote Connections: Up to 64 users
Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, HTTPS

Storage

SATA Interface: 1 × SATA
Capacity: Up to 4 TB per disk

Interface

Video Output: 1-ch HDMI + 1-ch VGA (simultaneous)
USB Interface: 2 × USB 2.0

General

Power Supply: 12 VDC, 1.5 A
Consumption: ≤ 10 W (without HDD)
Working Temperature: -10 °C to +55 °C
Dimensions (W × D × H): 200 × 200 × 48 mm
Weight: ≤ 1 kg (without HDD)
