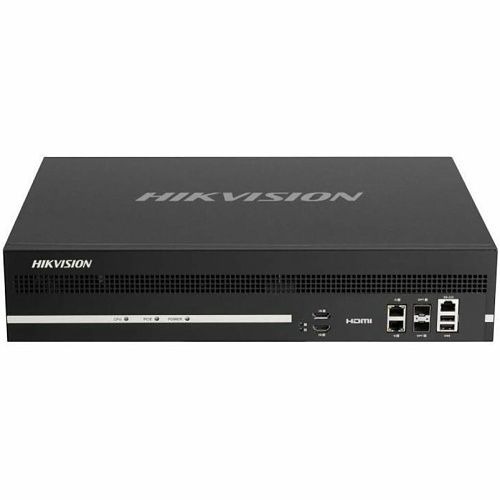

Hikvision DS-6916UDI(C) 4K Decoder

Hikvision DS-6916UDI(C) 4K Decoder enables powerful video decoding for large-scale surveillance displays. This advanced unit handles high-resolution streams efficiently. It outputs to multiple screens with sharp detail. Command centers in Nairobi and Kenya benefit from clear visuals. Security teams monitor extensive camera networks. Operators manage video walls seamlessly. The decoder supports demanding environments reliably.

The device decodes multiple formats including H.265 and H.264. It manages up to 256 channels. HDMI outputs deliver 4K quality. Frame synchronization ensures smooth playback. Integration with Hikvision systems enhances performance. Remote access simplifies management.

Use Cases and Compatibility

This decoder fits large video wall installations. In control rooms, display feeds from numerous IP cameras. Public safety centers view city-wide surveillance. Corporate security operations monitor facilities. Transport hubs track passenger areas. Retail chains oversee multiple stores.

Decode up to 128-ch 1080p or 256-ch 720p simultaneously. Support 32-ch 8MP or 16-ch 12MP. Handle up to 8-ch 24MP streams. Output via 16 HDMI ports at 4K@30Hz. Use 8 BNC outputs for analog displays. Input HDMI signals for local sources like computers or conference terminals. Accept 2-ch 1080p or 1-ch 4K via HDMI 1.4.

Connect network cameras, NVRs, and encoders. Support ONVIF and GB28181 protocols. Integrate third-party devices. Manage via web browser or iVMS-4200 software. Enable window roaming, scene switching, and splicing. Use for video wall control in new or upgraded setups.

For professional surveillance gear in Kenya, visit Threeways Gadget Hub. Pair with monitors for display arrays.

Technical Specifications

Video Decoding

• Decoding Channels: Up to 256
• Decoding Capability: 24MP@30fps: 8-ch, 12MP@20fps: 16-ch, 8MP@30fps: 32-ch, 5MP@30fps: 48-ch, 3MP@30fps: 80-ch, 1080p@30fps/3 Mbps: 128-ch, 720p: 256-ch
• Supported Formats: H.265+/H.265, H.264+/H.264, H.264, MJPEG, Smart264, Smart265
• Encapsulation: PS, RTP, TS, ES, HIK
• Audio Decoding: G.722, G.711A/U, G.726, MPEG2-L2, AAC

Interfaces

• Network: 2 × RJ45 10/100/1000 Mbps adaptive, 2 × optical 100/1000 Mbps (combo ports)
• Video Output: 16 × HDMI 1.4 (4K@30Hz on odd ports), 8 × BNC (via DB15)
• Video Input: HDMI 1.4 (2-ch 1080p@50/60Hz or 1-ch 4K@30Hz)
• Audio: Embedded HDMI, external support
• Alarm In: 8 channels
• Other: RS-232, USB

General

• Power Supply: 100-240 VAC, 50/60 Hz
• Power Consumption: Max. approx. 120 W (varies by load)
• Working Temperature: 0°C to 55°C (32°F to 131°F)
• Working Humidity: 10% to 90% (non-condensing)
• Dimensions: Rack-mountable (refer to datasheet for exact)
• Installation: 19-inch rack

The unit uses frame sync technology. It prevents tearing or lag. Support split screens up to 1/4/6/8/9/12/16/25/36. Enable PTZ control and two-way audio.

Explore desktop computers at Threeways Gadget Hub for management stations.

Reliable Performance and Support

Threeways Gadget Hub supplies authentic Hikvision decoders to Kenyan markets. The Hikvision DS-6916UDI(C) 4K Decoder includes a manufacturer warranty against defects. Our Nairobi team offers expert assistance. Receive help with configuration, integration, video wall setup, and troubleshooting. Access firmware updates promptly. Depend on our expertise for high-performance decoding solutions.

Refer to Hikvision’s decoder products here, display and control solutions here, and security guidelines here.

Enhance your control room with printers or tablets from our selection.
