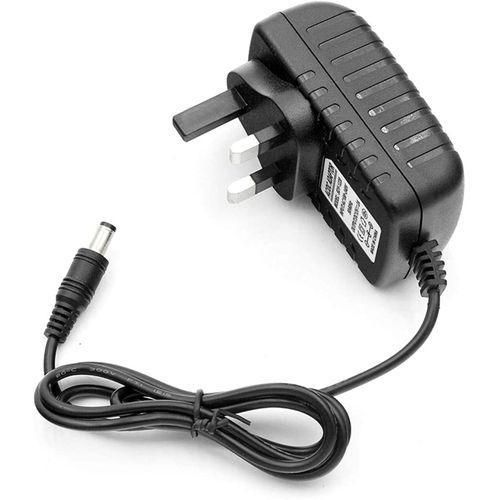

Hikvision DS-2PW1A8-B Power Adapter (DC 12 V 2 A)

Hikvision DS-2PW1A8-B Power Adapter (DC 12 V 2 A) supplies stable and reliable power to security devices. This compact adapter delivers 12 V DC output at 2 A current. It suits cameras, NVRs, and other low-power equipment in Nairobi and Kenya. Installers achieve consistent performance without voltage drops. The adapter provides safe operation with built-in protections. It ensures uninterrupted surveillance in various setups.

The power supply features a standard barrel connector. It includes over-voltage, over-current, and short-circuit protection. Lightweight design allows easy mounting. The adapter meets international safety standards. It delivers clean power for sensitive electronics.

Use Cases and Compatibility

This power adapter fits a wide range of Hikvision products. In residential installations, power bullet and turret cameras reliably. Small offices use it for IP cameras and mini NVRs. Retail shops connect multiple entry-point cameras. Warehouses power PTZ or fixed cameras in remote locations. Commercial buildings supply power to access control readers or intercoms.

The DS-2PW1A8-B provides 12 V DC / 2 A output. Compatible with most Hikvision IP cameras (DS-2CD series bullet/turret), PTZ cameras, and DVR/NVR models requiring 12 V input. Use with non-PoE cameras or when PoE switches are unavailable. Connect via DC barrel plug (5.5 mm × 2.1 mm). Replace original adapters or extend cable runs. Work in indoor and semi-outdoor environments. Suit new camera installations or replacements.

Ensure proper polarity (positive tip). Avoid overloading beyond 2 A rating. Use in temperatures from 0°C to 40°C typical.

For dependable power solutions in Kenya, visit Threeways Gadget Hub. Browse monitors for surveillance stations.

Technical Specifications

Power Output

• Output Voltage: 12 V DC ±5%
• Output Current: 2 A
• Power Rating: 24 W maximum

Input

• Input Voltage: 100–240 VAC, 50/60 Hz
• Input Current: 0.5 A maximum

Protection Features

• Over-voltage protection
• Over-current protection
• Short-circuit protection
• Over-temperature protection

General

• Connector Type: DC barrel plug (5.5 mm × 2.1 mm, center positive)
• Cable Length: Approx. 1.2–1.5 m (typical)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 20% to 85% (non-condensing)
• Dimensions (approx.): 80 mm × 50 mm × 30 mm (adapter body)
• Weight: Approx. 150–200 g
• Certification: CE, FCC, RoHS compliant

Key Features

• Stable 12 V DC / 2 A output
• Universal 100–240 VAC input
• Multiple built-in protection circuits
• Compact and lightweight design
• Standard DC barrel connector

The adapter uses efficient switching technology. It reduces heat buildup. Reliable performance supports continuous operation.

Discover desktop computers at Threeways Gadget Hub for NVR and management systems.

Reliable Performance and Support

Threeways Gadget Hub supplies genuine Hikvision power adapters to Kenyan clients. The Hikvision DS-2PW1A8-B Power Adapter (DC 12 V 2 A) includes a manufacturer warranty against defects. Our Nairobi team provides expert support. Receive help with compatibility verification, cable selection, installation, and troubleshooting. Access prompt assistance for maintenance. Depend on our expertise for stable power delivery.
