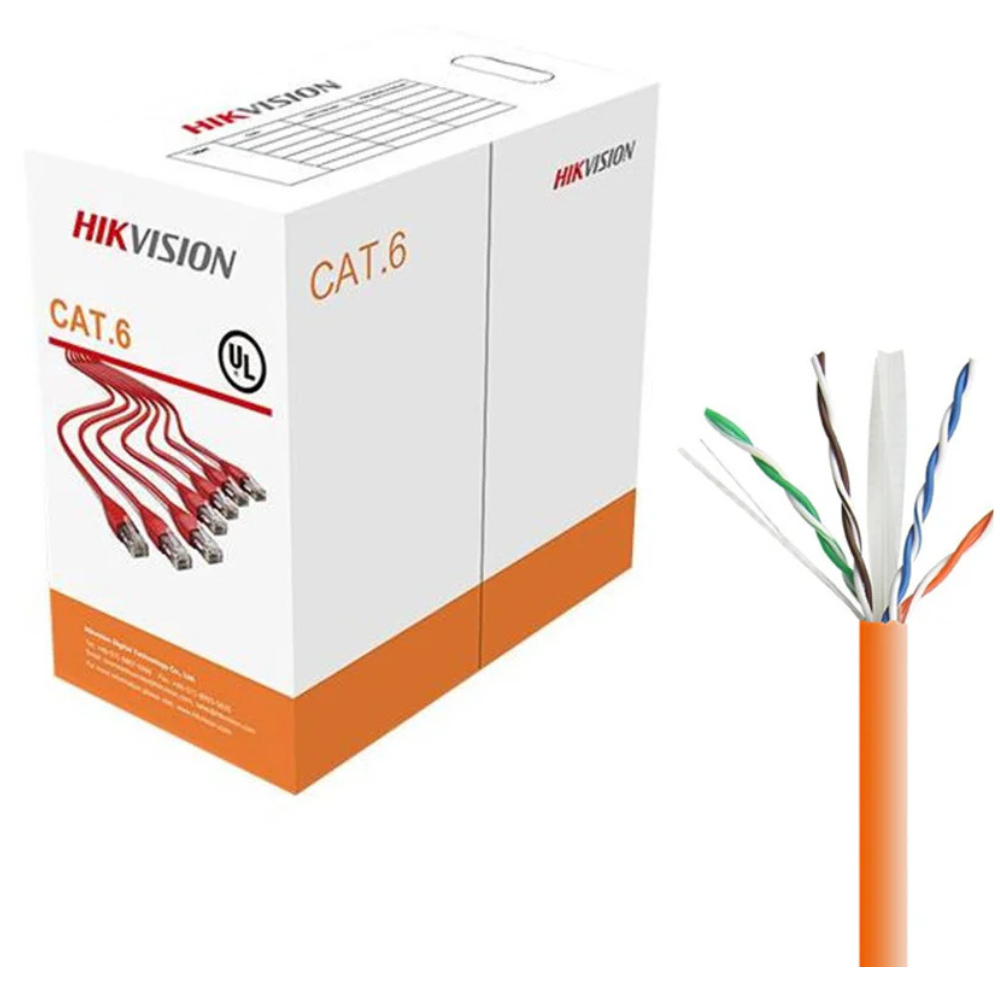

Hikvision DS-1LN6UZC0(O-STD) Orange 305m

Hikvision DS-1LN6UZC0 Orange 305m

Hikvision DS-1LN6UZC0 Orange 305m delivers dependable performance for professional networking installations. This high-quality CAT6 cable supports rapid data transmission across various environments. Therefore, it remains a preferred choice among installers in Kenya who require consistent reliability.

Versatile Use Cases and Broad Compatibility for Hikvision DS-1LN6UZC0 Orange 305m

First, offices benefit greatly from this cable. Installers connect computers directly to switches without signal degradation. Additionally, they link routers to multiple access points seamlessly. Moreover, the cable supports full Gigabit Ethernet speeds reaching 1000 Mbps. As a result, it handles modern bandwidth demands effectively.

Furthermore, Power over Ethernet applications perform exceptionally well. For instance, the cable powers IP cameras over long distances. Similarly, it supplies energy to VoIP phones and wireless access points. Consequently, businesses reduce the need for separate power lines.

In residential settings, homeowners integrate smart devices effortlessly. Likewise, small offices and large corporate installations rely on its stability. The distinctive orange color simplifies identification during maintenance. Therefore, technicians trace connections quickly and avoid confusion.

Moreover, the cable minimizes crosstalk and maintains signal integrity. Thus, it ensures low latency for video surveillance systems. Finally, pairing it with standard RJ45 connectors guarantees broad compatibility.

For complementary networking equipment, visit the Threeways Gadget Hub main site.

Detailed Technical Specifications for Hikvision DS-1LN6UZC0 Orange 305m

Category and Structure Category: Cat6 Type: U/UTP (Unshielded Twisted Pair) Fire Rating: CPR Fca Application: Indoor use Total Length: 305 ± 1.5 meters

Conductor Details Material: Solid bare copper (99.95% purity) Gauge: 24 AWG Diameter: 0.50 ± 0.01 mm

Insulation Properties Material: High-density polyethylene (HDPE) Diameter: 0.88 ± 0.05 mm

Outer Sheath Material: Durable PVC Color: Vibrant orange Diameter: Approximately 6.00 mm Thickness: 0.50 ± 0.10 mm Features: Rip-cord included, internal separator present

Compliance and Standards ANSI/TIA-568.2-D IEC61156 ISO/IEC 11801 RoHS 2.0 directive

Electrical Performance Bandwidth: Up to 250 MHz Tested: Fluke 90-meter permanent link at 50°C PoE Capability: Supports 57 V / 1 A DC continuous DC Resistance: ≤ 9.38 Ω per 100 meters Delay Skew: ≤ 45 ns per 100 meters Characteristic Impedance: 100 ± 15 Ω

Environmental Specifications Operating Temperature: -20°C to 75°C Maximum Voltage: 60 V

In addition, the solid copper construction lowers resistance significantly. As a result, transmission quality stays superior over extended runs. For further information on industry standards, refer to TIA Online.

Why Professionals Trust Hikvision DS-1LN6UZC0 Orange 305m

This cable offers outstanding durability during installation. For example, it withstands repeated pulling without damage. Additionally, the high-purity copper conductor enhances conductivity. Consequently, PoE devices operate reliably without voltage drop.

Moreover, the vivid orange sheath improves cable management in racks. Therefore, technicians complete troubleshooting faster. Hikvision maintains a strong reputation for quality. Thus, customers experience consistent performance year after year.

Furthermore, the cable passes rigorous high-temperature testing. As a result, it suits warm Kenyan environments perfectly. Installers also appreciate the future-proof design. Therefore, networks remain stable as bandwidth needs grow.

Explore matching accessories in the monitors category at Threeways Gadget Hub.

We back every purchase with confidence. Hikvision DS-1LN6UZC0 Orange 305m includes the manufacturer’s warranty. Moreover, our Nairobi-based support team provides prompt assistance. In addition, we offer expert advice on installation and compatibility. Consequently, you enjoy complete peace of mind.

This reliable cable supports evolving network requirements. Therefore, choose it for long-term value and performance.

• Supports full Gigabit Ethernet speeds
• Excellent continuous PoE performance
• High-purity solid bare copper conductors
• Proven stability at elevated temperatures
• Compliant with international standards
